| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.05mm*330 Nylon Served Copper Litz Wire For Transformer / Motor Winding | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.05mm*330 Nylon Served Copper Litz Wire For Transformer / Motor Winding |
| No. Of Strands: | 330 | ||
| Highlight: | motor winding solderable enamelled copper wire,0.05mm self solderable copper wire,ustc self solderable copper wire |
||

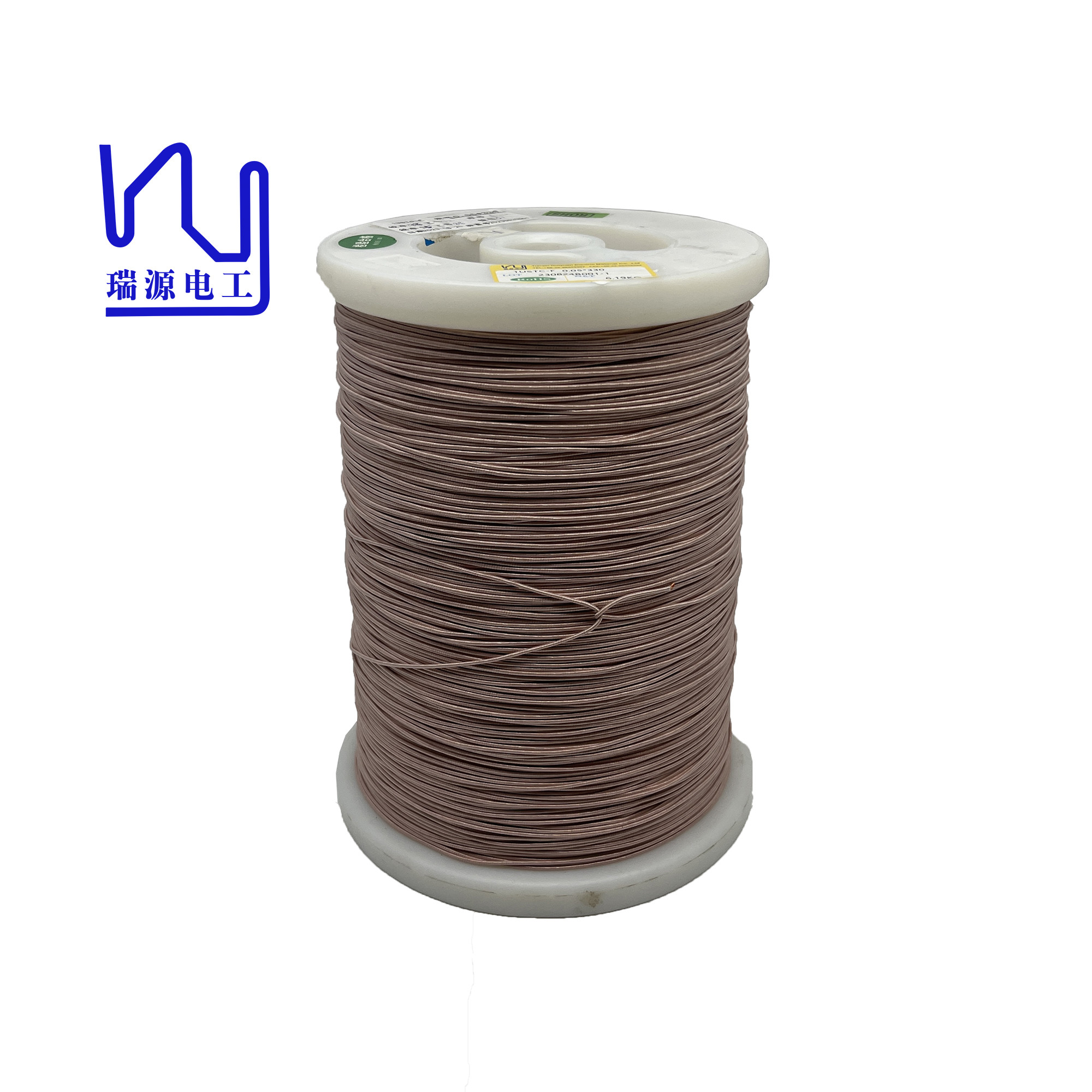

0.05mm*330 Nylon Served Copper Litz Wire for Transformer / Motor Winding
This Silk covered litz wire undergoes strict control during the production process to ensure its quality and reliability.
1.High-quality ultra-fine enameled copper wire is selected as the raw material. This wire is thin and soft, and has good welding performance, which can ensure the smooth conduction of current.
2.Through the stranding process, 300 strands of thin wires are twisted into one wire, making the Litz wire highly flexible and tensile strength, which is convenient for wiring installation and maintenance.
|
Description Conductor diameter*Strand number |
1USTC-F 0.05*330 |
|
|
Single wire |
Conductor diameter(mm) | 0.050 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.005 | |
| Maximal overall diameter (mm) | 0.086 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 66*5 |
| Pitch(mm) | 29±5 | |
| Stranding direction | Z | |
|
Insulation layer |
Category | Polyester yarn |
| UL | / | |
| Material specs(mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D (mm) | 1.55 |
| Max pin holes faults/6m | 36 | |
| Max resistance (Ω/Km at20℃) | 31.03 | |
| Mini breakdown voltage (V ) | 1300 | |
| Meter per kilogram | 166 | |
|
Key word |
1USTC-F 0.05mm/ 300 Nylon Served Stranded Copper Wire Silk Covered Litz Wire |
||
