| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | UL Certified 0.1mm*600 Strands USTC Silk Covered Litz Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | UL Certified 0.1mm*600 Strands USTC Silk Covered Litz Copper Wire |
| No. Of Strands: | 600 | ||
| Highlight: | multi strands ustc litz wire,0.1mm ustc litz wire,0.1mm enamel covered wire |
||

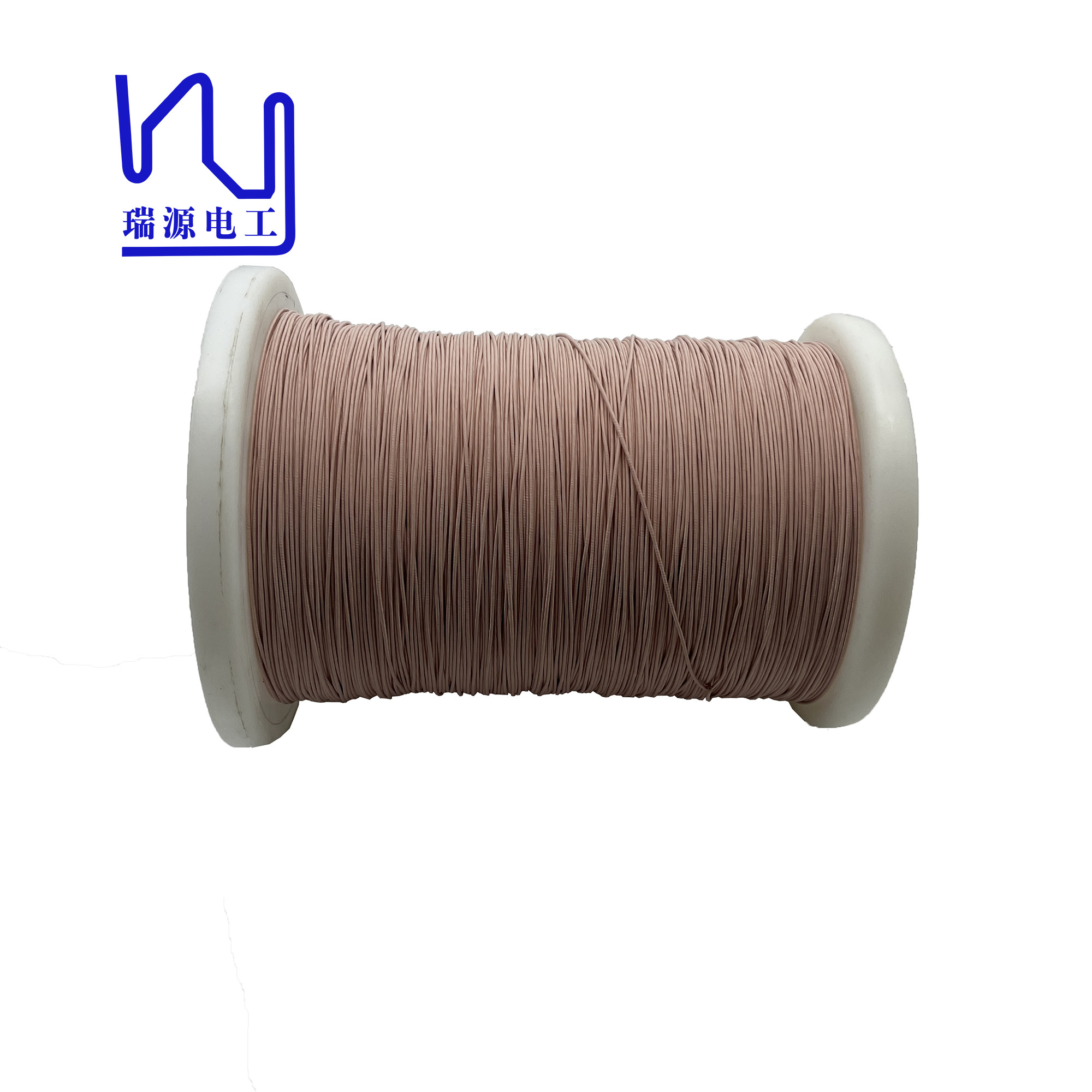

UL Certified 0.1mm*600 Strands USTC Silk Covered Litz Copper Wire
As the demand for new energy vehicles such as electric vehicles and hybrid vehicles surges, nylon copper litz wire plays a vital role in providing efficient and reliable power to different vehicle components.
From battery systems to electric motors and charging infrastructure, our custom nylon copper litz wire can be customized to specific requirements such as single wire diameter, strand count or resistance.
We are committed to providing excellent customization services, allowing small batch production to meet our customers' unique needs.
|
Description Conductor diameter*Strand number |
2UDTC- F 0. 10*600 |
|
|
Single wire |
Conductor diameter(mm) | 0 . 100 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0 .005 | |
| Maximal overall diameter (mm) | 0 . 125 | |
| Thermal Class(℃) | 155 | |
|
Strand Composition |
Strand number (strands) | 100*6 |
| Pitch(mm) | 65± 10 | |
| Stranding direction | S | |
|
Insulation layer |
Category | Nylon |
| UL | / | |
| Material specs(mm* mm or D) | 300+300 | |
| Times of Wrapping | 2 | |
| Overlap(%) or thickness(mm) , mini | 0.05 | |
| Wrapping direction | Z ,S | |
|
Characteristics |
Max O. D (mm) | 3 .78 |
| Max pin holes 个/6 m | 98 | |
| Max resistance ( Ω/Km at20℃) | 3.968 | |
| Mini breakdown voltage (V ) | 1100 | |
|
Key word |
UL Certified 0.1mm*600 Strands USTC Silk Covered Litz Copper Wire |
||
