| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Silk Covered Insulated Solid Nylon Uew/ployester Magnet USTC Litz Copper Wire For Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Silk Covered Insulated Solid Nylon Uew/ployester Magnet USTC Litz Copper Wire For Transformer |
| No. Of Strands: | 600 | ||
| Highlight: | silk covered ustc litz wire,transformer ustc litz wire,enameled magnet wire 0.1mm |
||

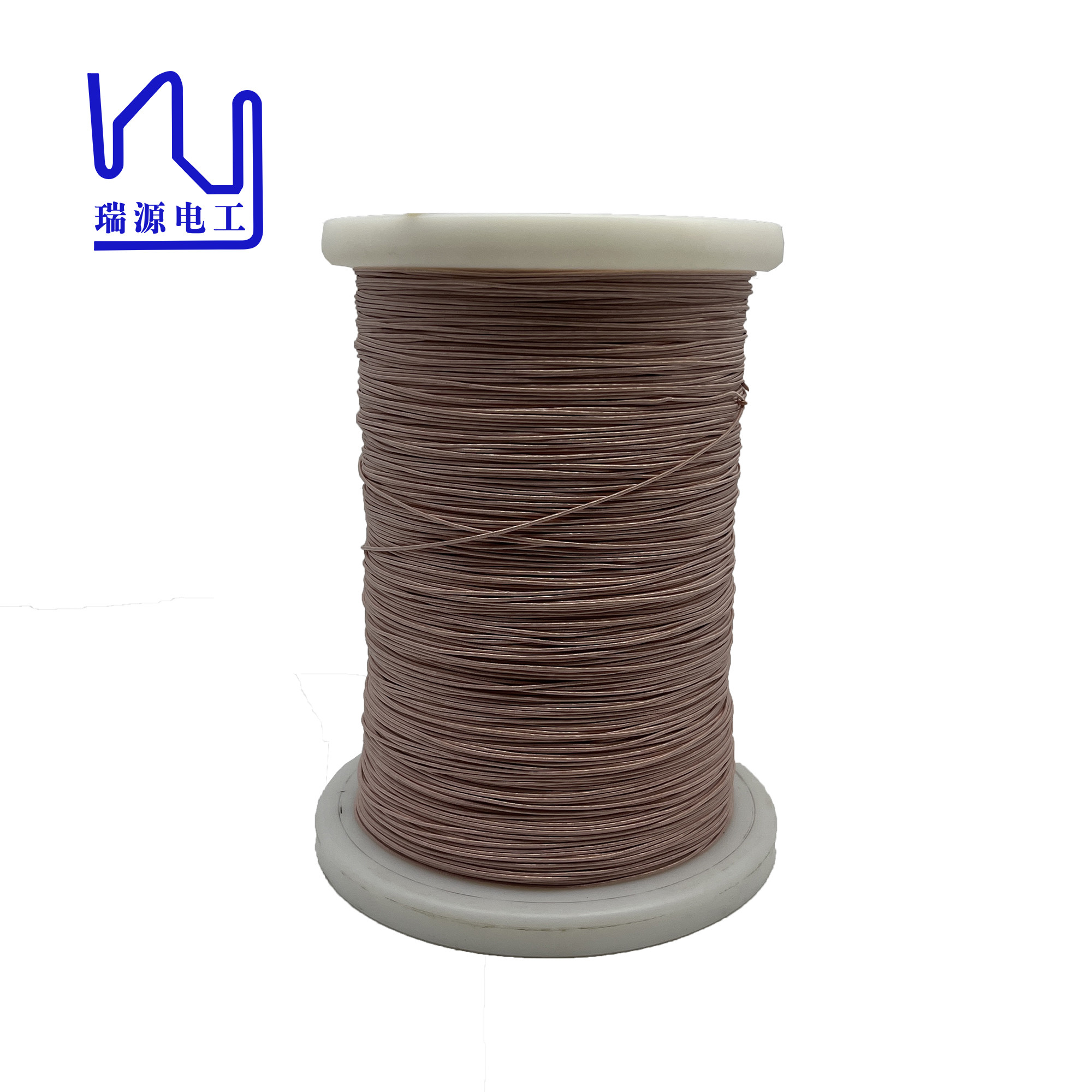

Silk Covered Insulated Solid Nylon Uew/ployester Magnet USTC Litz Copper Wire for Transformer
With a single wire diameter of 0.1 mm (38 AWG) and a strand count of 600, our Nylon served Copper Litz Wire is designed to provide exceptional performance. this protective nylon yarn not only enhances durability, but also provides excellent wear resistance, ensuring a longer service life even in harsh environments.
Our Nylon Copper Litz Wire can withstand high temperatures and is available in temperature ratings of 155 degrees and 180 degrees, making it ideal for a variety of applications.
|
Description Conductor diameter*Strand number |
2UDTC- F 0. 10*600 |
|
| Single wire | Conductor diameter(mm) | 0 . 100 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0 .005 | |
| Maximal overall diameter (mm) | 0 . 125 | |
| Thermal Class(℃) | 155 | |
| Strand Composition | Strand number (strands) | 100*6 |
| Pitch(mm) | 65± 10 | |
| Stranding direction | S | |
|
Insulation layer |
Category | Nylon |
| UL | / | |
| Material specs(mm* mm or D) | 300+300 | |
| Times of Wrapping | 2 | |
| Overlap(%) or thickness(mm) , mini | 0.05 | |
| Wrapping direction | Z ,S | |
|
Characteristics |
Max O. D (mm) | 3 .78 |
| Max pin holes 个/6 m | 98 | |
| Max resistance ( Ω/Km at20℃) | 3.968 | |
| Mini breakdown voltage (V ) | 1100 | |
| Key word | UL Certified 0.1mm*600 Strands USTC Silk Covered Litz Copper Wire | ||
|
Key word |
Silk Covered Insulated Solid Nylon Uew/ployester Magnet USTC Litz Copper Wire for Transformer |
||
