| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.1mm X 75 Nylon Covered UDTC Silk Covered Litz Wire For Transformer Winding | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.1mm X 75 Nylon Covered UDTC Silk Covered Litz Wire For Transformer Winding |
| No. Of Strands: | 75 | ||
| Highlight: | 0.1 mm ustc litz wire,transformer winding ustc litz wire,transformer winding silk covered wire |
||

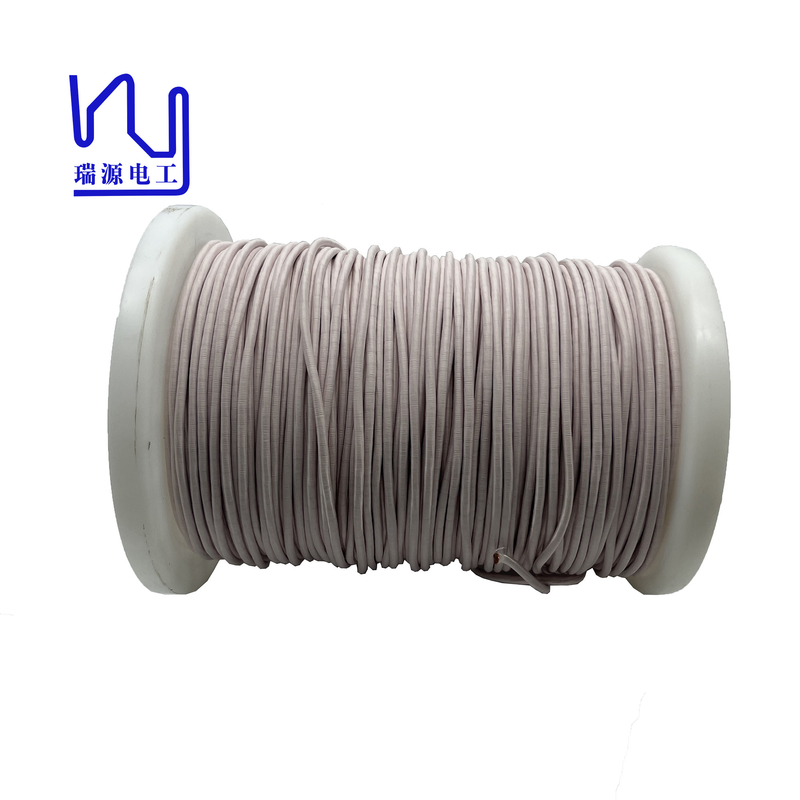

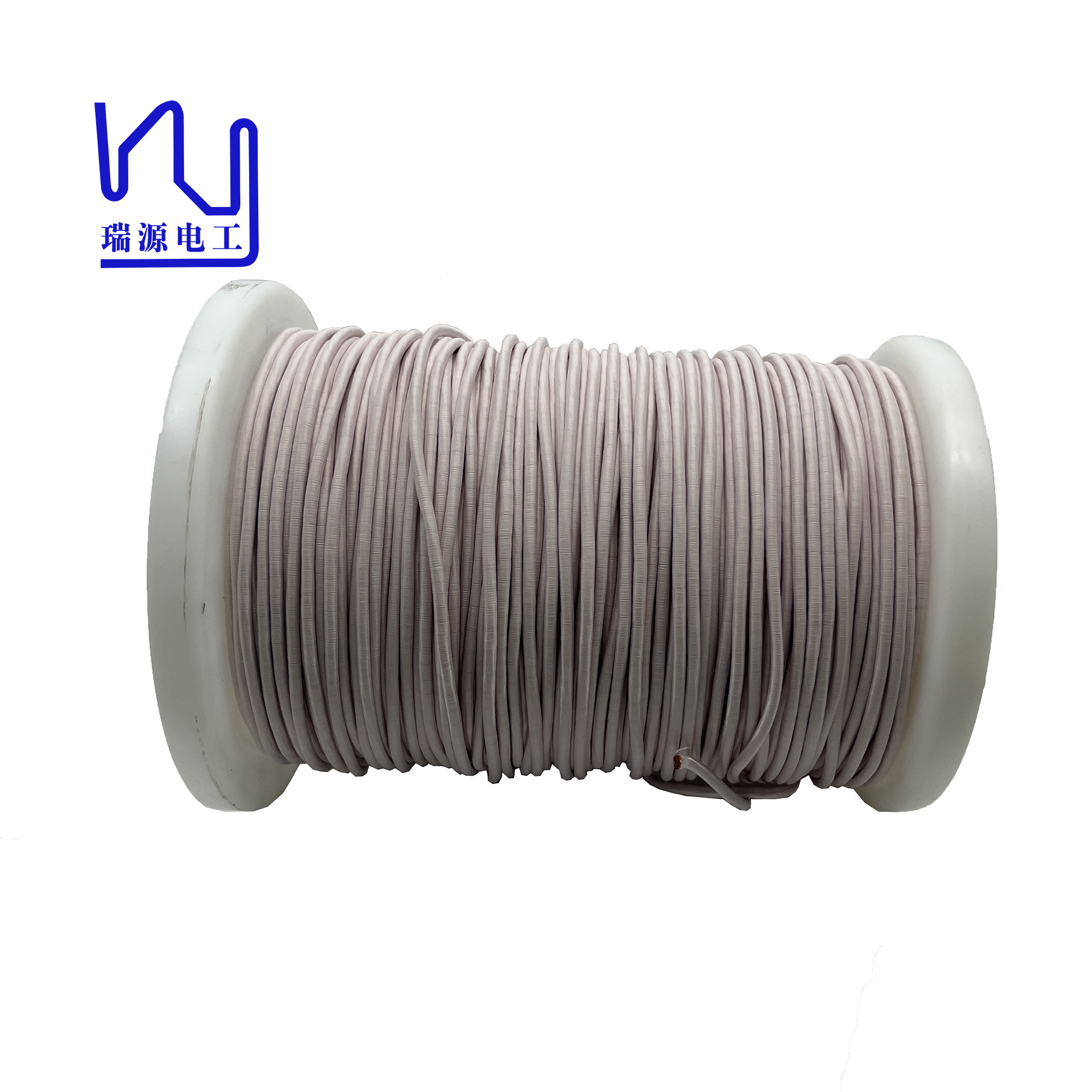

0.1mm x 75 Nylon Covered UDTC Silk Covered Litz Wire For Transformer Winding
Silk covered litz wire has low resistance and excellent conductivity, ensuring minimal signal loss during transmission. Its high thermal stability and resistance to mechanical stress ensure long-lasting performance even in demanding environments.
If you are looking for a wire that guarantees excellent signal transmission efficiency, then silk covered litz wire is the ideal choice.
|
Description Conductor diameter*Strand number |
1 USTC- F 0.10*75 |
|
|
Single wire |
Conductor diameter( mm) | 0. 100 |
| Conductor diameter tolerance ( mm) | ±0.003 | |
| Minimal insulation thickness( mm) | 0.009 | |
| Maximal overall diameter ( mm) | 0. 140 | |
| Thermal Class(℃) | 155 | |
|
Strand |
Strand number | 75 |
| Pitch(mm) | 29± 5 | |
| Stranding direction | S | |
|
|
Category | Nylon |
| Material specs( mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%)or thickness( mm), mini | 0 02 | |
| Wrapping direction | S | |
|
|
Max O. D ( mm) | 1.33 |
| Max pin holes faults/6m | 20 | |
| Max resistance ( Ω/ Km at20℃) | 31.75 | |
| Mini breakdown voltage(V ) | 2000 | |
|
Key word |
0.1mm x 75 Nylon Covered UDTC Silk Covered Litz Wire For Transformer Winding |
||
