| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Silk Covered Utsc High Frequency Litz Wire 0.1 * 75mm With Copper Conductor | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Silk Covered Utsc High Frequency Litz Wire 0.1 * 75mm With Copper Conductor |
| No. Of Strands: | 75 | ||
| Highlight: | utsc high frequency litz wire,copper conductor high frequency litz wire,utsc litz wire high frequency |
||

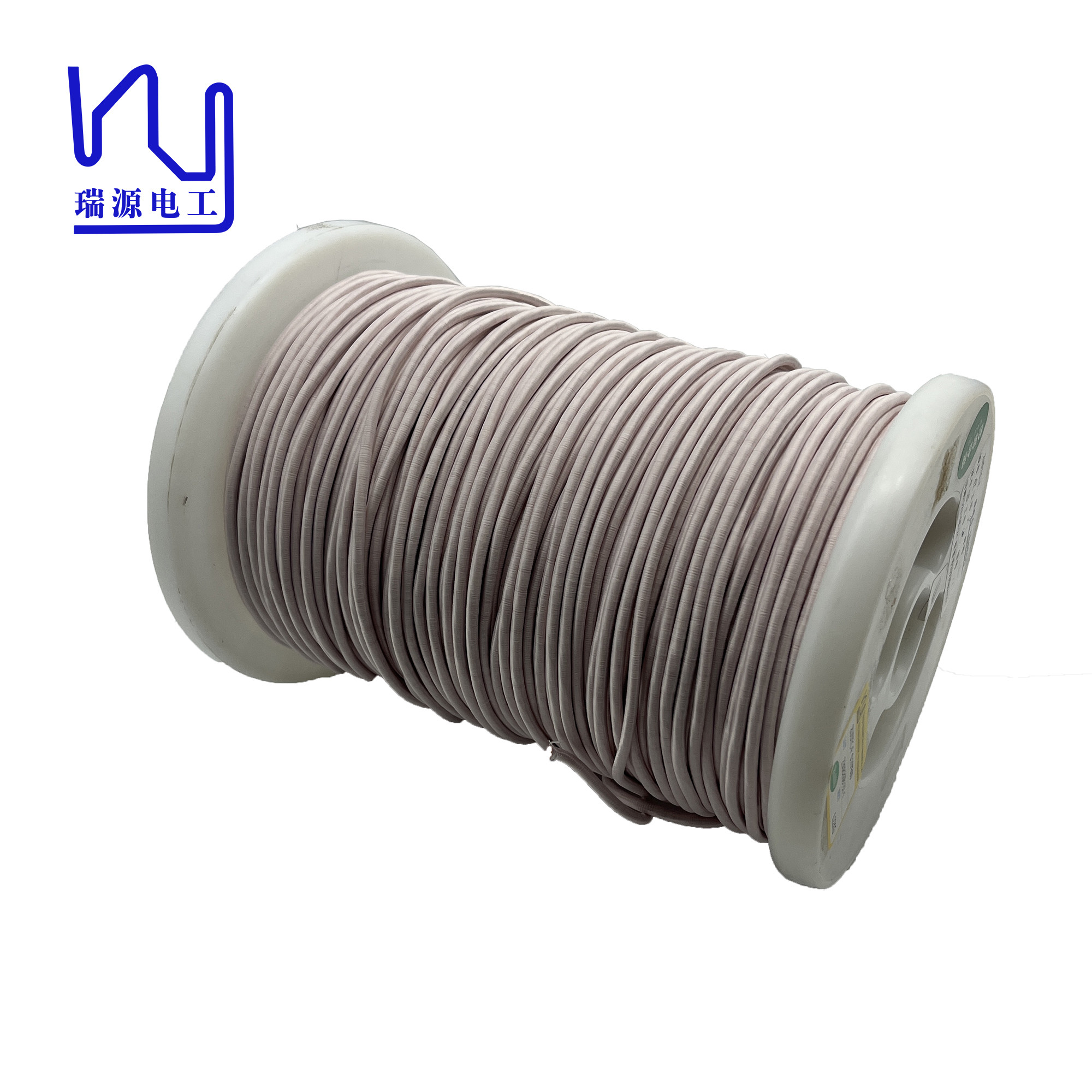

Silk Covered Utsc High Frequency Litz Wire 0.1 * 75mm With Copper Conductor
Our ability to produce wire in small batches allows us to be more flexible to meet the needs of specific projects. Silk covered litz wire excels in a variety of signal transmission applications, such as telecommunications systems, audio equipment, medical equipment, and industrial machinery. Its high flexibility and reliability make it ideal for those who want uninterrupted and high-quality signal transmission.
Description Conductor diameter*Strand number | 1 USTC- F 0.10*75 | |
Single wire | Conductor diameter( mm) | 0. 100 |
| Conductor diameter tolerance ( mm) | ±0.003 | |
| Minimal insulation thickness( mm) | 0.009 | |
| Maximal overall diameter ( mm) | 0. 140 | |
| Thermal Class(℃) | 155 | |
Strand | Strand number | 75 |
| Pitch(mm) | 29± 5 | |
| Stranding direction | S | |
| Category | Nylon |
| Material specs( mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%)or thickness( mm), mini | 0 02 | |
| Wrapping direction | S | |
| Max O. D ( mm) | 1.33 |
| Max pin holes faults/6m | 20 | |
| Max resistance ( Ω/ Km at20℃) | 31.75 | |
| Mini breakdown voltage(V ) | 2000 | |
Key word | Silk Covered Utsc High Frequency Litz Wire 0.1 * 75mm With Copper Conductor | ||
