| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.1mm*75 Enamel Insulation High Frequency Litz Wire Copper Magnet Wire UL Certificate | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.1mm*75 Enamel Insulation High Frequency Litz Wire Copper Magnet Wire UL Certificate |
| No. Of Strands: | 75 | ||
| Highlight: | 0.1mm enameled magnet wire,ul certificate enameled magnet wire,0.1mm high frequency litz wire |
||

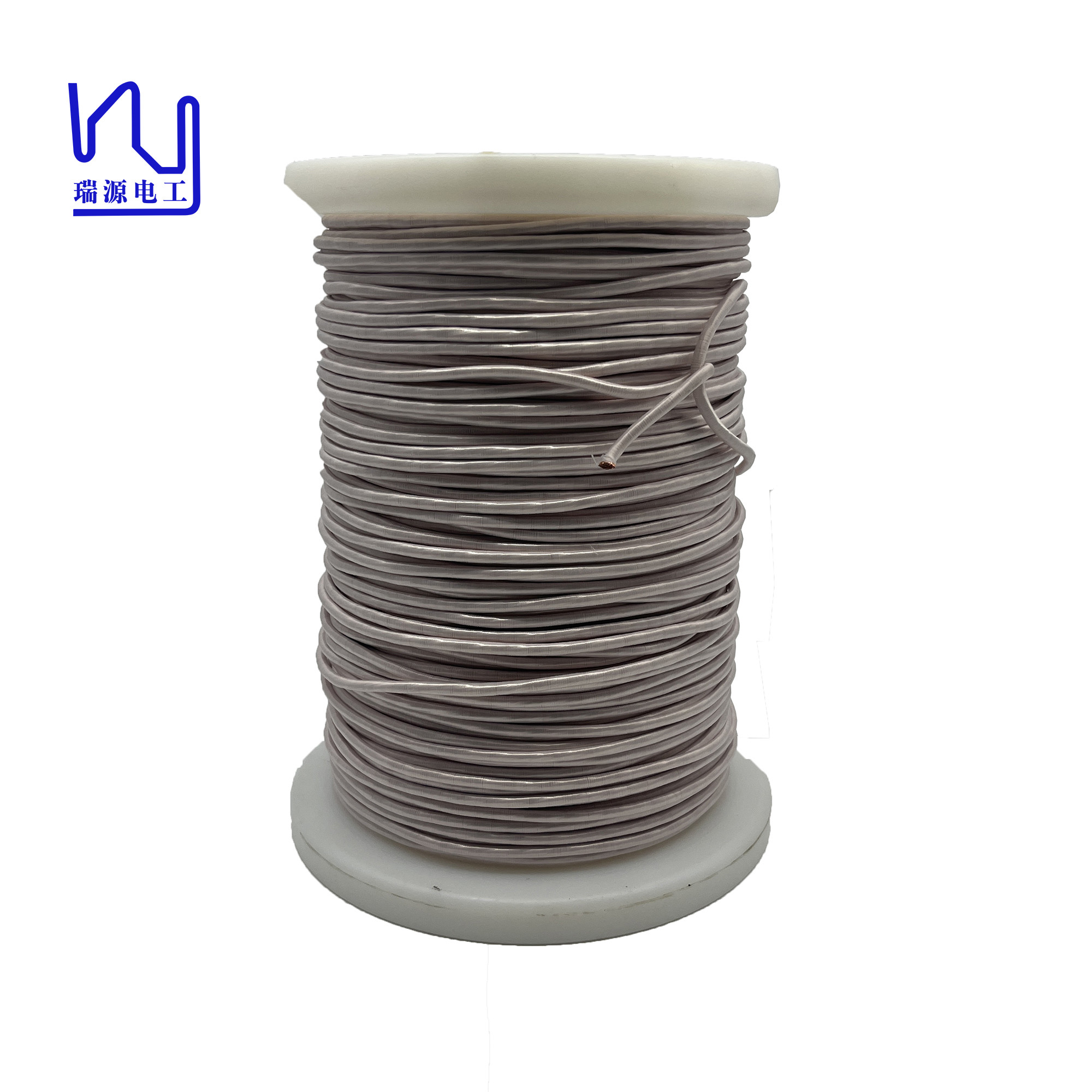

0.1mm*600 Enamel Insulation High Frequency Litz Wire Copper Magnet Wire UL Certificate
Improve signal transmission efficiency In the world of signal transmission, wire selection plays a vital role in ensuring optimal performance.
Silk covered litz wire is a type of wire that has gained recognition for its unique advantages. This cable is carefully crafted to provide superior functionality that greatly improves signal transmission efficiency.
|
Description Conductor diameter*Strand number |
1 USTC- F 0.10*75 |
|
|
Single wire |
Conductor diameter( mm) | 0. 100 |
| Conductor diameter tolerance ( mm) | ±0.003 | |
| Minimal insulation thickness( mm) | 0.009 | |
| Maximal overall diameter ( mm) | 0. 140 | |
| Thermal Class(℃) | 155 | |
|
Strand Composition |
Strand number | 75 |
| Pitch(mm) | 29± 5 | |
| Stranding direction | S | |
|
Insulation layer |
Category | Nylon |
| Material specs( mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%)or thickness( mm), mini | 0 02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D ( mm) | 1.33 |
| Max pin holes faults/6m | 20 | |
| Max resistance ( Ω/ Km at20℃) | 31.75 | |
| Mini breakdown voltage(V ) | 2000 | |
|
Key word |
0.1mm*75 Enamel Insulation High Frequency Litz Wire Copper Magnet Wire UL Certificate |
||
