| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Taped Litz Wire 0.05mm/225 Polyester Film Wrapped Stranded Copper Wire For Motor Winding | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | Taped Litz Wire 0.05mm/225 Polyester Film Wrapped Stranded Copper Wire For Motor Winding |
| No. Of Strands: | 250 | ||
| Highlight: | motor winding taped litz wire,0.05mm stranded copper wire,motor winding stranded copper wire |
||

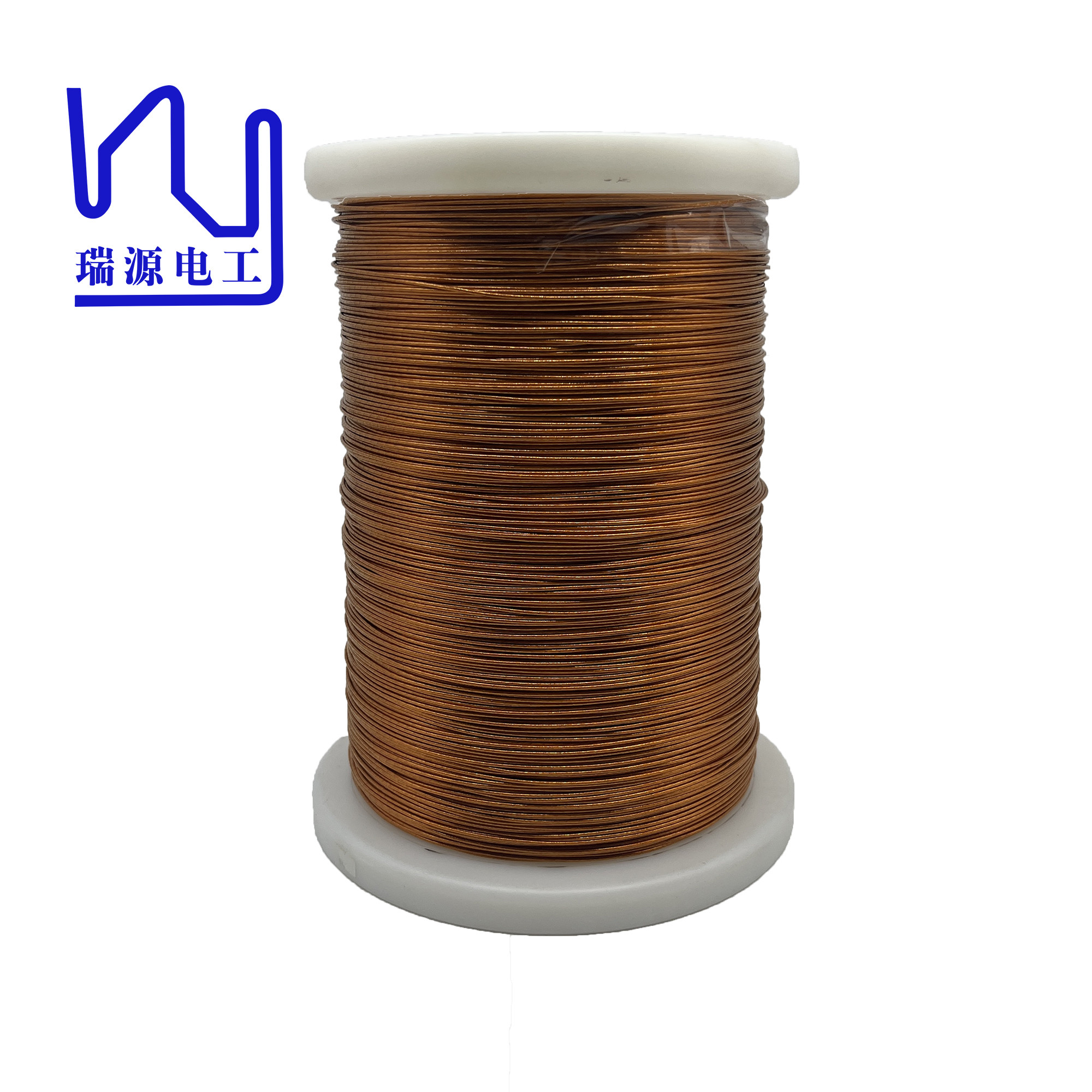

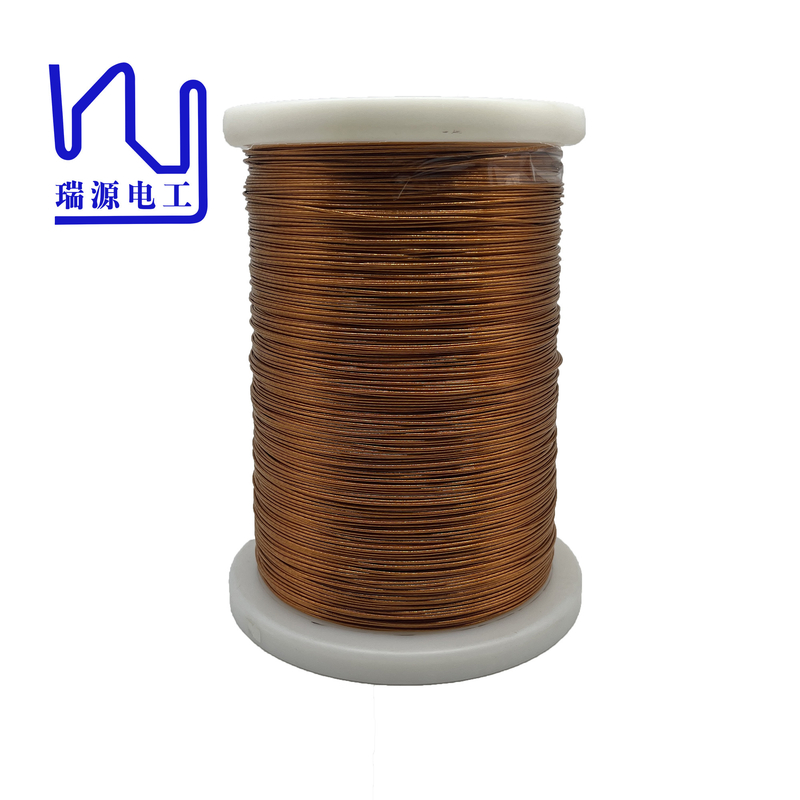

Taped litz Wire 0.05mm/225 Polyester Film Wrapped Stranded Copper Wire For Motor Winding
The wire can also be used in the automotive industry, such as the manufacturing of automotive wiring harnesses and the connection of battery components to ensure the reliable operation of automotive electrical systems. In the field of new energy, polyesterimide film-coated litz wire also plays an important role, providing reliable solutions for circuit connections in wind power generation and solar power generation.
Choosing taped litz wire can help them make circuit connections easier and safer. Its advanced technology and reliable quality make Litz wire the first choice for novices.
| Outgoing test report for litz wire served with tape | ||
| Name:Litz wire, class 155 | Spec:0.05*225 | |
| Tape Spec:0.05*6 | Model: 2UEW-F-2PI | |
| Item | Tech requirement | Test result |
| Single wire diameter(mm) | 0.058-0.069 | 0.058-0.061 |
| Conductor diameter(mm) | 0.05±0.003 | 0.048-0.050 |
| O.D.(mm) | ≤1.44 | 1.23-1.33 |
| Resistance Ω/m | ≤0.04551 | 0.04126 |
| Dielectric strngth (v) | ≥6000 | 15000 |
| Pitch(mm) | 29±5 | 27 |
| No. Of strand | 225 | 225 |
| Tape overlap% | ≥50 | 55 |
Name | Taped litz Wire 0.05mm/225 Polyester Film Wrapped Stranded Copper Wire For Motor Winding |
Key word | Taped litz Wire 0.05mm/225 Polyester Film Wrapped Stranded Copper Wire For Motor Winding |
Insulation | Enamel |
Thermal rating | 155 degree |
Diameter of the enameled copper wire | 0.05mm |
Number of strands | 225 |
Type | 2UEW-F-2PI 44AWG/0.05 225 High Frequancy Taped Copper Litz Wire |
