| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.05mm High Voltage PI Taped Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | 0.05mm High Voltage PI Taped Copper Litz Wire |
| No. Of Strands: | 250 | ||
| Highlight: | 30 gauge copper litz wire,high voltage copper litz wire,hv 30 awg enameled magnet wire |
||

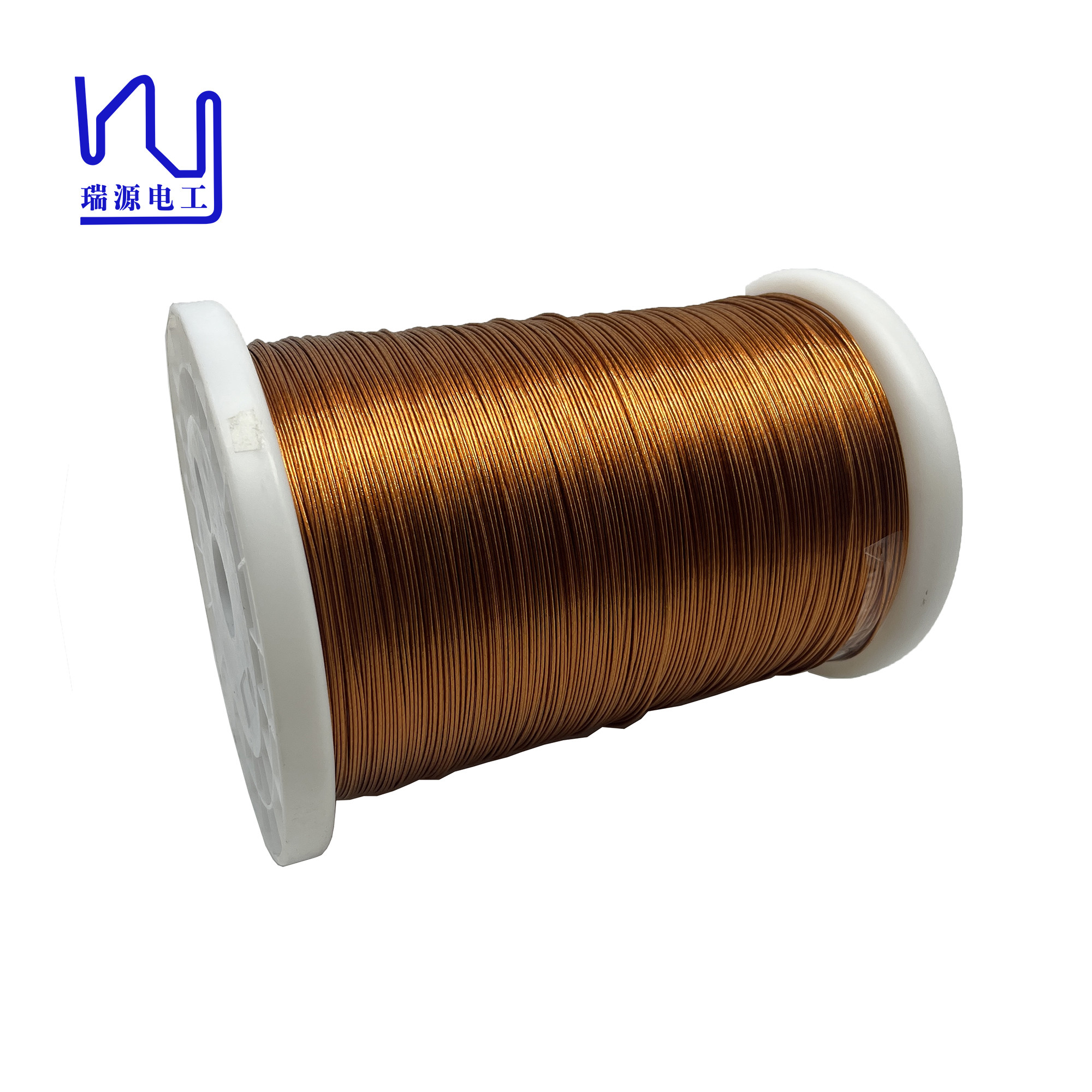

0.05mm High voltage PI taped copper litz wire
In the manufacturing of electronic products, Litz wire can be used in key links such as circuit board welding and connector production, providing strong support for the stable operation of electronic equipment. Its excellent temperature resistance makes it particularly suitable for circuit connections in high-temperature working environments, such as motors, electric furnaces and other industries.
| Outgoing test report for litz wire served with tape | ||
| Name:Litz wire, class 155 | Spec:0.05*225 | |
| Tape Spec:0.05*6 | Model: 2UEW-F-2PI | |
| Item | Tech requirement | Test result |
| Single wire diameter(mm) | 0.058-0.069 | 0.058-0.061 |
| Conductor diameter(mm) | 0.05±0.003 | 0.048-0.050 |
| O.D.(mm) | ≤1.44 | 1.23-1.33 |
| Resistance Ω/m | ≤0.04551 | 0.04126 |
| Dielectric strngth (v) | ≥6000 | 15000 |
| Pitch(mm) | 29±5 | 27 |
| No. Of strand | 225 | 225 |
| Tape overlap% | ≥50 | 55 |
|
Name |
0.05mm High voltage PI taped copper litz wire |
|
Key word |
0.05mm High voltage PI taped copper litz wire |
|
Insulation |
Enamel |
|
Thermal rating |
155 degree |
|
Diameter of the enameled copper wire |
0.05mm |
|
Number of strands |
225 |
|
Type |
2UEW-F-2PI 44AWG/0.05 225 High Frequancy Taped Copper Litz Wire |
