| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2UEW-F-2PI 44AWG/0.05 225 High Frequancy Taped Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | 2UEW-F-2PI 44AWG/0.05 225 High Frequancy Taped Copper Litz Wire |
| No. Of Strands: | 250 | ||
| Highlight: | uew high frequancy litz wire,44 awg high frequancy litz wire,litz 44 gauge enameled copper wire |
||

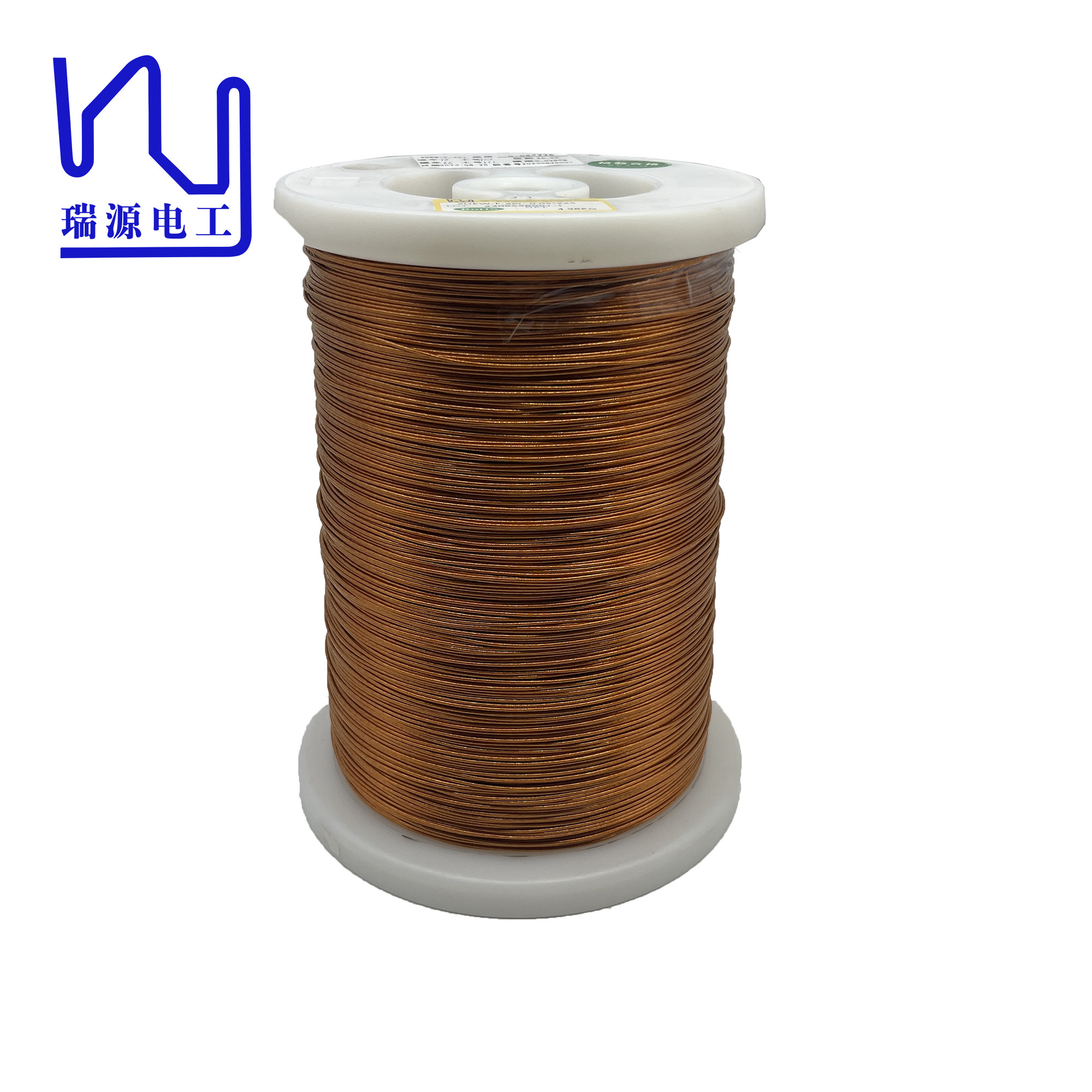

2UEW-F-2PI 44AWG/0.05 225 High Frequancy Taped Copper Litz Wire
Taped litz wire has excellent performance and a wide range of applications. This wire uses solerable enameled copper wire with single wire diameter of 0.05mm, and a strand count of 225.
Different from ordinary film-covered wires, litz wires are covered with two layers of polyester imide film on the outside. This design helps to improve its pressure resistance.
| Outgoing test report for litz wire served with tape | ||
| Name:Litz wire, class 155 | Spec:0.05*225 | |
| Tape Spec:0.05*6 | Model: 2UEW-F-2PI | |
| Item | Tech requirement | Test result |
| Single wire diameter(mm) | 0.058-0.069 | 0.058-0.061 |
| Conductor diameter(mm) | 0.05±0.003 | 0.048-0.050 |
| O.D.(mm) | ≤1.44 | 1.23-1.33 |
| Resistance Ω/m | ≤0.04551 | 0.04126 |
| Dielectric strngth (v) | ≥6000 | 15000 |
| Pitch(mm) | 29±5 | 27 |
| No. Of strand | 225 | 225 |
| Tape overlap% | ≥50 | 55 |
|
Name |
2UEW-F-2PI 44AWG/0.05 225 High Frequancy Taped Copper Litz Wire |
|
Key word |
Mylar litz wire |
|
Insulation |
Enamel |
|
Thermal rating |
155 degree |
|
Diameter of the enameled copper wire |
0.05mm |
|
Number of strands |
225 |
|
Type |
2UEW-F-2PI 44AWG/0.05 225 High Frequancy Taped Copper Litz Wire |
