| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2UEW155/180 0.025mm Solderable Litz Wire Enameled Copper Stranded WireHigh Quality 0.026mm*28-30 Class H Stranded HF Copper Litz Wire Coil For Transformers | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.025mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | High Quality 0.026mm*28-30 Class H Stranded HF Copper Litz Wire Coil For Transformers |
| No. Of Strands: | 28 | ||
| Highlight: | transformers litz copper wire,0.026 mm litz copper wire,0.026 mm enamelled copper wire |
||

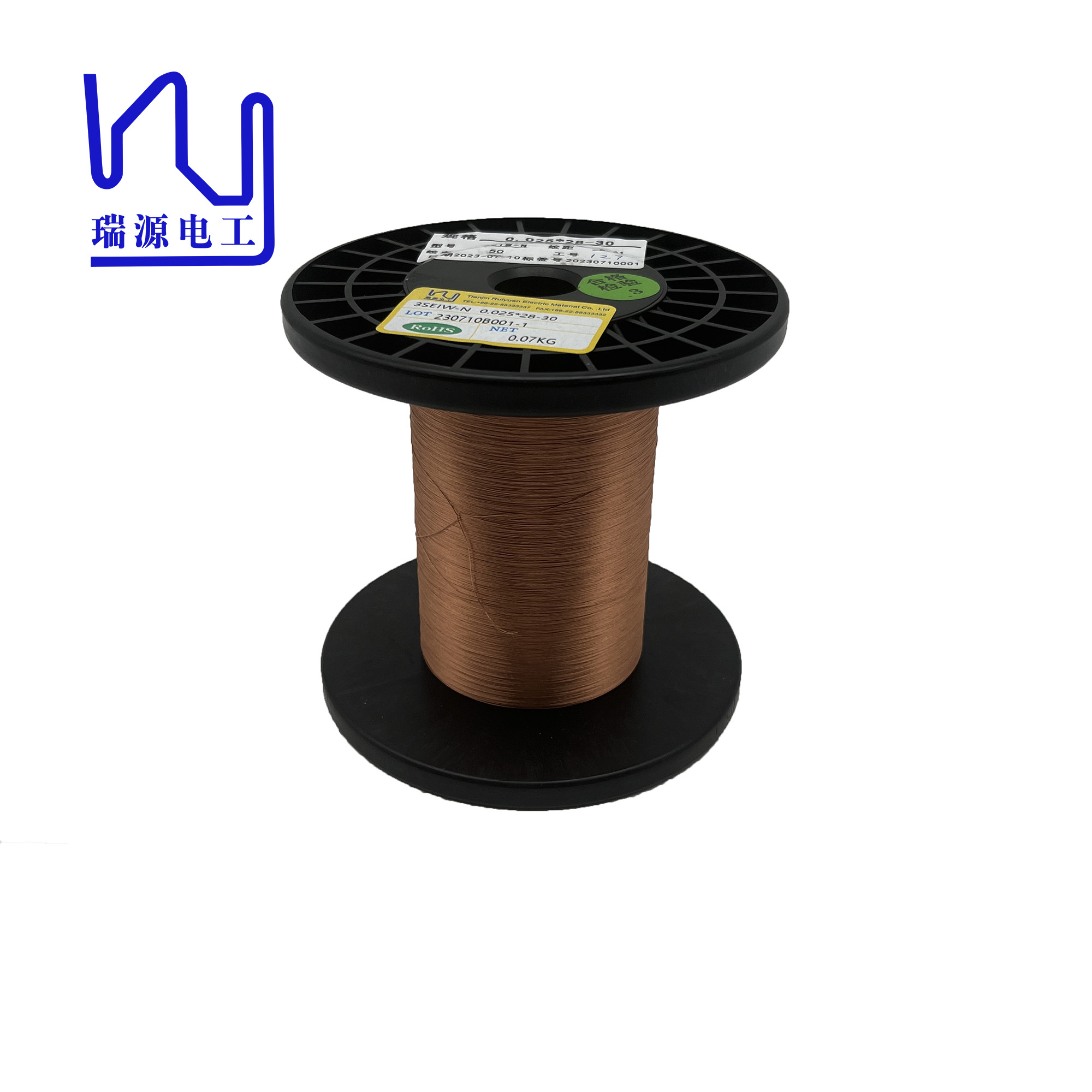

High Quality 0.026mm*28-30 Class H Stranded HF Copper Litz Wire Coil for Transformers
The uses of litz wire are wide and varied. In the field of electronic equipment, Liz wire can be applied to the internal connection of equipment such as mobile phones, tablet computers, cameras and audio equipment.
| Name: High Quality 0.026mm*28-30 Class H Stranded HF Copper Litz Wire Coil for Transformers | |||
| Key word:High Quality 0.026mm*28-30 Class H Stranded HF Copper Litz Wire Coil for Transformers | |||
| No. | Characteristics | Technical requests | Test Results |
| 1 | Surface | Good | OK |
| 2 |
Single wire outer diameter (mm) |
0.026-0.029 | 0.027 |
| 3 | Single wire inner diameter(mm) | 0.025±0.003 | 0.024 |
| 4 | Overall diameter(mm) | Max. 0.183 | 0.17 |
| 5 | Pitch(mm) | 6.61 | √ |
| 6 | Breakdown Voltage | Min. 200V | 1000V |
| 7 |
Conductor Resistance Ω/m(20℃) |
Max. 1.685 | 1.300 |
