| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2UEW155/180 0.025mm Solderable Litz Wire Enameled Copper Stranded Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.025mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2UEW155/180 0.025mm Solderable Litz Wire Enameled Copper Stranded Wire |
| No. Of Strands: | 28 | ||
| Highlight: | uew copper litz wire,solderable copper litz wire,0.025 mm enamelled copper wire |
||

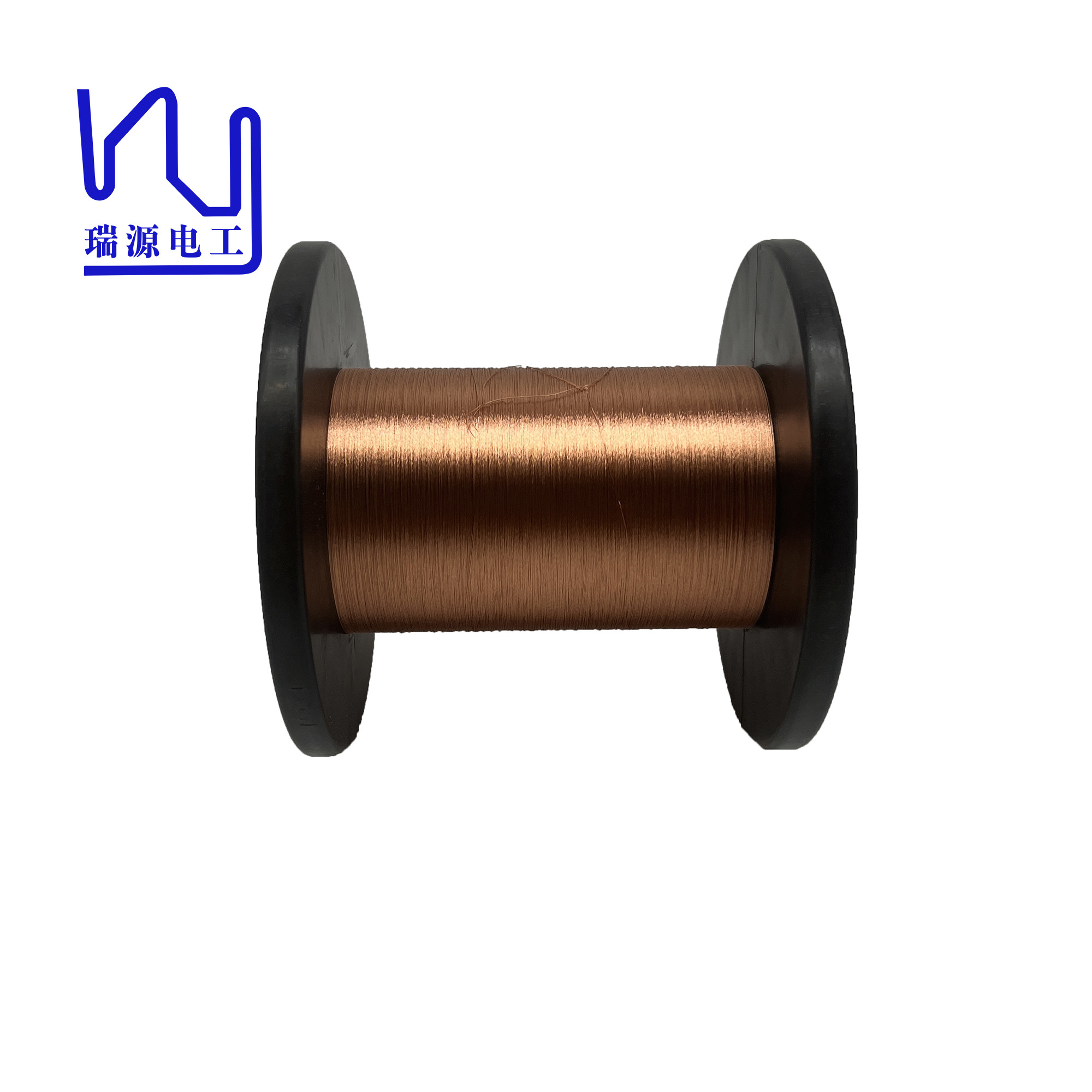

2UEW155/180 0.025mm Solderable Litz Wire Enameled Copper Stranded Wire
The minimum withstand voltage of 200 volts makes it very suitable for use in high voltage environments. Whether it is in household appliances, automotive electronic systems or other occasions that need to withstand high pressure, Liz wire can stably transmit power signals.
| Name: 2UEW155/180 0.025mm Solderable Litz Wire Enameled Copper Stranded Wire | |||
| Key word:2UEW155/180 0.025mm Solderable Litz Wire Enameled Copper Stranded Wire | |||
| No. | Characteristics | Technical requests | Test Results |
| 1 | Surface | Good | OK |
| 2 |
Single wire outer diameter (mm) |
0.026-0.029 | 0.027 |
| 3 | Single wire inner diameter(mm) | 0.025±0.003 | 0.024 |
| 4 | Overall diameter(mm) | Max. 0.183 | 0.17 |
| 5 | Pitch(mm) | 6.61 | √ |
| 6 | Breakdown Voltage | Min. 200V | 1000V |
| 7 |
Conductor Resistance Ω/m(20℃) |
Max. 1.685 | 1.300 |
