| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | SEIW 50AWG/28 Litz Wire Enameled Copper Stranded Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.025mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | SEIW 50AWG/28 Litz Wire Enameled Copper Stranded Wire |
| No. Of Strands: | 28 | ||
| Highlight: | 50 gauge copper litz wire,50 gauge litz magnet wire,multi strands litz magnet wire |
||

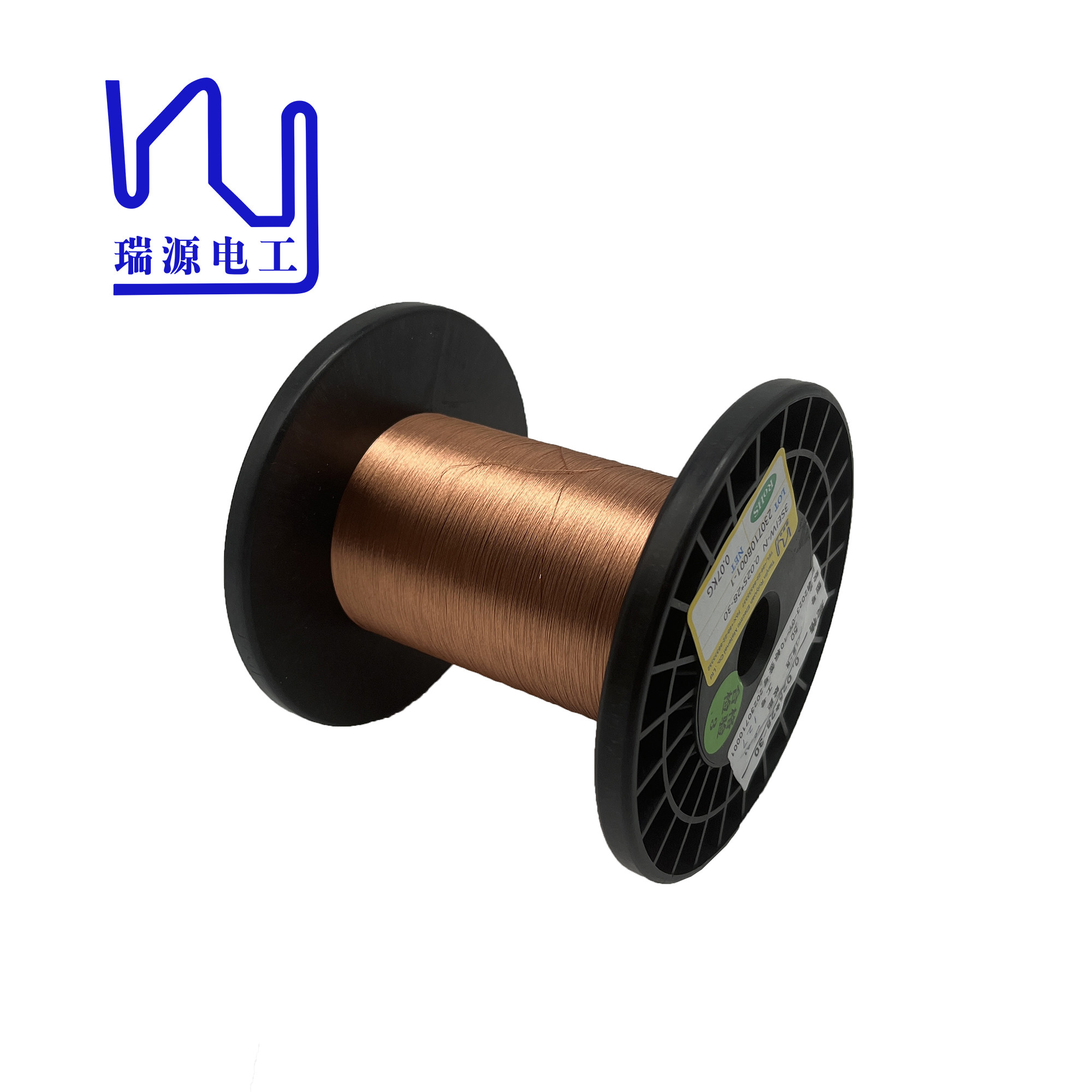

SEIW 50AWG/28 Litz Wire Enameled Copper Stranded Wire
The ultra-fine wire diameter of Litz wire is one of its great advantages. Compared with other traditional wires, Litz wire has a higher fineness and can be more easily adapted to precision needs. Whether in electronic equipment, medical equipment or other high-precision fields, Litz wire can provide reliable and efficient connections.
| Name: SEIW 50AWG/28 Litz Wire Enameled Copper Stranded Wire | |||
| Key word: SEIW 50AWG/28 Litz Wire Enameled Copper Stranded Wire | |||
| No. | Characteristics | Technical requests | Test Results |
| 1 | Surface | Good | OK |
| 2 |
Single wire outer diameter (mm) |
0.026-0.029 | 0.027 |
| 3 | Single wire inner diameter(mm) | 0.025±0.003 | 0.024 |
| 4 | Overall diameter(mm) | Max. 0.183 | 0.17 |
| 5 | Pitch(mm) | 6.61 | √ |
| 6 | Breakdown Voltage | Min. 200V | 1000V |
| 7 |
Conductor Resistance Ω/m(20℃) |
Max. 1.685 | 1.300 |
