| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | SEIW 0.025mm*28 Copper Litz Wire Enameled Stranded Winding Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.025mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | SEIW 0.025mm*28 Copper Litz Wire Enameled Stranded Winding Wire |
| No. Of Strands: | 28 | ||
| Highlight: | super enameled copper winding wire,magnet super enameled copper winding wire,0.025mm magnet winding wire |
||

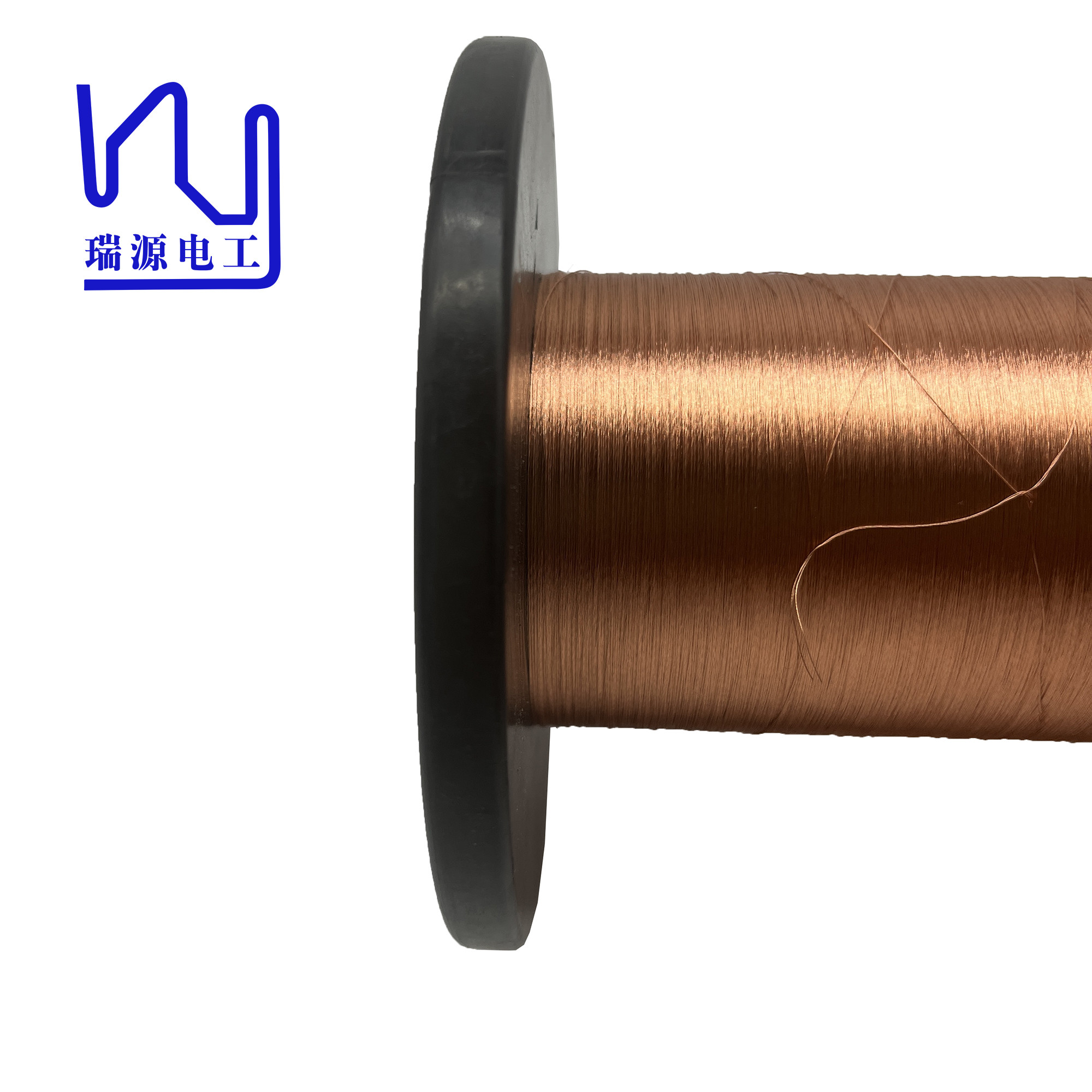

SEIW 0.025mm*28 Copper Litz Wire Enameled Stranded Winding Wire
This Litz wire is a customized ultra-fine wire, which is twisted by 28 ultra-fine enamelled single wires with a diameter of only 0.025mm.
This unique design makes litz wire unique in its advantages and uses in the market. Not only that, the largest outer diameter of the litz wire is only 0.183mm, and it also has the characteristics of a minimum withstand voltage of 200 volts.
| Name: SEIW 0.025mm*28 Copper Litz Wire Enameled Stranded Winding Wire | |||
| Key word: SEIW 0.025mm*28 Copper Litz Wire Enameled Stranded Winding Wire | |||
| No. | Characteristics | Technical requests | Test Results |
| 1 | Surface | Good | OK |
| 2 |
Single wire outer diameter (mm) |
0.026-0.029 | 0.027 |
| 3 | Single wire inner diameter(mm) | 0.025±0.003 | 0.024 |
| 4 | Overall diameter(mm) | Max. 0.183 | 0.17 |
| 5 | Pitch(mm) | 6.61 | √ |
| 6 | Breakdown Voltage | Min. 200V | 1000V |
| 7 |
Conductor Resistance Ω/m(20℃) |
Max. 1.685 | 1.300 |
