| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 3500V PI Film Rectangular Profiled Copper Litz Wire 4.1mm * 3.9mm | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | 3500V PI Film Rectangular Profiled Copper Litz Wire 4.1mm * 3.9mm |
| No. Of Strands: | 4369 | ||
| Highlight: | enamelled copper litz wire,3500v copper litz wire,0.05mm litz copper wire |
||

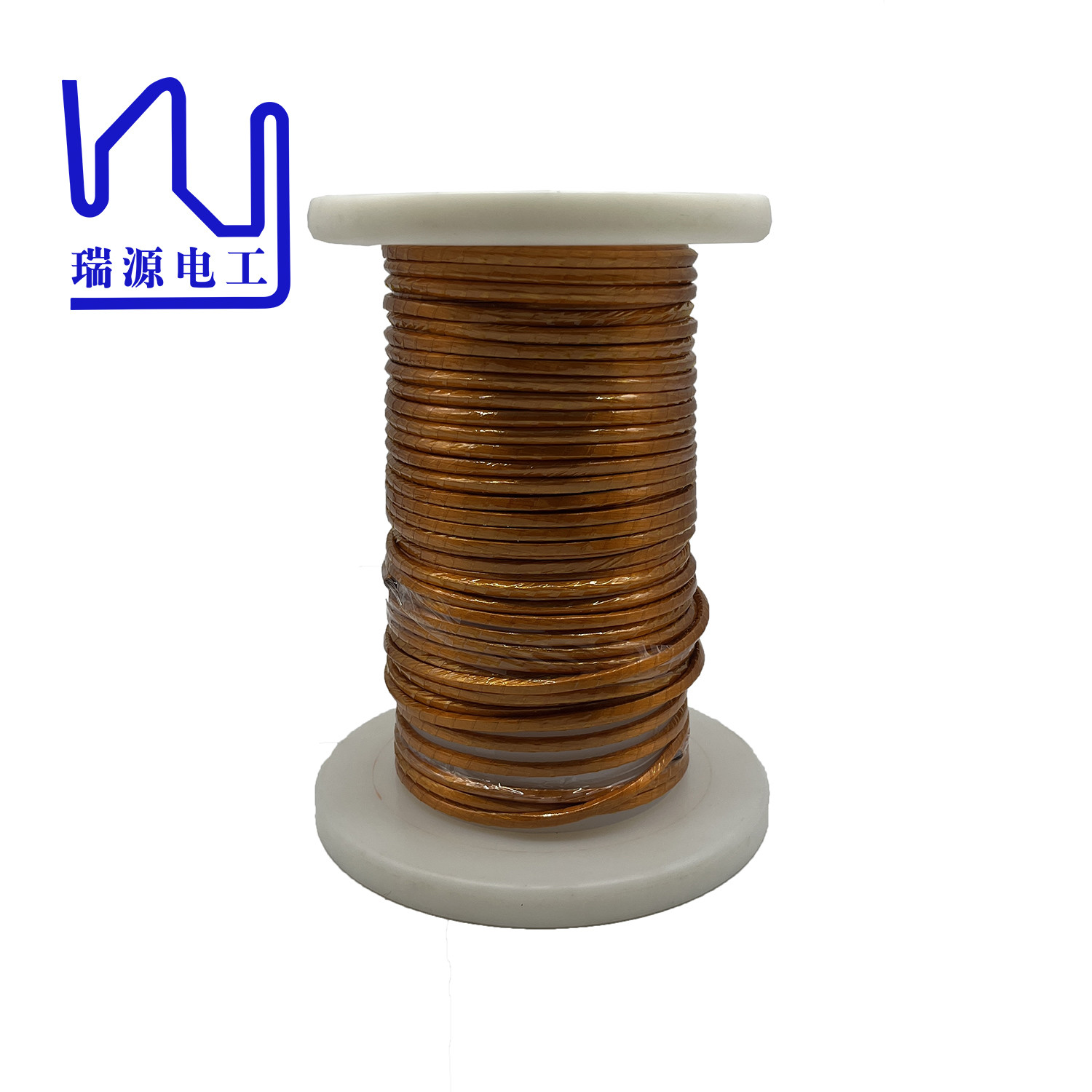

3500V PI Film Rectangular Profiled Copper Litz Wire 4.1mm * 3.9mm
The profiled litz wire is composed of 4369 strands of enamelled copper wire, the single wire diameter is 0.05 mm, the litz wire is covered with PI film, and the overall size is 4.1mm*3.9mm.
Taped Litz copper wire has become an indispensable wire in the electrical field due to its excellent insulation performance, flexibility, corrosion resistance, electrical conductivity and low resistivity.
It is widely used in various power equipment, communication equipment and electronic equipment, providing stable and reliable power and signal support for the production and development of different industries.
|
Description Conductor diameter*Strand number |
3UEW-F-PI(N) 0.05*4369 (4.1*3.9) | |
|
Single wire |
Conductor diameter(mm) | 0.050 |
| Conductor diameter tolerance (mm) | ± 0.003 | |
| Minimal insulation thickness(mm) | 0.0025 | |
| Maximal overall diameter (mm) | 0.060 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | ( 51*4+ 53) *17 |
| Pitch(mm) | 1 10± 20 | |
| Stranding direction | S ,S ,Z | |
|
Insulation layer |
Category | PI(N) |
| UL | / | |
| Material specs(mm* mm or D) | 0.025*15 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm), mini | 50 | |
| Wrapping direction | S | |
| Outline Fitting | Width* height(mm* mm) | 4. 1*3.9 |
|
Characteristics |
/ Max O. D (mm) | / |
| Max pin holes 个/6 m | / | |
| Max resistance ( Ω/Km at20℃) | 2.344 | |
| Mini breakdown voltage (V ) | 3500 | |
|
Name |
3500V PI Film Rectangular Profiled Copper Litz Wire 4.1mm * 3.9mm |
|
Key word |
Mylar litz wire |
|
Insulation |
Enamel |
|
Thermal rating |
155 degree |
|
Diameter of the enameled copper wire |
0.05mm |
|
Number of strands |
4369 |
|
Type |
3500V PI Film Rectangular Profiled Copper Litz Wire 4.1mm * 3.9mm |
