| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 3500V PI Film Taped Copper Litz Wire High Frequency PET Insulation Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | 3500V PI Film Taped Copper Litz Wire High Frequency PET Insulation Litz Wire |
| No. Of Strands: | 4369 | ||
| Highlight: | high frequency litz copper wire,pet insulation litz copper wire,copper litz enamelled wire |
||

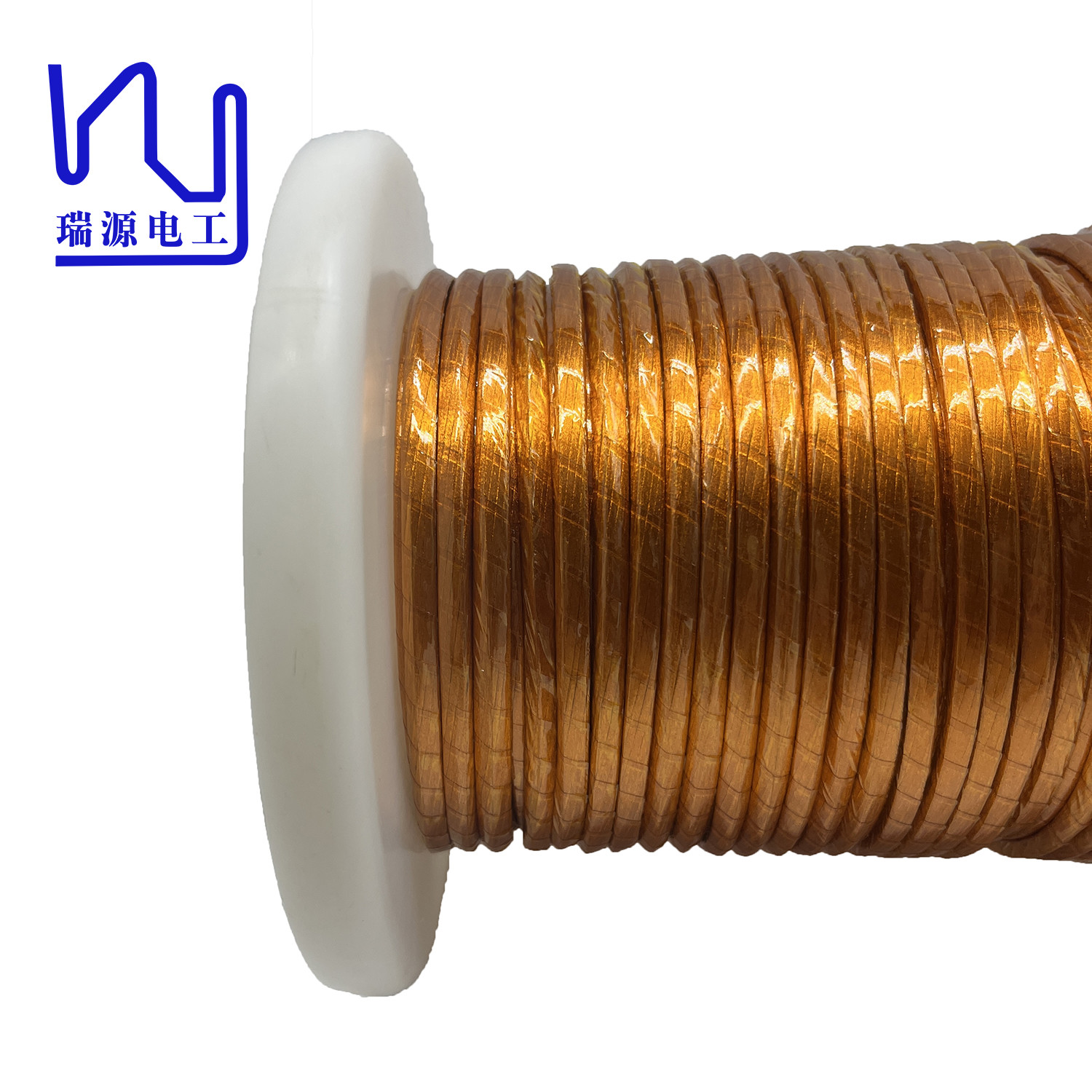

3500V PI Film Taped Copper Litz Wire high frequency PET Insulation litz wire
Taped Litz copper wire also has good electrical conductivity and low resistivity.
Copper has excellent electrical conductivity and can provide low impedance and high quality current transmission.
This feature makes the film-coated Litz copper wire very suitable for power transmission and signal transmission, and can ensure efficient and stable energy transmission and signal transmission.
|
Description Conductor diameter*Strand number |
3UEW-F-PI(N) 0.05*4369 (4.1*3.9) | |
|
Single wire |
Conductor diameter(mm) | 0.050 |
| Conductor diameter tolerance (mm) | ± 0.003 | |
| Minimal insulation thickness(mm) | 0.0025 | |
| Maximal overall diameter (mm) | 0.060 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | ( 51*4+ 53) *17 |
| Pitch(mm) | 1 10± 20 | |
| Stranding direction | S ,S ,Z | |
|
Insulation layer |
Category | PI(N) |
| UL | / | |
| Material specs(mm* mm or D) | 0.025*15 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm), mini | 50 | |
| Wrapping direction | S | |
| Outline Fitting | Width* height(mm* mm) | 4. 1*3.9 |
|
Characteristics |
/ Max O. D (mm) | / |
| Max pin holes 个/6 m | / | |
| Max resistance ( Ω/Km at20℃) | 2.344 | |
| Mini breakdown voltage (V ) | 3500 | |
|
Name |
3500V PI Film Taped Copper Litz Wire high frequency PET Insulation litz wire |
|
Key word |
Mylar litz wire |
|
Insulation |
Enamel |
|
Thermal rating |
155 degree |
|
Diameter of the enameled copper wire |
0.05mm |
|
Number of strands |
4369 |
|
Type |
3500V PI Film Taped Copper Litz Wire high frequency PET Insulation litz wire |
