| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom 0.05mm Taped Litz Wire Copper Insulated Stranded Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | Custom 0.05mm Taped Litz Wire Copper Insulated Stranded Wire |
| No. Of Strands: | 4369 | ||
| Highlight: | copper litz wire 0.05mm,enamel coated copper litz wire,0.05mm enamel coated wire |
||

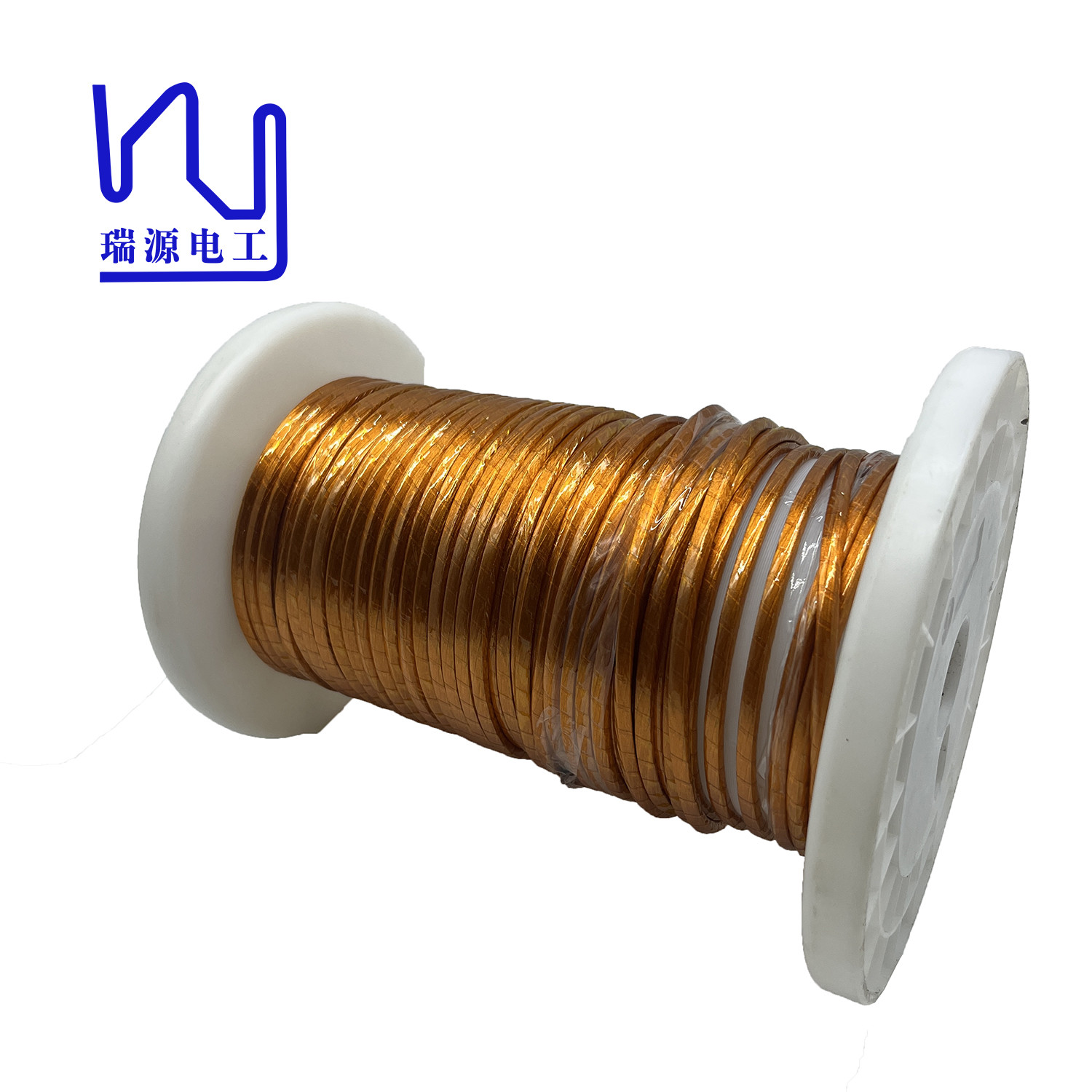

Custom 0.05mm Taped Litz Wire Copper Insulated Stranded Wire
One of the advantages of taped Litz copper wire is its excellent insulation properties.
Polyesterimide film plays an important insulating role in electrical equipment as an outer coating. It has excellent high-temperature resistance, can withstand long-term work in high-temperature environments, and has excellent current-carrying capacity.
Therefore, taped Litz copper wire is widely used in various electrical equipment, such as motors, transformers, generators, etc.
|
Description Conductor diameter*Strand number |
3UEW-F-PI(N) 0.05*4369 (4.1*3.9) | |
|
Single wire |
Conductor diameter(mm) | 0.050 |
| Conductor diameter tolerance (mm) | ± 0.003 | |
| Minimal insulation thickness(mm) | 0.0025 | |
| Maximal overall diameter (mm) | 0.060 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | ( 51*4+ 53) *17 |
| Pitch(mm) | 1 10± 20 | |
| Stranding direction | S ,S ,Z | |
|
Insulation layer |
Category | PI(N) |
| UL | / | |
| Material specs(mm* mm or D) | 0.025*15 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm), mini | 50 | |
| Wrapping direction | S | |
| Outline Fitting | Width* height(mm* mm) | 4. 1*3.9 |
|
Characteristics |
/ Max O. D (mm) | / |
| Max pin holes 个/6 m | / | |
| Max resistance ( Ω/Km at20℃) | 2.344 | |
| Mini breakdown voltage (V ) | 3500 | |
|
Name |
Custom 0.05mm Taped Litz Wire Copper Insulated Stranded Wire |
|
Key word |
Mylar litz wire |
|
Insulation |
Enamel |
|
Thermal rating |
155 degree |
|
Diameter of the enameled copper wire |
0.05mm |
|
Number of strands |
4369 |
|
Type |
Custom 0.05mm Taped Litz Wire Copper Insulated Stranded Wire |
