| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 155 Grade 0.05mm * 4369 Profiled Copper Litz Wire Enamel Copper Conductor | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | 155 Grade 0.05mm * 4369 Profiled Copper Litz Wire Enamel Copper Conductor |
| No. Of Strands: | 4369 | ||
| Highlight: | 0.05 mm copper litz wire,enamel coated copper litz wire,litz enamel coated copper wire |
||

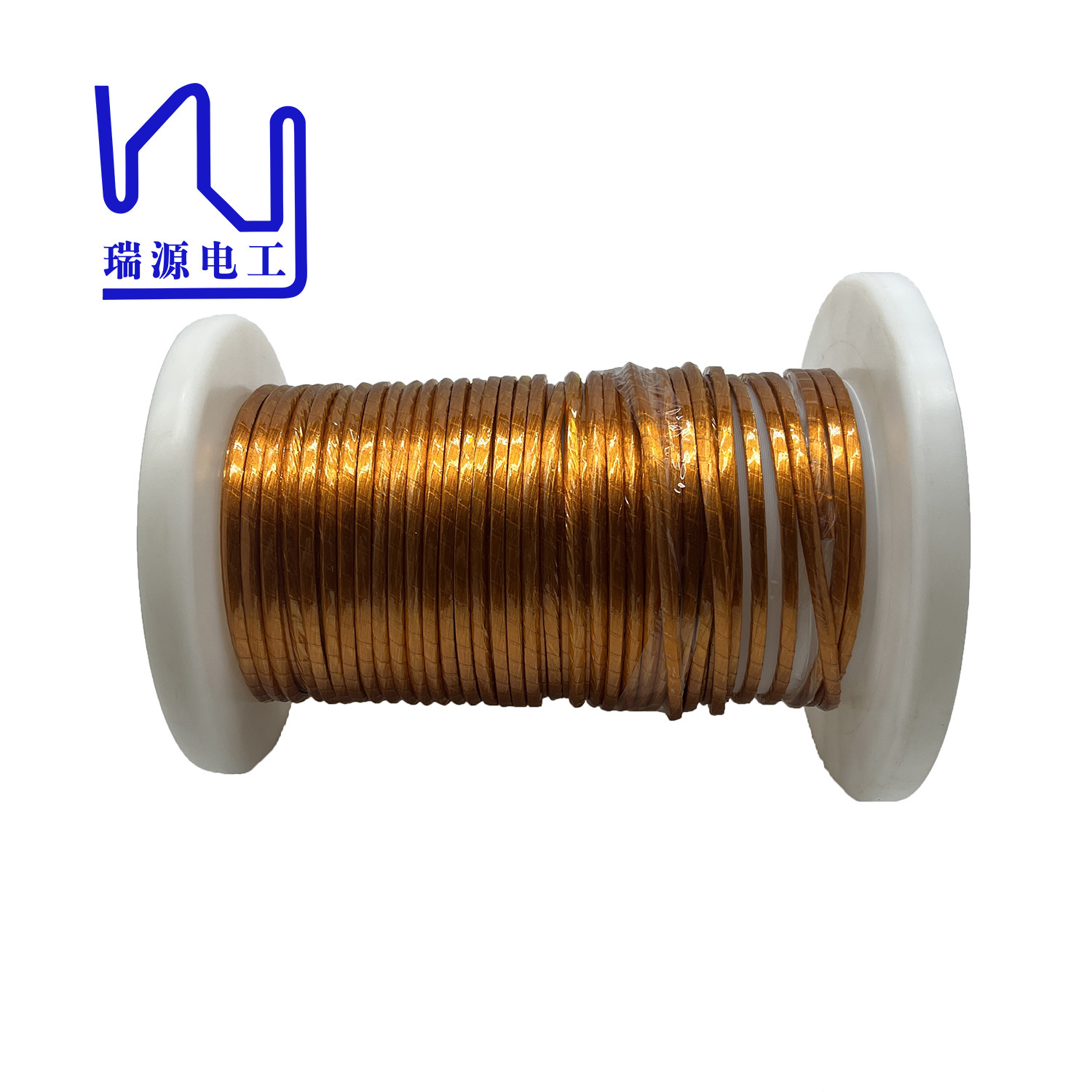

155 Grade 0.05mm * 4369 Profiled Copper Litz Wire Enamel Copper Conductor
Taped Litz copper wire has become an indispensable wire in the electrical field due to its excellent insulation performance, flexibility, corrosion resistance, electrical conductivity and low resistivity. It is widely used in various power equipment, communication equipment and electronic equipment, providing stable and reliable power and signal support for the production and development of different industries.
|
Description Conductor diameter*Strand number |
3UEW-F-PI(N) 0.05*4369 (4.1*3.9) | |
|
Single wire |
Conductor diameter(mm) | 0.050 |
| Conductor diameter tolerance (mm) | ± 0.003 | |
| Minimal insulation thickness(mm) | 0.0025 | |
| Maximal overall diameter (mm) | 0.060 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | ( 51*4+ 53) *17 |
| Pitch(mm) | 1 10± 20 | |
| Stranding direction | S ,S ,Z | |
|
Insulation layer |
Category | PI(N) |
| UL | / | |
| Material specs(mm* mm or D) | 0.025*15 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm), mini | 50 | |
| Wrapping direction | S | |
| Outline Fitting | Width* height(mm* mm) | 4. 1*3.9 |
|
Characteristics |
/ Max O. D (mm) | / |
| Max pin holes 个/6 m | / | |
| Max resistance ( Ω/Km at20℃) | 2.344 | |
| Mini breakdown voltage (V ) | 3500 | |
|
Name |
155 Grade 0.05mm * 4369 Profiled Copper Litz Wire Enamel Copper Conductor |
|
Key word |
Mylar litz wire |
|
Insulation |
Enamel |
|
Thermal rating |
155 degree |
|
Diameter of the enameled copper wire |
0.05mm |
|
Number of strands |
4369 |
|
Type |
155 Grade 0.05mm * 4369 Profiled Copper Litz Wire Enamel Copper Conductor |
