| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 3UEW155 4369/44 AWG Taped / Profiled Litz Wire Copper Insulated Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | 3UEW155 4369/44 AWG Taped / Profiled Litz Wire Copper Insulated Wire |
| No. Of Strands: | 4369 | ||
| Highlight: | 44 awg copper insulated wire,super enamel copper insulated wire,44 awg super enamel wire |
||

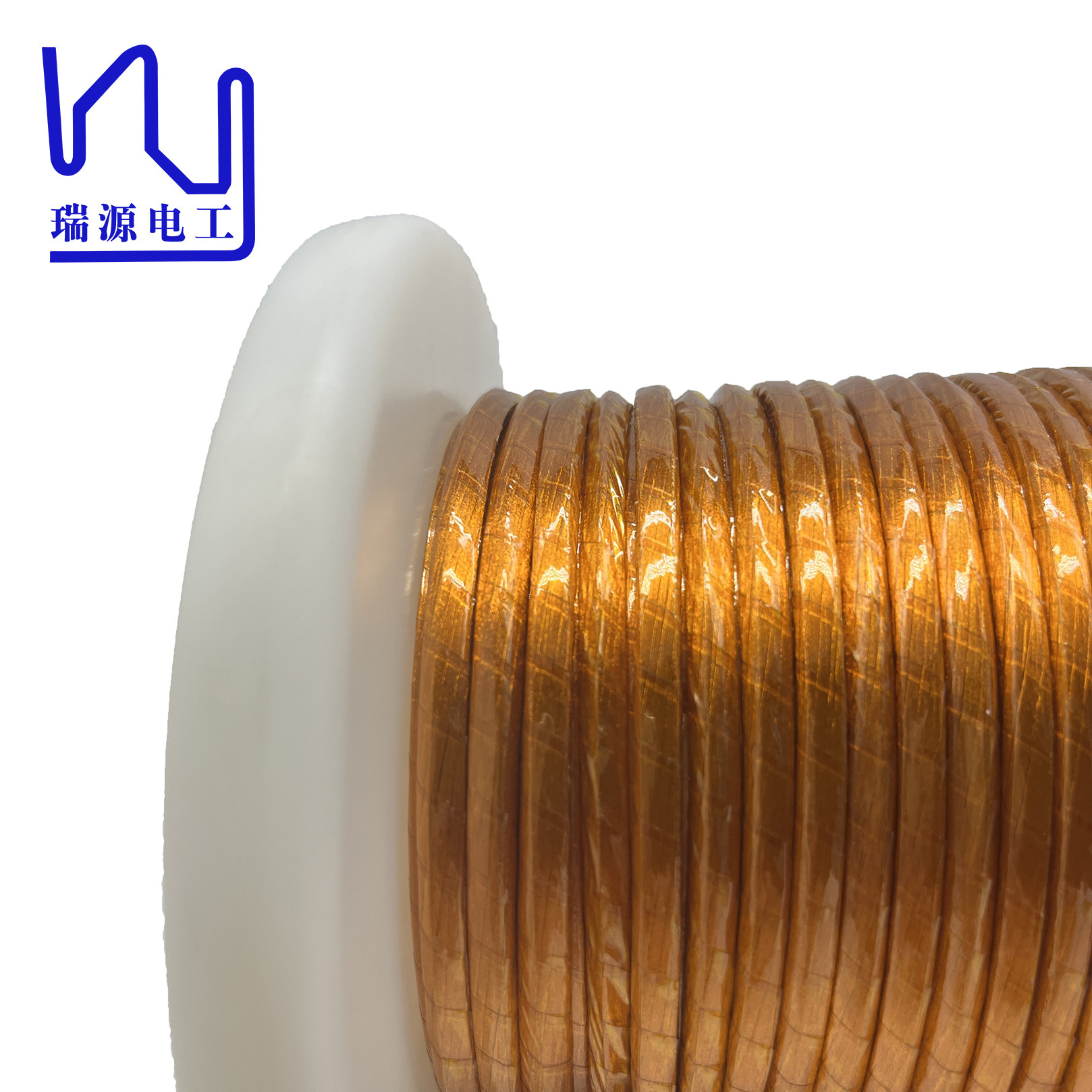

3UEW155 4369/44 AWG Taped / Profiled Litz Wire Copper Insulated Wire
The wire is composed of 4369 strands of enamelled copper wire, the single wire diameter is 0.05 mm, and the litz wire is covered with PI film, also known as polyester imide film, which is the best insulating material in the world at present.
This taped litz wire can also be called profiled Litz wire, because it is a square wire with an overall size of 4.1mm*3.9mm.
|
Description Conductor diameter*Strand number |
3UEW-F-PI(N) 0.05*4369 (4.1*3.9) | |
|
Single wire |
Conductor diameter(mm) | 0.050 |
| Conductor diameter tolerance (mm) | ± 0.003 | |
| Minimal insulation thickness(mm) | 0.0025 | |
| Maximal overall diameter (mm) | 0.060 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | ( 51*4+ 53) *17 |
| Pitch(mm) | 1 10± 20 | |
| Stranding direction | S ,S ,Z | |
|
Insulation layer |
Category | PI(N) |
| UL | / | |
| Material specs(mm* mm or D) | 0.025*15 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm), mini | 50 | |
| Wrapping direction | S | |
| Outline Fitting | Width* height(mm* mm) | 4. 1*3.9 |
|
Characteristics |
/ Max O. D (mm) | / |
| Max pin holes 个/6 m | / | |
| Max resistance ( Ω/Km at20℃) | 2.344 | |
| Mini breakdown voltage (V ) | 3500 | |
|
Name |
3UEW155 4369/44 AWG Taped / Profiled Litz Wire Copper Insulated Wire |
|
Key word |
Mylar litz wire |
|
Insulation |
Enamel |
|
Thermal rating |
155 degree |
|
Diameter of the enameled copper wire |
0.05mm |
|
Number of strands |
4369 |
|
Type |
3UEW155 4369/44 AWG Taped / Profiled Litz Wire Copper Insulated Wire |
