| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Customized HF Winding Polyester / Nylon / Silk Covered Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Customized HF Winding Polyester / Nylon / Silk Covered Copper Litz Wire |
| No. Of Strands: | 420 | ||
| Highlight: | 0.04mm copper litz wire,self bonding copper litz wire,0.04 mm enameled copper wire |
||

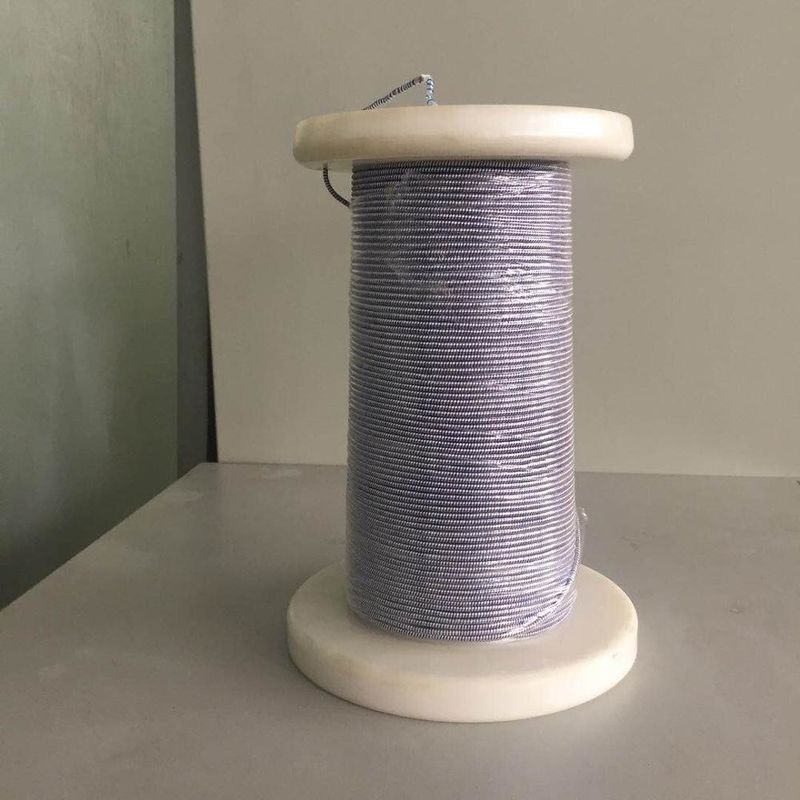

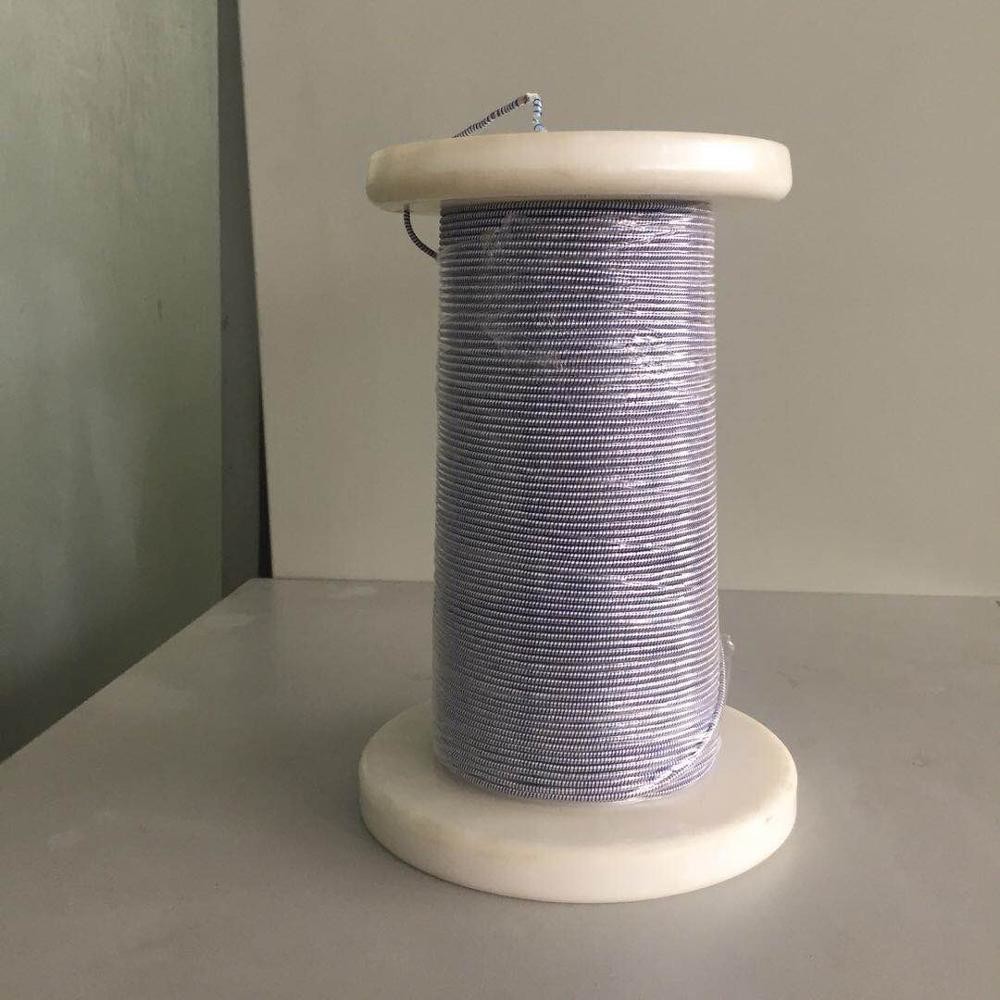

Customized HF Winding Polyester / Nylon / Silk Covered Copper Litz Wire
As a professional litz wire manufacturer, we have advanced production equipment and an experienced team to ensure product quality and delivery time. Whether you need silk covered litz wire for professional cable routing, or a novice needing simple circuit connections, we can provide you with the most suitable solution.
|
Customized HF Winding Polyester / Nylon / Silk Covered Copper Litz Wire |
|||
|
Item |
Technical requirement(mm) |
Sample 1 |
Sample 2 |
|
Outer diameter |
0.077-0.084 |
0.078 |
0.081 |
|
Conductor diameter(mm) |
0.071±0.003 |
0.068 |
0.07 |
|
Pitch(mm) |
29±5 |
√ |
√ |
|
Conductor Resistance(Ω/km at 20℃) |
Max. 0.05940 |
0.0541 |
0.0540 |
|
Breakdow Voltage(v) |
Min.950 |
3400 |
3000 |
|
Key word |
Customized HF Winding Polyester / Nylon / Silk Covered Copper Litz Wire |
||
