| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.04mm 0.05mm 0.08mm Cotton Coated Insulated Stranded Enameled Copper Wire For Generator | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.04mm 0.05mm 0.08mm Cotton Coated Insulated Stranded Enameled Copper Wire For Generator |
| No. Of Strands: | 420 | ||
| Highlight: | 0.04 mm ustc litz wire,ustc litz wire for generator,generator 0.05 mm enameled copper wire |
||

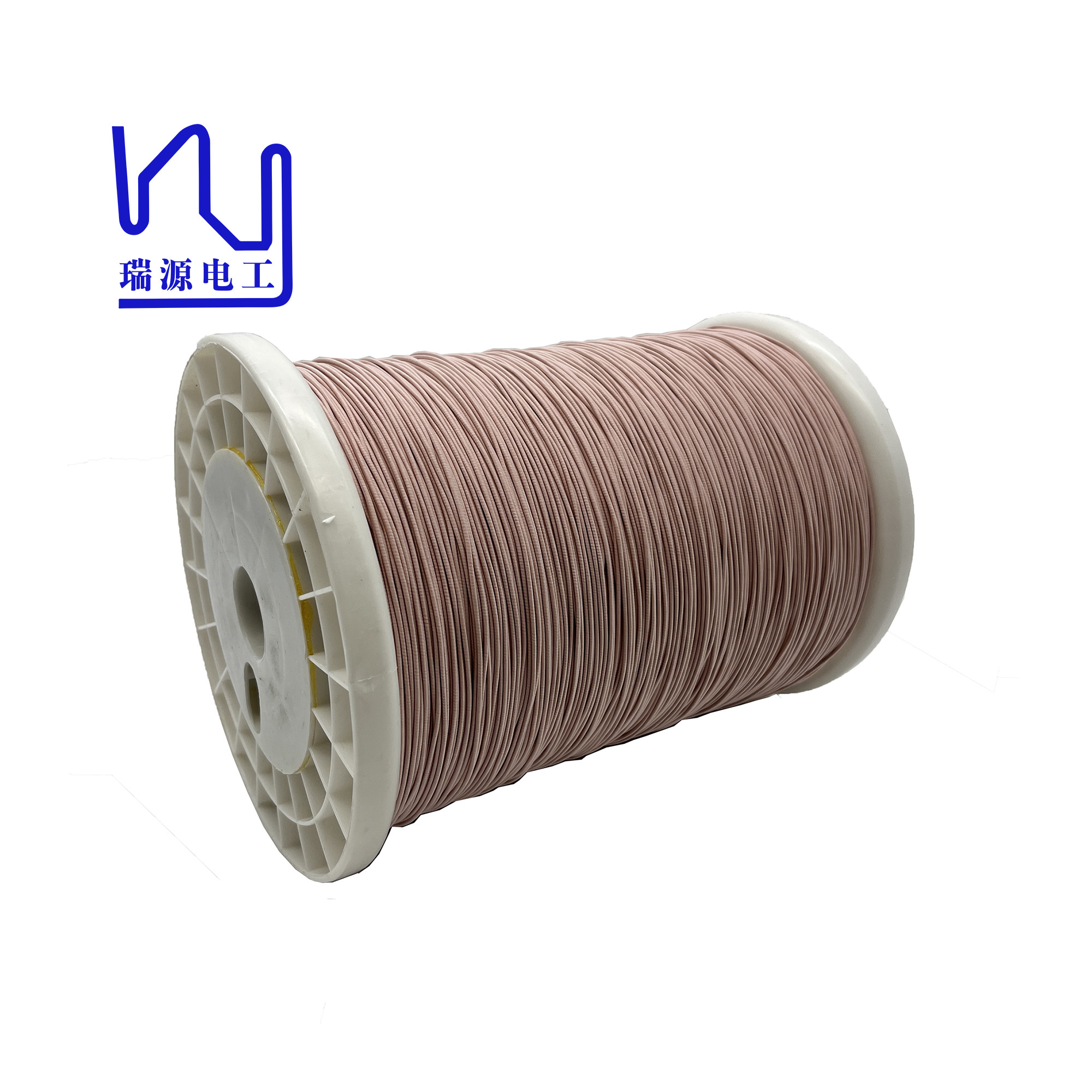

0.04mm 0.05mm 0.08mm Cotton Coated Insulated Stranded Enameled Copper Wire for Generator
In order to meet the needs of different customers, we provide customized silk covered litz wire services. You can customize the wire suitable for your project according to your special needs.
At the same time, we also provide a variety of outer sheath options, such as polyester yarn and natural silk. We provide customers with the opportunity to order small quantities, the minimum order quantity is 10 kg, so that you can obtain high-quality silk covered litz wire products at a reasonable cost.
|
0.04mm 0.05mm 0.08mm Cotton Coated Insulated Stranded Enameled Copper Wire for Generator |
|||
|
Item |
Technical requirement(mm) |
Sample 1 |
Sample 2 |
|
Outer diameter |
0.077-0.084 |
0.078 |
0.081 |
|
Conductor diameter(mm) |
0.071±0.003 |
0.068 |
0.07 |
|
Pitch(mm) |
29±5 |
√ |
√ |
|
Conductor Resistance(Ω/km at 20℃) |
Max. 0.05940 |
0.0541 |
0.0540 |
|
Breakdow Voltage(v) |
Min.950 |
3400 |
3000 |
|
Key word |
0.04mm 0.05mm 0.08mm Cotton Coated Insulated Stranded Enameled Copper Wire for Generator |
||
