| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.04mm*420 Class H Stranded HF Polyester Served Copper Litz Wire For Transformers Winding | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.04mm*420 Class H Stranded HF Polyester Served Copper Litz Wire For Transformers Winding |
| No. Of Strands: | 420 | ||
| Highlight: | hf litz wire for transformers winding,0.04mm hf litz wire,0.04 mm enamel insulated copper wire |
||

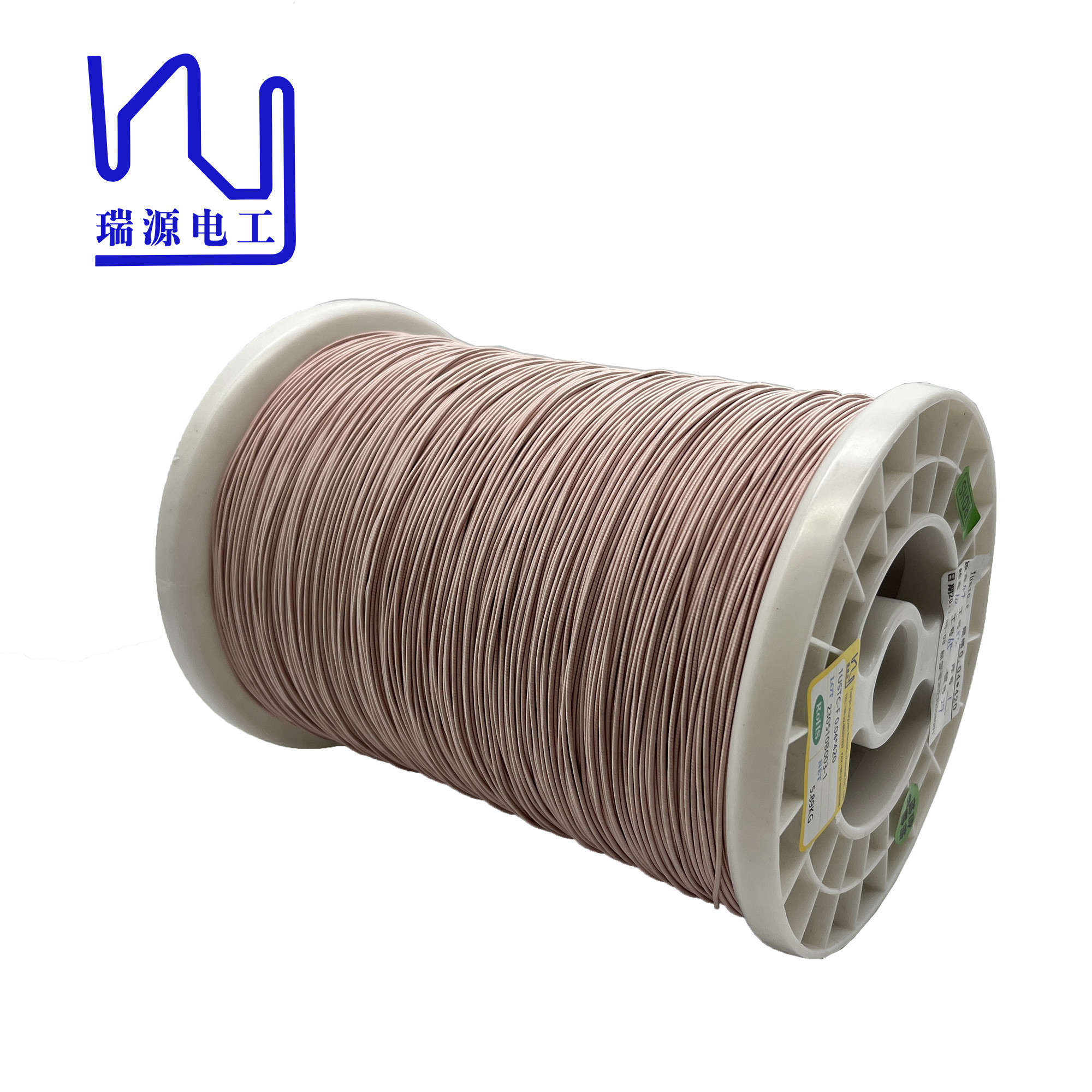

0.04mm*420 Class H Stranded HF Polyester Served Copper Litz Wire for Transformers Winding
In the field of communication, silk covered litz wires can be used in telephone lines, broadband access lines and network equipment.
In the fields of aerospace, mechanical equipment and automobile manufacturing, silk covered litz wires also play an important role, such as aircraft internal wiring harnesses, industrial machinery circuits and automotive circuits.
|
0.04mm*420 Class H Stranded HF Polyester Served Copper Litz Wire for Transformers Winding |
|||
|
Item |
Technical requirement(mm) |
Sample 1 |
Sample 2 |
|
Outer diameter |
0.077-0.084 |
0.078 |
0.081 |
|
Conductor diameter(mm) |
0.071±0.003 |
0.068 |
0.07 |
|
Pitch(mm) |
29±5 |
√ |
√ |
|
Conductor Resistance(Ω/km at 20℃) |
Max. 0.05940 |
0.0541 |
0.0540 |
|
Breakdow Voltage(v) |
Min.950 |
3400 |
3000 |
|
Key word |
0.04mm*420 Class H Stranded HF Polyester Served Copper Litz Wire for Transformers Winding |
||
