| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom 0.05mm Served Nylon Enameled Copper Litz Wire For Hf Converters | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom 0.05mm Served Nylon Enameled Copper Litz Wire For Hf Converters |
| No. Of Strands: | 420 | ||
| Highlight: | custom ustc litz wire,30 gauge ustc litz wire,0.05mm enameled copper magnet wire |
||

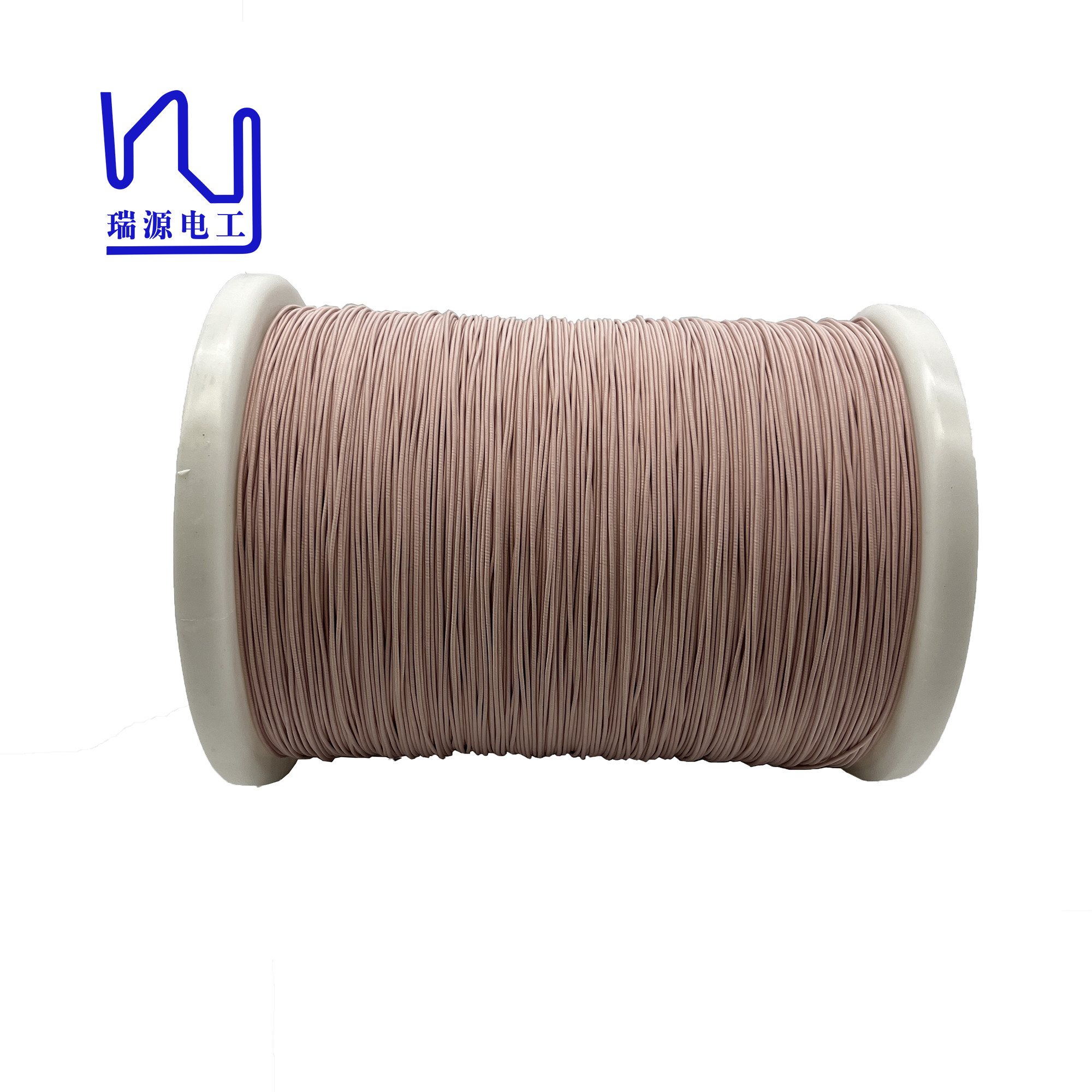

Custom 0.05mm Served Nylon Enameled Copper Litz Wire for hf Converters
Silk covered wire litz wire has a wide range of applications, especially suitable for industries such as electronics, communications, aerospace, mechanical equipment, and automobile manufacturing.
In the field of electronics, silk covered litz wires are often used for internal wiring harness connections such as circuit board wiring and motor drive lines.
|
Custom 0.05mm Served Nylon Enameled Copper Litz Wire for hf Converters |
|||
|
Item |
Technical requirement(mm) |
Sample 1 |
Sample 2 |
|
Outer diameter |
0.077-0.084 |
0.078 |
0.081 |
|
Conductor diameter(mm) |
0.071±0.003 |
0.068 |
0.07 |
|
Pitch(mm) |
29±5 |
√ |
√ |
|
Conductor Resistance(Ω/km at 20℃) |
Max. 0.05940 |
0.0541 |
0.0540 |
|
Breakdow Voltage(v) |
Min.950 |
3400 |
3000 |
|
Key word |
Custom 0.05mm Served Nylon Enameled Copper Litz Wire for hf Converters |
||
