| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2USTC-F 180 0.04mm / 420 Silk Covered Copper Litz Wire For Motor | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2USTC-F 180 0.04mm / 420 Silk Covered Copper Litz Wire For Motor |
| No. Of Strands: | 420 | ||
| Highlight: | silk covered copper ustc litz wire,ustc litz wire 0.04 mm,motor 0.04 mm enamelled copper wire |
||

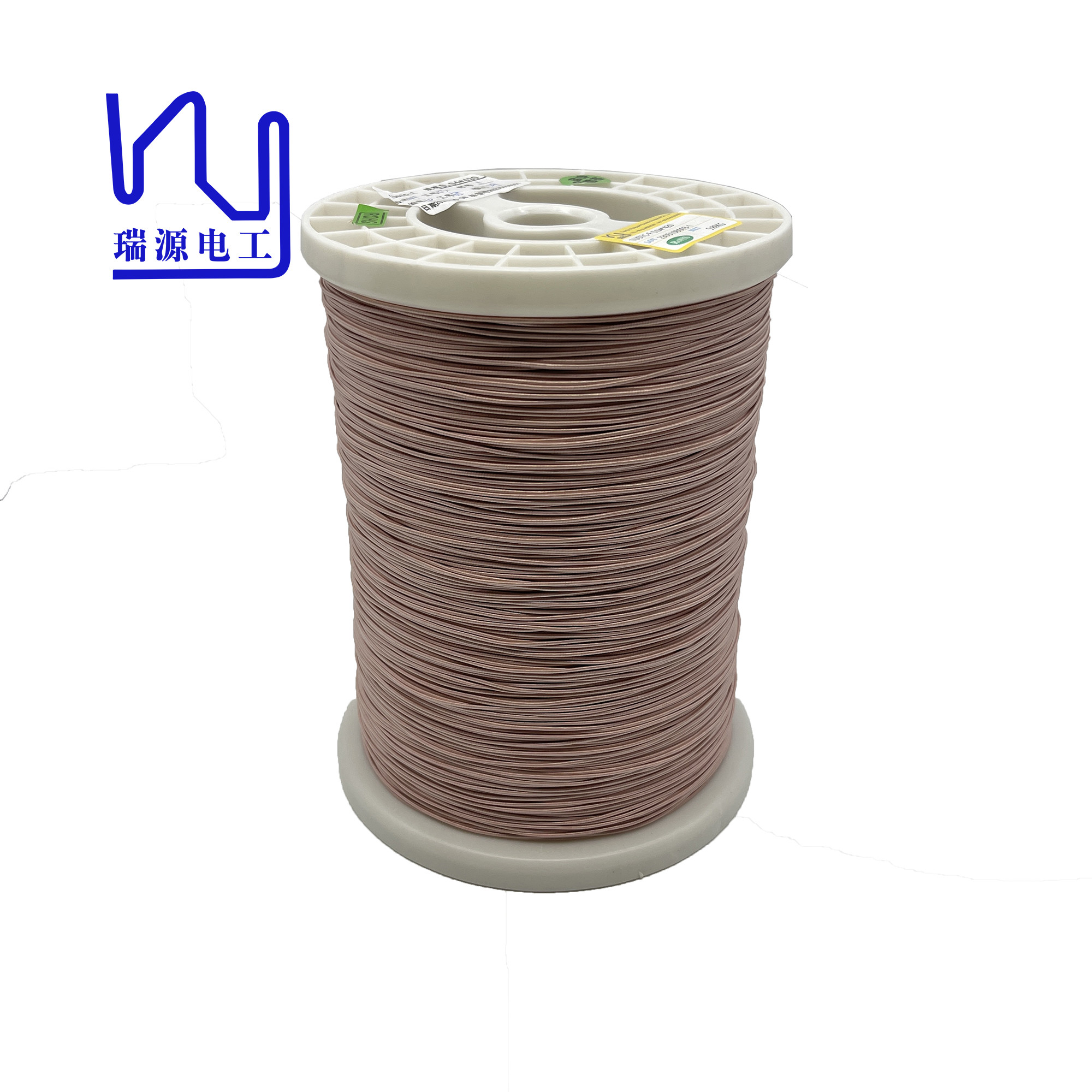

2USTC-F 180 0.04mm / 420 Silk covered copper litz wire for motor
This wire is covered with nylon yarn, the single wireis 0.04mm enameled copper wire. We use polyurethane lacquered single wire that can be directly welded, so that the silk covered litz wire has good temperature resistance, and the maximum temperature resistance can reach 155 degrees.
If you need wires with higher temperature resistance, we also provide 180 degree and 200 degree options. This wire is twisted by 420 strands.
|
2USTC-F 180 0.04mm / 420 Silk covered copper litz wire for motor |
|||
|
Item |
Technical requirement(mm) |
Sample 1 |
Sample 2 |
|
Outer diameter |
0.077-0.084 |
0.078 |
0.081 |
|
Conductor diameter(mm) |
0.071±0.003 |
0.068 |
0.07 |
|
Pitch(mm) |
29±5 |
√ |
√ |
|
Conductor Resistance(Ω/km at 20℃) |
Max. 0.05940 |
0.0541 |
0.0540 |
|
Breakdow Voltage(v) |
Min.950 |
3400 |
3000 |
|
Key word |
2USTC-F 180 0.04mm / 420 Silk covered copper litz wire for motor |
||
