| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2USTC-F 155 0.04mm * 420 Strands High Frequency Nylon Served Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2USTC-F 155 0.04mm * 420 Strands High Frequency Nylon Served Copper Litz Wire |
| No. Of Strands: | 420 | ||
| Highlight: | high frequency copper litz wire,0.04 mm copper litz wire,litz self bonding enamelled copper wire |
||

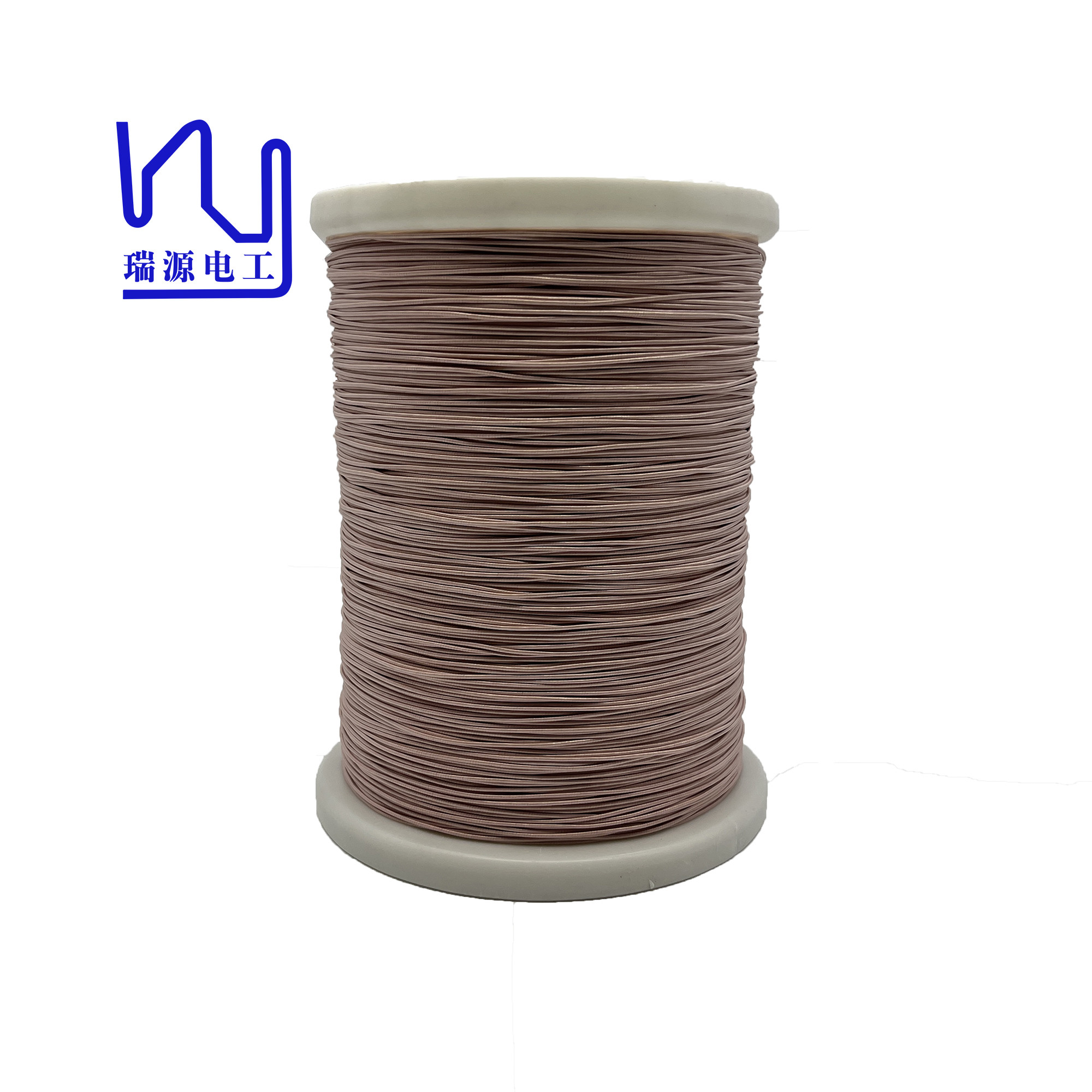

2USTC-F 155 0.04mm * 420 strands High Frequency Nylon Served Copper Litz Wire
Silk covered litz wire is a multifunctional wire and cable product with a wide range of uses and diversification.
This kind of copper stranded wire is often used to make coils of electrical equipment such as transformers and motors, and can also be used to make industrial equipment and instruments.
|
2USTC-F 155 0.04mm * 420 strands High Frequency Nylon Served Copper Litz Wire |
|||
|
Item |
Technical requirement(mm) |
Sample 1 |
Sample 2 |
|
Outer diameter |
0.077-0.084 |
0.078 |
0.081 |
|
Conductor diameter(mm) |
0.071±0.003 |
0.068 |
0.07 |
|
Pitch(mm) |
29±5 |
√ |
√ |
|
Conductor Resistance(Ω/km at 20℃) |
Max. 0.05940 |
0.0541 |
0.0540 |
|
Breakdow Voltage(v) |
Min.950 |
3400 |
3000 |
|
Key word |
2USTC155/180 Litz wire super thin enameled nylon served copper litz wire |
||
