| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Litz Wire 0.025mm-0.8mm USTC Silk Covered Stranded Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.071mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Litz Wire 0.025mm-0.8mm USTC Silk Covered Stranded Copper Wire |
| No. Of Strands: | 84 | ||
| Highlight: | 0.025mm ustc litz wire,copper enamel ustc litz wire,0.8mm stranded copper wire |
||

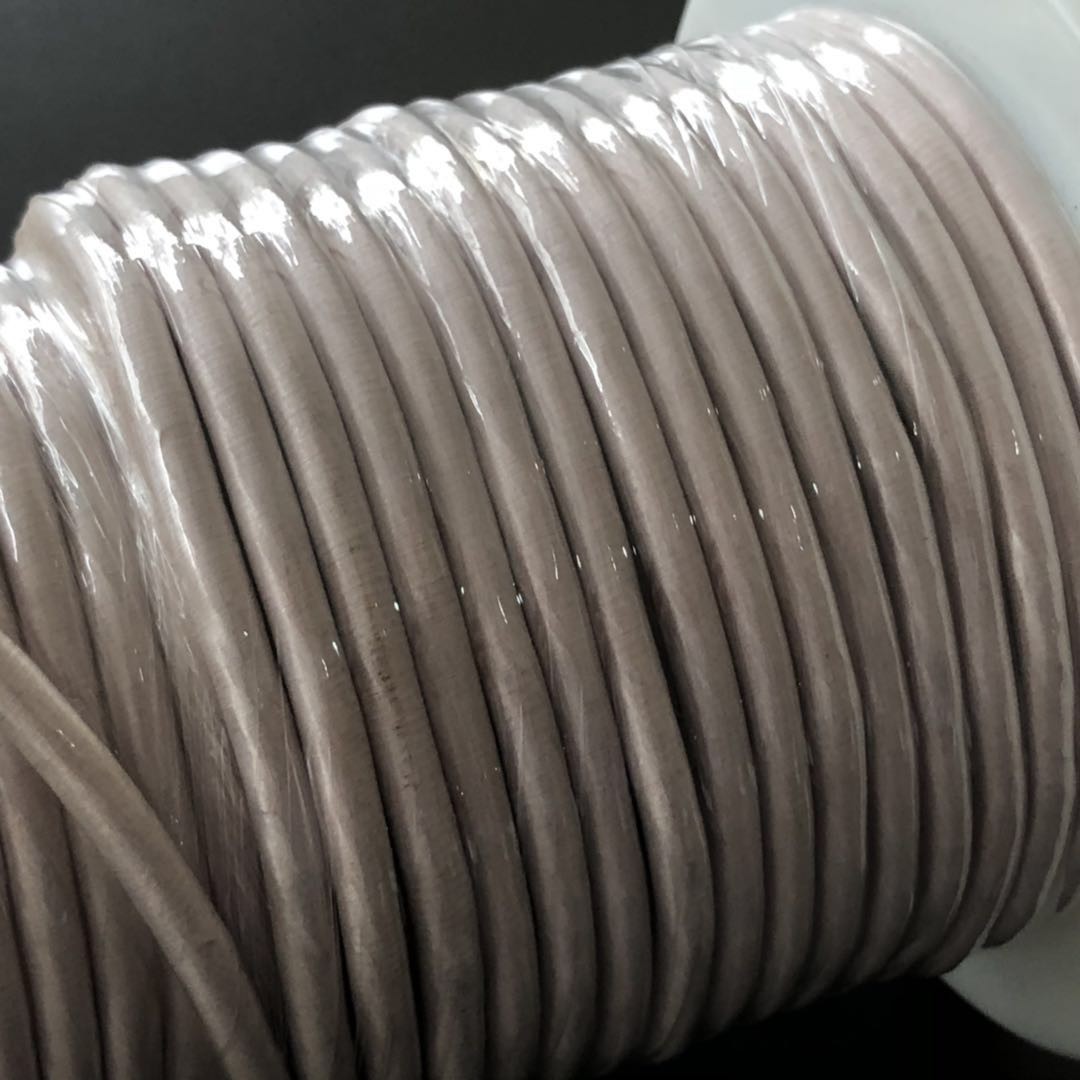

Litz wire 0.025mm-0.8mm USTC Silk Covered Stranded Copper Wire
the silk covered litz wire also has high-temperature oxidation resistance, which can meet the requirements of high-temperature use. We accept small batch customization of silk covered litz wire, the minimum order quantity is 10kg. If you need to order silk covered litz wire, please contact us, we will provide you with high-quality products and services.
|
Litz wire 0.025mm-0.8mm USTC Silk Covered Stranded Copper Wire |
|||
|
Item |
Technical requirement(mm) |
Sample 1 |
Sample 2 |
|
Outer diameter |
0.077-0.084 |
0.078 |
0.081 |
|
Conductor diameter(mm) |
0.071±0.003 |
0.068 |
0.07 |
|
Pitch(mm) |
29±5 |
√ |
√ |
|
Conductor Resistance(Ω/km at 20℃) |
Max. 0.05940 |
0.0541 |
0.0540 |
|
Breakdow Voltage(v) |
Min.950 |
3400 |
3000 |
|
Key word |
Litz wire 0.025mm-0.8mm USTC Silk Covered Stranded Copper Wire |
||
