| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2USTC155/180 Litz Wire Super Thin Enameled Nylon Served Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.071mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2USTC155/180 Litz Wire Super Thin Enameled Nylon Served Copper Litz Wire |
| No. Of Strands: | 84 | ||
| Highlight: | 2ustc155 copper litz wire,super thin copper litz wire,2ustc180 litz copper wire |
||

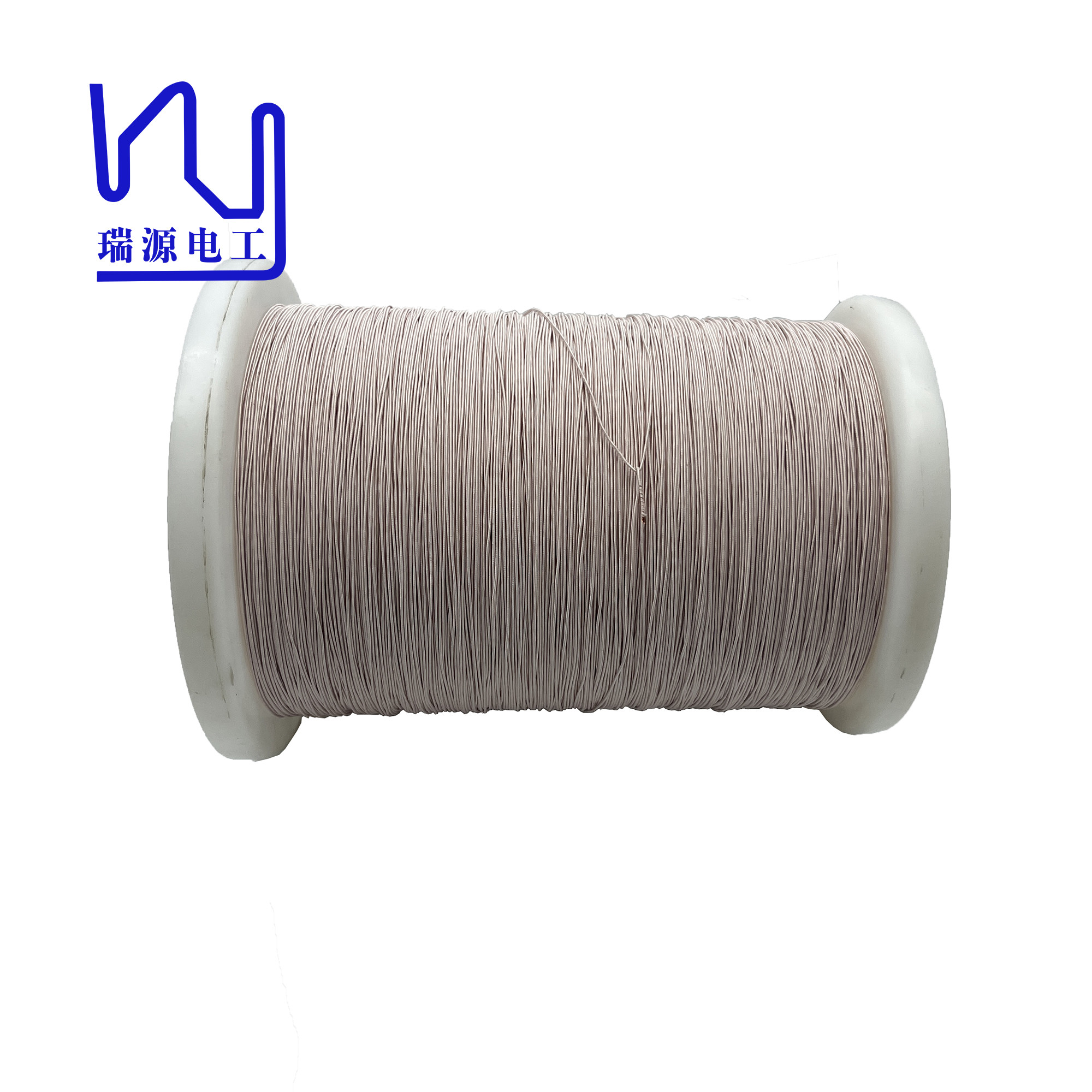

2USTC155/180 Litz wire super thin enameled nylon served copper litz wire
Silk covered copper litz wire is a very important material in the wire cable industry. The Silk covered copper litz wire is made of high-quality enameled copper wire, and the litz wire is wrapped with insulating materials such as nylon, polyester, natural silk yarn, so that it has good electrical conductivity and insulation. This kind of copper stranded wire is often used to make coils of electrical equipment such as transformers and motors, and can also be used to make industrial equipment and instruments.
|
2USTC155/180 Litz wire super thin enameled nylon served copper litz wire |
|||
|
Item |
Technical requirement(mm) |
Sample 1 |
Sample 2 |
|
Outer diameter |
0.077-0.084 |
0.078 |
0.081 |
|
Conductor diameter(mm) |
0.071±0.003 |
0.068 |
0.07 |
|
Pitch(mm) |
29±5 |
√ |
√ |
|
Conductor Resistance(Ω/km at 20℃) |
Max. 0.05940 |
0.0541 |
0.0540 |
|
Breakdow Voltage(v) |
Min.950 |
3400 |
3000 |
|
Key word |
2USTC155/180 Litz wire super thin enameled nylon served copper litz wire |
||
