| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2USTC155 Litz Wire 84 / 0.071 Strands Nylon Served Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.071mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2USTC155 Litz Wire 84 / 0.071 Strands Nylon Served Copper Litz Wire |
| No. Of Strands: | 84 | ||
| Highlight: | 0.071mm ustc litz wire,nylon served copper ustc litz wire,0.071mm copper litz wire |
||

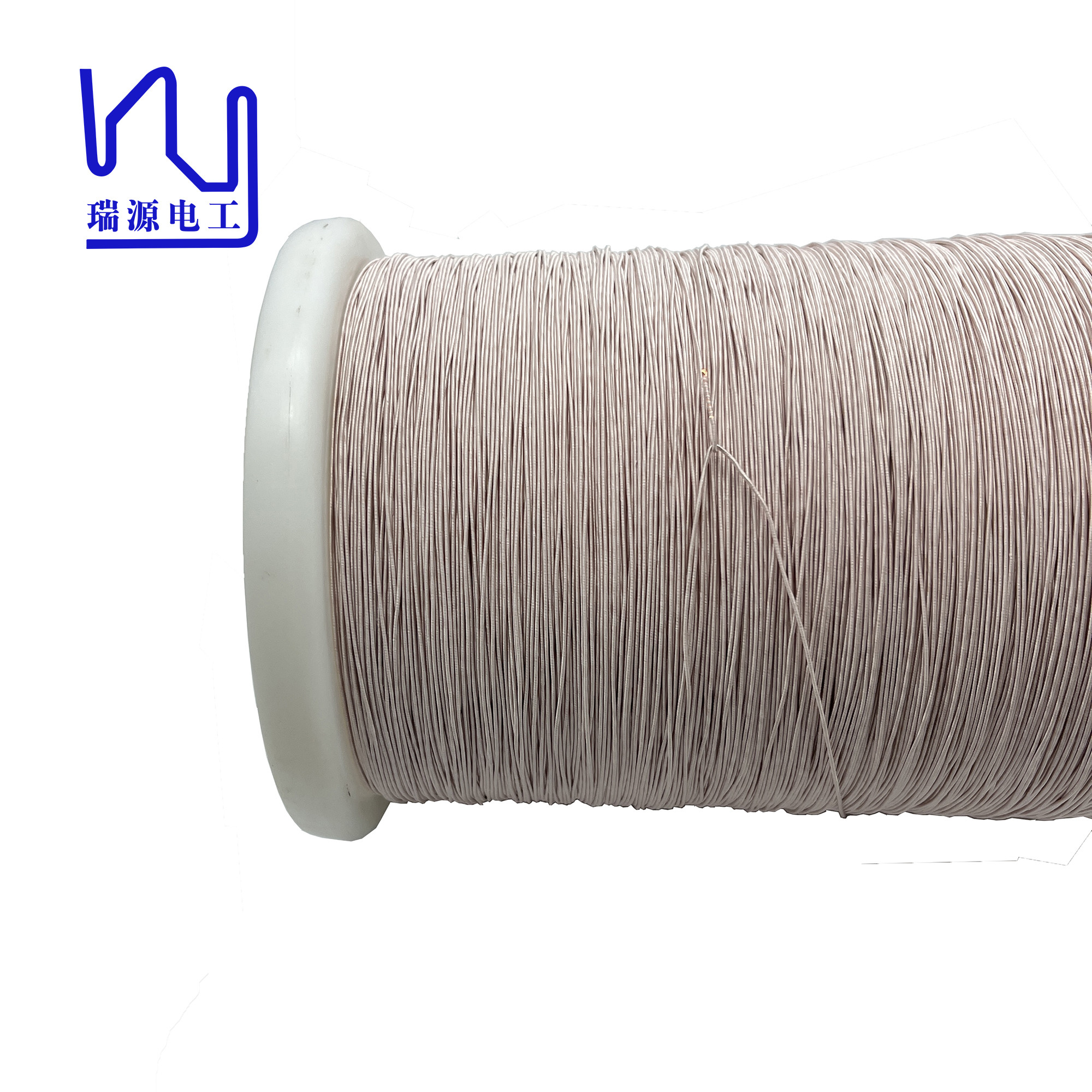

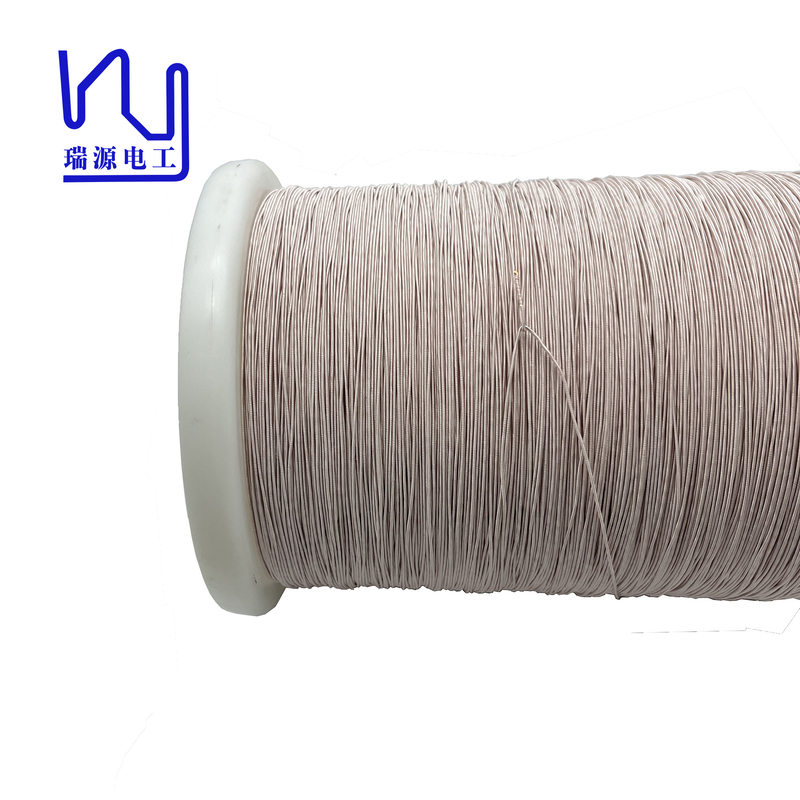

2USTC155 Litz wire 84 / 0.071 strands nylon served copper litz wire
Silk covered litz wire is a high quality wire with silk as the outer sheath for excellent insulation and durability. This wire is widely used in the manufacture of electronic products, making electronic products safer, more stable and durable.
|
2USTC155 Litz wire 84 / 0.071 strands nylon served copper litz wire |
|||
|
Item |
Technical requirement(mm) |
Sample 1 |
Sample 2 |
|
Outer diameter |
0.077-0.084 |
0.078 |
0.081 |
|
Conductor diameter(mm) |
0.071±0.003 |
0.068 |
0.07 |
|
Pitch(mm) |
29±5 |
√ |
√ |
|
Conductor Resistance(Ω/km at 20℃) |
Max. 0.05940 |
0.0541 |
0.0540 |
|
Breakdow Voltage(v) |
Min.950 |
3400 |
3000 |
|
Key word |
2USTC155 Litz wire 84 / 0.071 strands nylon served copper litz wire |
||
