| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC Litz Wire Copper Conductor 0.05mm 0.06mm 0.071mm Nylon Served Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.071mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC Litz Wire Copper Conductor 0.05mm 0.06mm 0.071mm Nylon Served Litz Wire |
| No. Of Strands: | 84 | ||
| Highlight: | ustc copper conductor litz wire,0.05mm litz wire,0.06mm litz cable |
||

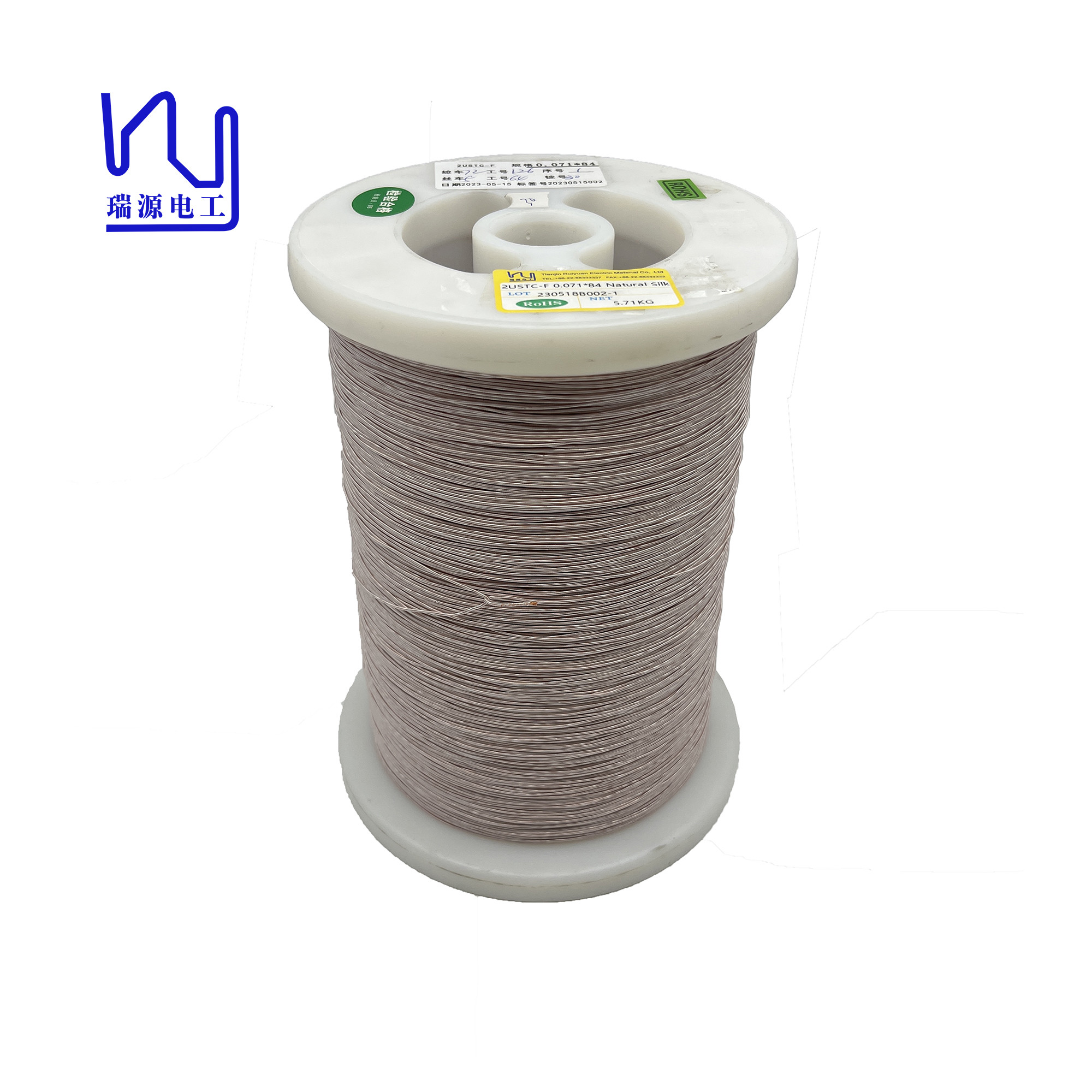

USTC Litz Wire Copper Conductor 0.05mm 0.06mm 0.071mm nylon served litz wire
The silk covered litz wire is made of multiple strands, which can not only improve the conductivity, but also reduce the electromagnetic interference of the wire line, improve the stability of signal transmission, and further improve the performance of electronic products.
|
USTC Litz Wire Copper Conductor 0.05mm 0.06mm 0.071mm nylon served litz wire |
|||
|
Item |
Technical requirement(mm) |
Sample 1 |
Sample 2 |
|
Outer diameter |
0.077-0.084 |
0.078 |
0.081 |
|
Conductor diameter(mm) |
0.071±0.003 |
0.068 |
0.07 |
|
Pitch(mm) |
29±5 |
√ |
√ |
|
Conductor Resistance(Ω/km at 20℃) |
Max. 0.05940 |
0.0541 |
0.0540 |
|
Breakdow Voltage(v) |
Min.950 |
3400 |
3000 |
|
Key word |
USTC Litz Wire Copper Conductor 0.05mm 0.06mm 0.071mm nylon served litz wire |
||
