| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC UDTC Litz Wire Custom Natural Silk Served Litz Wire For Motor / Transformer Winding | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.071mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC UDTC Litz Wire Custom Natural Silk Served Litz Wire For Motor / Transformer Winding |
| No. Of Strands: | 84 | ||
| Highlight: | 0.071 mm ustc litz wire,motor winding ustc litz wire,transformer winding hf litz wire |
||

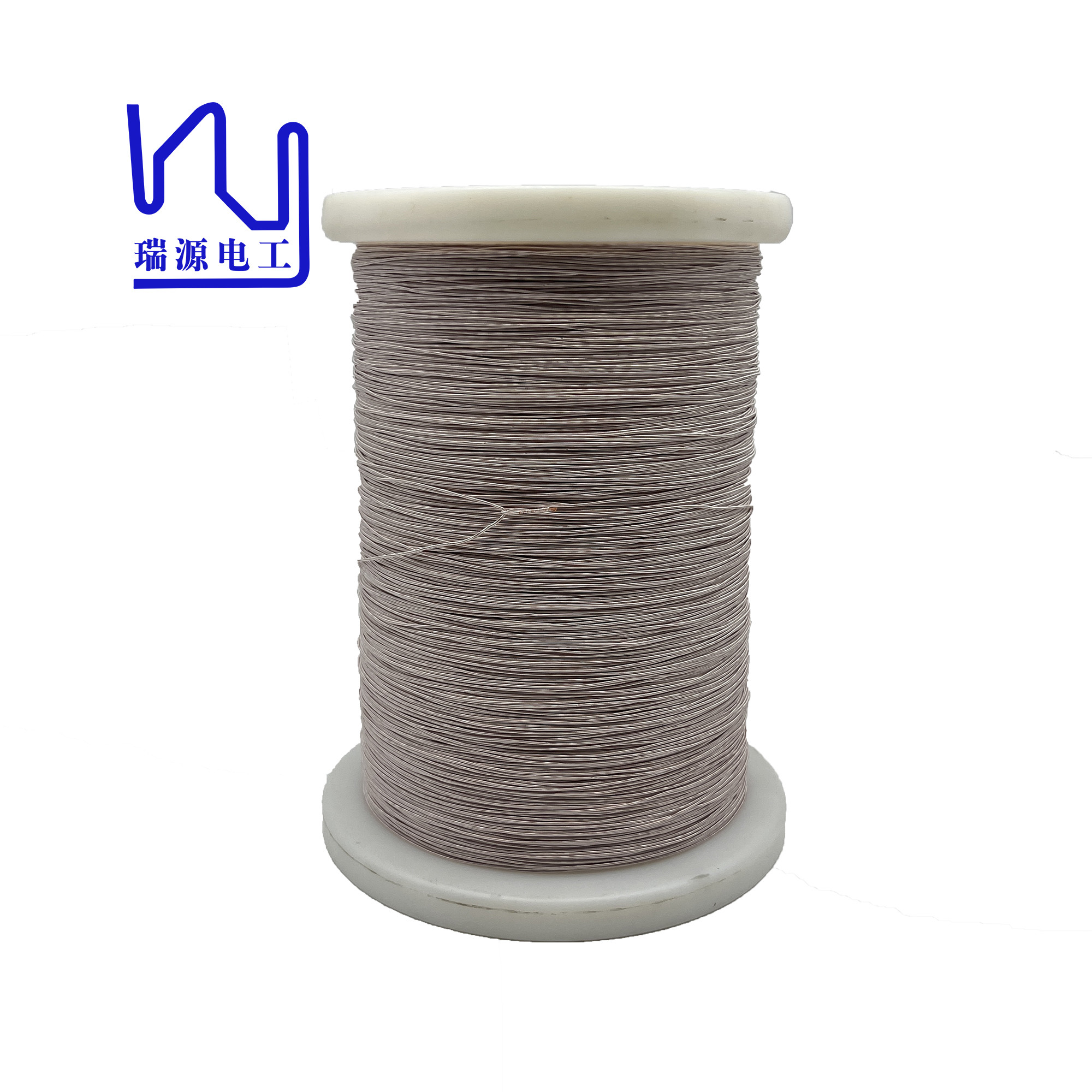

USTC UDTC Litz Wire Custom Natural Silk Served Litz Wire For Motor / Transformer winding
Silk covered litz wire is mainly used in the manufacture of electronic products, such as mobile phones, tablets, computers and so on. Due to the excellent insulating properties of silk, silk covered Litz wire can effectively protect electronic products and at the same time increase their service life.
|
USTC UDTC Litz Wire Custom Natural Silk Served Litz Wire For Motor / Transformer winding |
|||
|
Item |
Technical requirement(mm) |
Sample 1 |
Sample 2 |
|
Outer diameter |
0.077-0.084 |
0.078 |
0.081 |
|
Conductor diameter(mm) |
0.071±0.003 |
0.068 |
0.07 |
|
Pitch(mm) |
29±5 |
√ |
√ |
|
Conductor Resistance(Ω/km at 20℃) |
Max. 0.05940 |
0.0541 |
0.0540 |
|
Breakdow Voltage(v) |
Min.950 |
3400 |
3000 |
|
Key word |
USTC UDTC Litz Wire Custom Natural Silk Served Litz Wire For Motor / Transformer winding |
||
