| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC Litz Wire Custom Super Thin 0.07mm 0.071mm Natural Silk Served Litz Wire Copper Solid | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.071mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC Litz Wire Custom Super Thin 0.07mm 0.071mm Natural Silk Served Litz Wire Copper Solid |
| No. Of Strands: | 84 | ||
| Highlight: | ustc litz copper wire,super thin litz copper wire,0.07 mm copper litz wire |
||

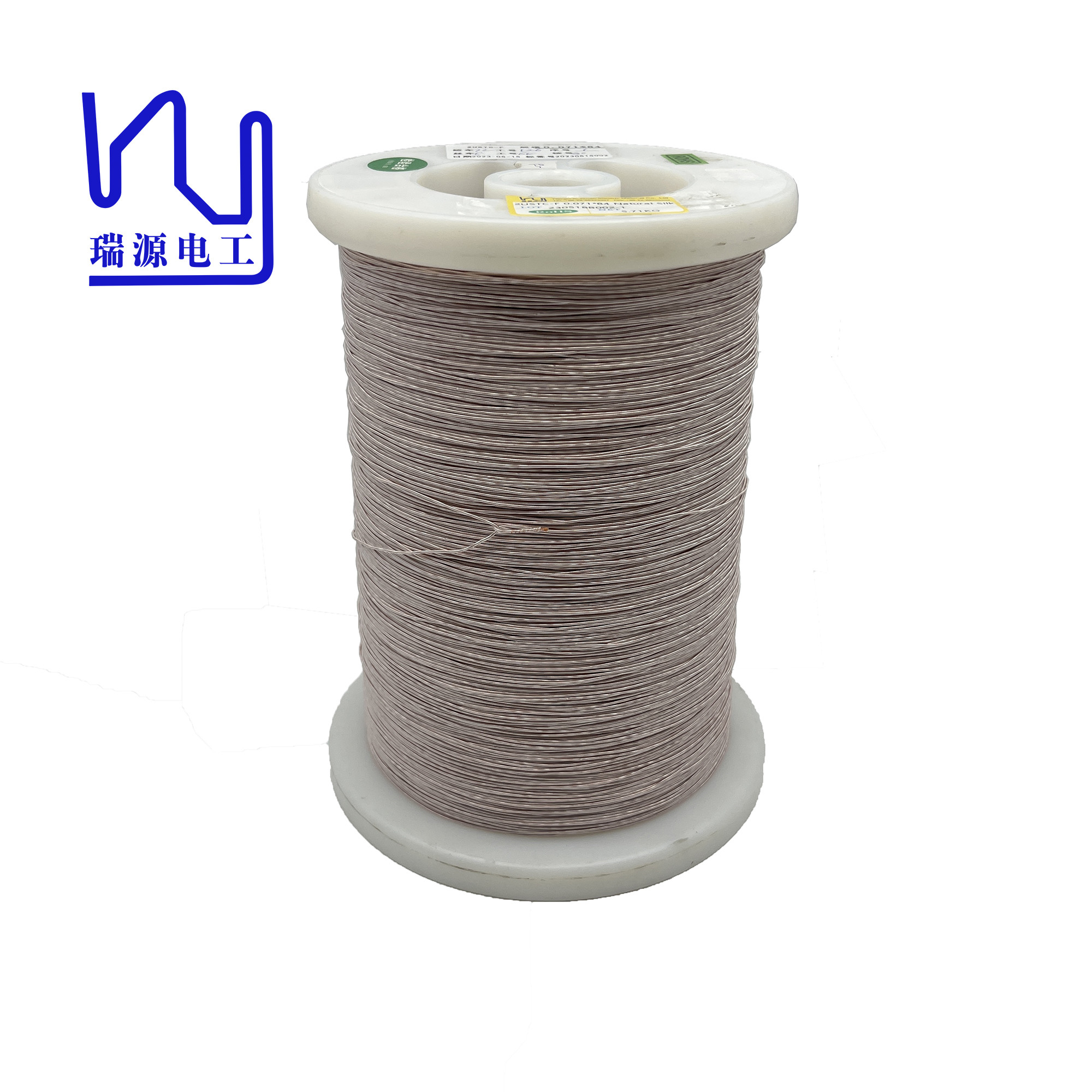

USTC Litz Wire Custom Super Thin 0.07mm 0.071mm Natural Silk Served Litz Wire Copper Solid
Silk covered litz wire is mainly used in the manufacture of electronic products, such as mobile phones, tablets, computers and so on. Due to the excellent insulating properties of silk, silk covered Litz wire can effectively protect electronic products and at the same time increase their service life.
|
USTC Litz Wire Custom Super Thin 0.07mm 0.071mm Natural Silk Served Litz Wire Copper Solid |
|||
|
Item |
Technical requirement(mm) |
Sample 1 |
Sample 2 |
|
Outer diameter |
0.077-0.084 |
0.078 |
0.081 |
|
Conductor diameter(mm) |
0.071±0.003 |
0.068 |
0.07 |
|
Pitch(mm) |
29±5 |
√ |
√ |
|
Conductor Resistance(Ω/km at 20℃) |
Max. 0.05940 |
0.0541 |
0.0540 |
|
Breakdow Voltage(v) |
Min.950 |
3400 |
3000 |
|
Key word |
USTC Litz Wire Custom Super Thin 0.07mm 0.071mm Natural Silk Served Litz Wire Copper Solid |
||
