| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC 155 0.071mm*84 Natural Silk Served Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.071mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC 155 0.071mm*84 Natural Silk Served Copper Litz Wire |
| No. Of Strands: | 84 | ||
| Highlight: | ustc served litz wire,155 ustc litz wire,enamelled copper served litz wire |
||

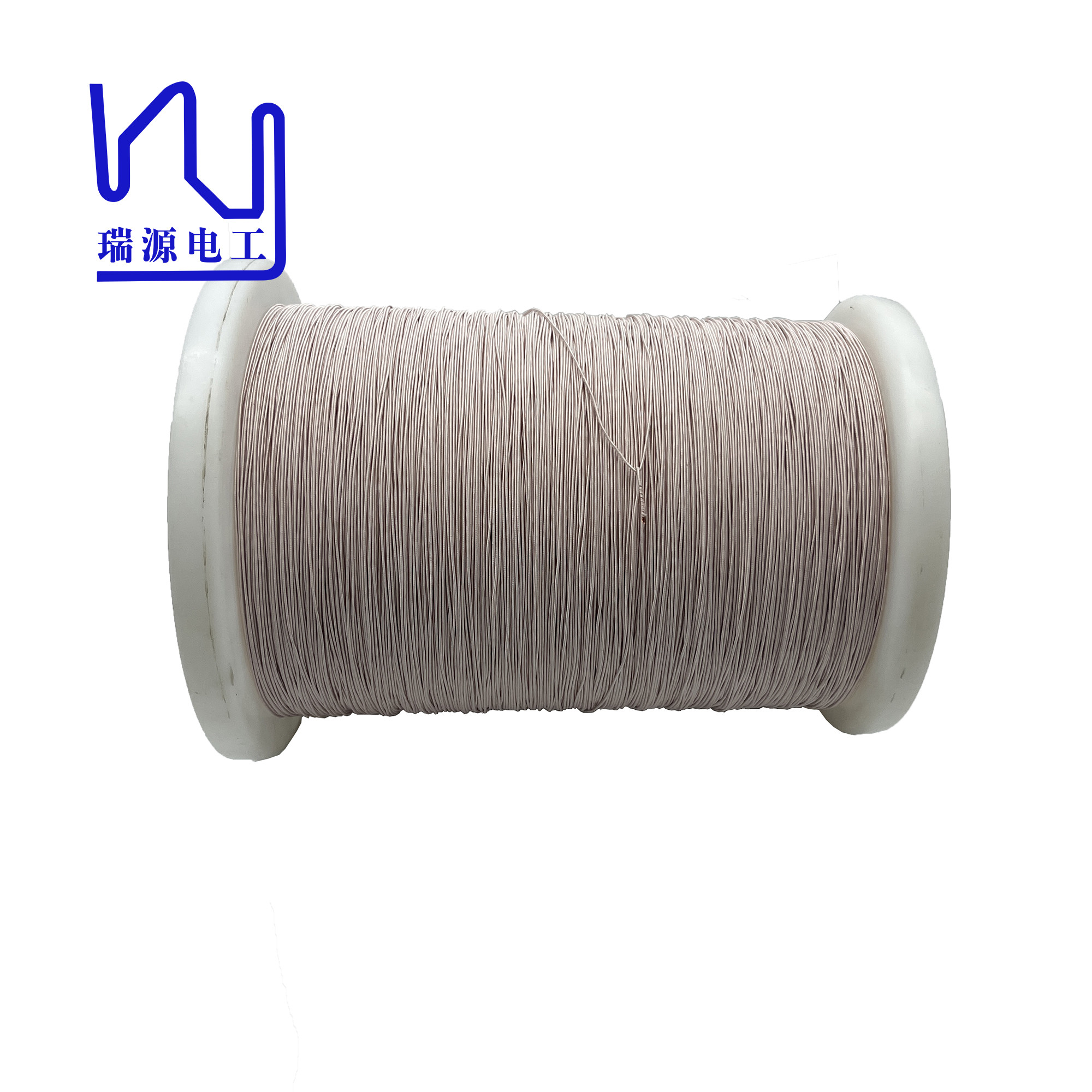

USTC 155 0.071mm*84 Natural Silk Served Copper Litz Wire
Our Silk Covered Litz Wire is a high quality wire made of twisted solderable enamelled copper wire. This kind of wire can use a single wire ranging from 0.025mm to 0.8mm, that is to say, it can meet the needs of various electronic devices. What's more, the outer covering of our wires can choose from silk, polyester and nylon, and this cord uses silk as the jacket.
| Item0.071mm*84 silk covered litz wire | |||
| Item | Technical requirement(mm) | Sample 1 | Sample 2 |
| Outer diameter | 0.077-0.084 | 0.078 | 0.081 |
| Conductor diameter(mm) | 0.071±0.003 | 0.068 | 0.07 |
| Pitch(mm) | 29±5 | √ | √ |
| Conductor Resistance(Ω/km at 20℃) | Max. 0.05940 | 0.0541 | 0.0540 |
| Breakdow Voltage(v) | Min.950 | 3400 | 3000 |
| Key word | Item0.071mm*84 silk covered litz wire | ||
