| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2USTC F/H Custom 0.08mmx10 Nylon Silk Served Litz Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2USTC F/H Custom 0.08mmx10 Nylon Silk Served Litz Copper Wire |
| No. Of Strands: | 10 | ||
| Highlight: | 2ustc litz copper wire,enamel litz copper wire,0.08 mm litz wire |
||

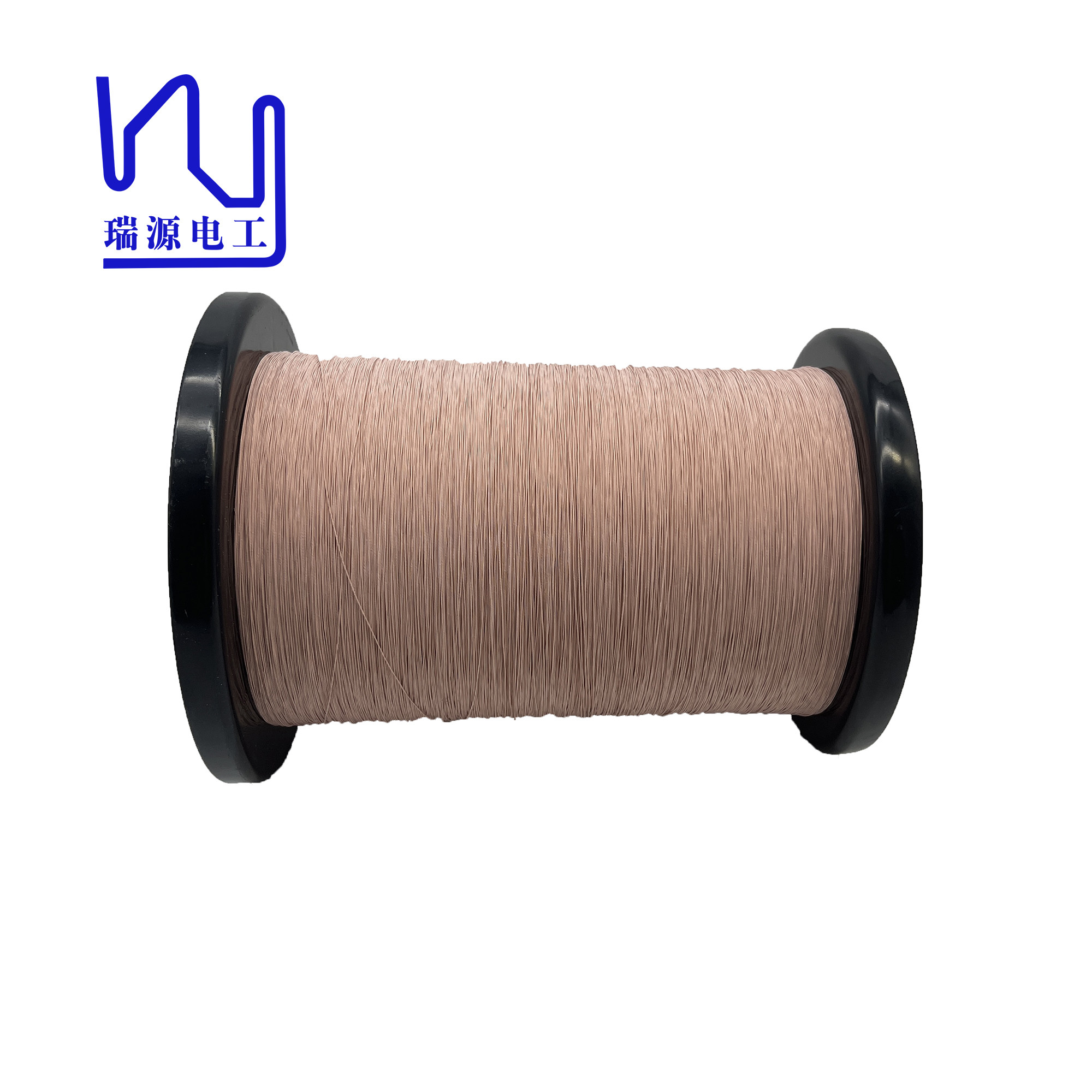

2USTC F/H Custom 0.08mmx10 Nylon Silk Served Litz Copper Wire
In terms of medical equipment, silk covered Litz wire can withstand high electrical stress and high temperature, making it suitable for use in a variety of medical equipment applications.
In the field of aerospace,silk covered Litz wire has the characteristics of high impedance, low magnetic loss, high temperature resistance and low noise, which can realize high-speed and high-quality data transmission.
|
2USTC F/H Custom 0.08mmx10 Nylon Silk Served Litz Copper Wire |
||
|
Key word:2USTC F/H Custom 0.08mmx10 Nylon Silk Served Litz Copper Wire |
|
Description Conductor diameter*Strand number |
1USTC-F 0.08*10 |
|
|
Single wire |
Conductor diameter(mm) | 0.080 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.007 | |
| Maximal overall diameter (mm) | 0.120 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 10 |
| Pitch(mm) | 29±5 | |
| Stranding direction | S | |
|
Insulation layer |
Category | Polyester |
| UL | / | |
| Material specs(mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D (mm) | 0.45 |
| Max pin holes 个/6m | 20 | |
| Max resistance (Ω/Km at20℃) | 377.5 | |
| Mini breakdown voltage (V ) | 2000 | |
|
Package |
spool | PT- 10 |
| Length per kg (m) | 2140 | |
