| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC 155 0.08mm*10 Strands Copper Wire Nylon Served Silk Covered Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC 155 0.08mm*10 Strands Copper Wire Nylon Served Silk Covered Litz Wire |
| No. Of Strands: | 10 | ||
| Highlight: | ustc 155 copper litz wire,10 strands copper litz wire,enamelled litz copper wire |
||

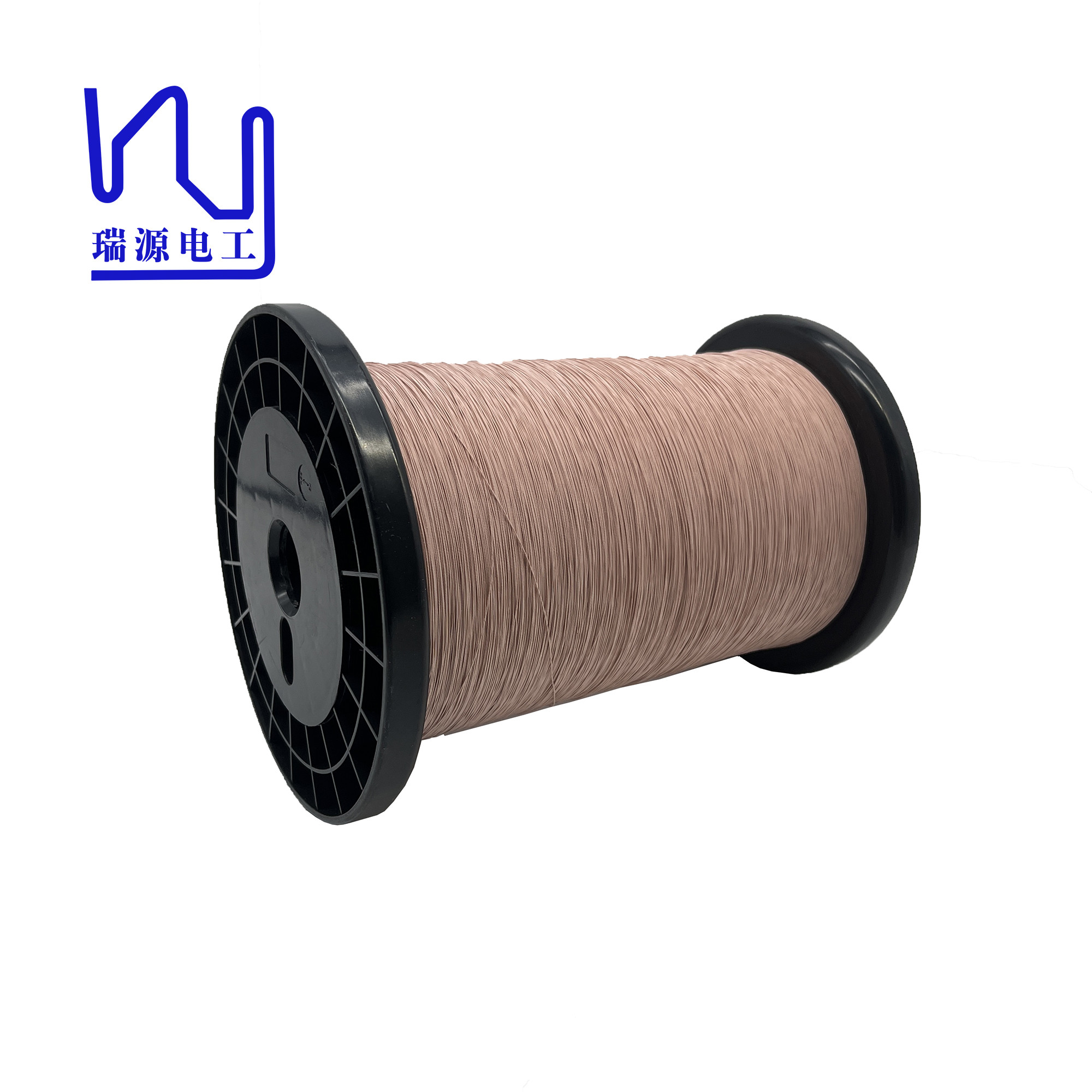

USTC 155 0.08mm*10 Strands Copper Wire Nylon Served Silk Covered Litz Wire
In terms of audio equipment, silk covered Litz wire can provide high-quality sound signals, thereby optimizing sound quality and listening experience.
In terms of medical equipment, silk covered Litz wire can withstand high electrical stress and high temperature, making it suitable for use in a variety of medical equipment applications.
|
USTC 155 0.08mm*10 Strands Copper Wire Nylon Served Silk Covered Litz Wire |
||
|
Key word:USTC 155 0.08mm*10 Strands Copper Wire Nylon Served Silk Covered Litz Wire |
|
Description Conductor diameter*Strand number |
1USTC-F 0.08*10 |
|
|
Single wire |
Conductor diameter(mm) | 0.080 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.007 | |
| Maximal overall diameter (mm) | 0.120 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 10 |
| Pitch(mm) | 29±5 | |
| Stranding direction | S | |
|
Insulation layer |
Category | Polyester |
| UL | / | |
| Material specs(mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D (mm) | 0.45 |
| Max pin holes 个/6m | 20 | |
| Max resistance (Ω/Km at20℃) | 377.5 | |
| Mini breakdown voltage (V ) | 2000 | |
|
Package |
spool | PT- 10 |
| Length per kg (m) | 2140 | |
