| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 1USTC/2USTC F/H 0.08mm*10 Copper Winding Wire Nylon Served Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 1USTC/2USTC F/H 0.08mm*10 Copper Winding Wire Nylon Served Litz Wire |
| No. Of Strands: | 10 | ||
| Highlight: | 1ustc copper winding wire,super enamelled copper winding wire,2ustc copper litz wire |
||

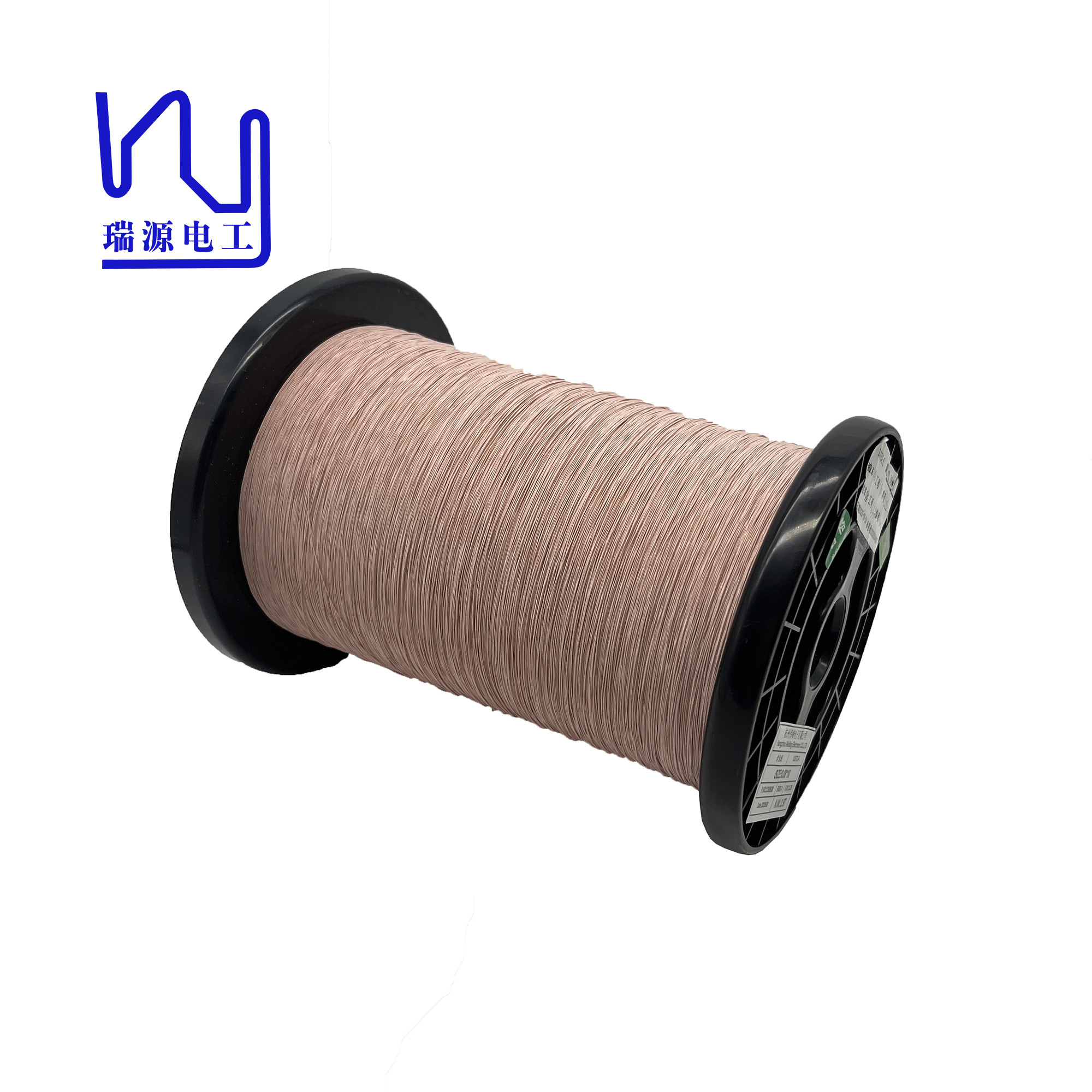

1USTC/2USTC F/H 0.08mm*10 Copper Winding Wire Nylon Served Litz Wire
silk covered Litz wire is widely used in transformers, and it plays an important role in providing stable power, voltage conversion and power filtering.
In the field of wireless communication, silk covered Litz wire can withstand high demodulation frequency and provide stable transmission signals, thus ensuring high-quality communication and data transmission.
|
1USTC/2USTC F/H 0.08mm*10 Copper Winding Wire Nylon Served Litz Wire |
||
|
Key word: 1USTC/2USTC F/H 0.08mm*10 Copper Winding Wire Nylon Served Litz Wire |
|
Description Conductor diameter*Strand number |
1USTC-F 0.08*10 |
|
|
Single wire |
Conductor diameter(mm) | 0.080 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.007 | |
| Maximal overall diameter (mm) | 0.120 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 10 |
| Pitch(mm) | 29±5 | |
| Stranding direction | S | |
|
Insulation layer |
Category | Polyester |
| UL | / | |
| Material specs(mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D (mm) | 0.45 |
| Max pin holes 个/6m | 20 | |
| Max resistance (Ω/Km at20℃) | 377.5 | |
| Mini breakdown voltage (V ) | 2000 | |
|
Package |
spool | PT- 10 |
| Length per kg (m) | 2140 | |
