| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 1USTC-F 0.08mm*10 Nylon Served Copper Winding Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 1USTC-F 0.08mm*10 Nylon Served Copper Winding Litz Wire |
| No. Of Strands: | 10 | ||
| Highlight: | 1ustc-f winding wire,0.08 mm winding wire,10 strands copper winding wire |
||

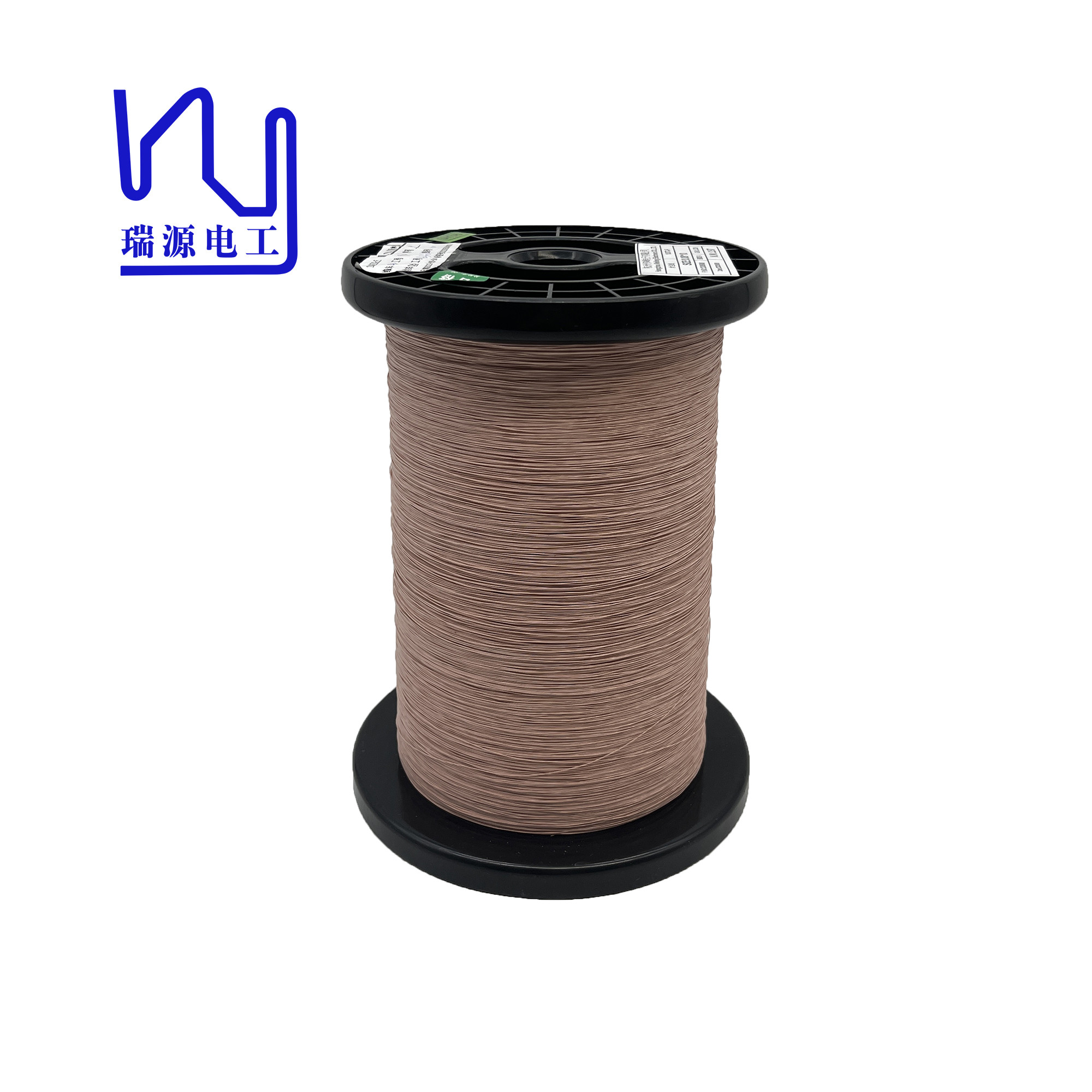

1USTC-F 0.08mm*10 Nylon Served Copper Winding Litz Wire
The high quality of the silk covered Litz wire ensures the efficient performance and reliability of the equipment. Its production process is very precise, ensuring that each wire can provide excellent performance and smooth electrical connection. This makes it ideal for use in the manufacture of electronic devices that require robust performance and stable connections to ensure efficient operation and reliable results
|
1USTC-F 0.08mm*10 Nylon Served Copper Winding Litz Wire |
||
|
Key word: 1USTC-F 0.08mm*10 Nylon Served Copper Winding Litz Wire |
|
Description Conductor diameter*Strand number |
1USTC-F 0.08*10 |
|
|
Single wire |
Conductor diameter(mm) | 0.080 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.007 | |
| Maximal overall diameter (mm) | 0.120 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 10 |
| Pitch(mm) | 29±5 | |
| Stranding direction | S | |
|
Insulation layer |
Category | Polyester |
| UL | / | |
| Material specs(mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D (mm) | 0.45 |
| Max pin holes 个/6m | 20 | |
| Max resistance (Ω/Km at20℃) | 377.5 | |
| Mini breakdown voltage (V ) | 2000 | |
|
Package |
spool | PT- 10 |
| Length per kg (m) | 2140 | |
