| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 1USTC-F 40AWG/10 Nylon / Polyester Served Copper Litz Wire Silk Covered Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 1USTC-F 40AWG/10 Nylon / Polyester Served Copper Litz Wire Silk Covered Litz Wire |
| No. Of Strands: | 10 | ||
| Highlight: | ustc enamel coated wire,40 gauge enamel coated wire,40awg copper litz wire |
||

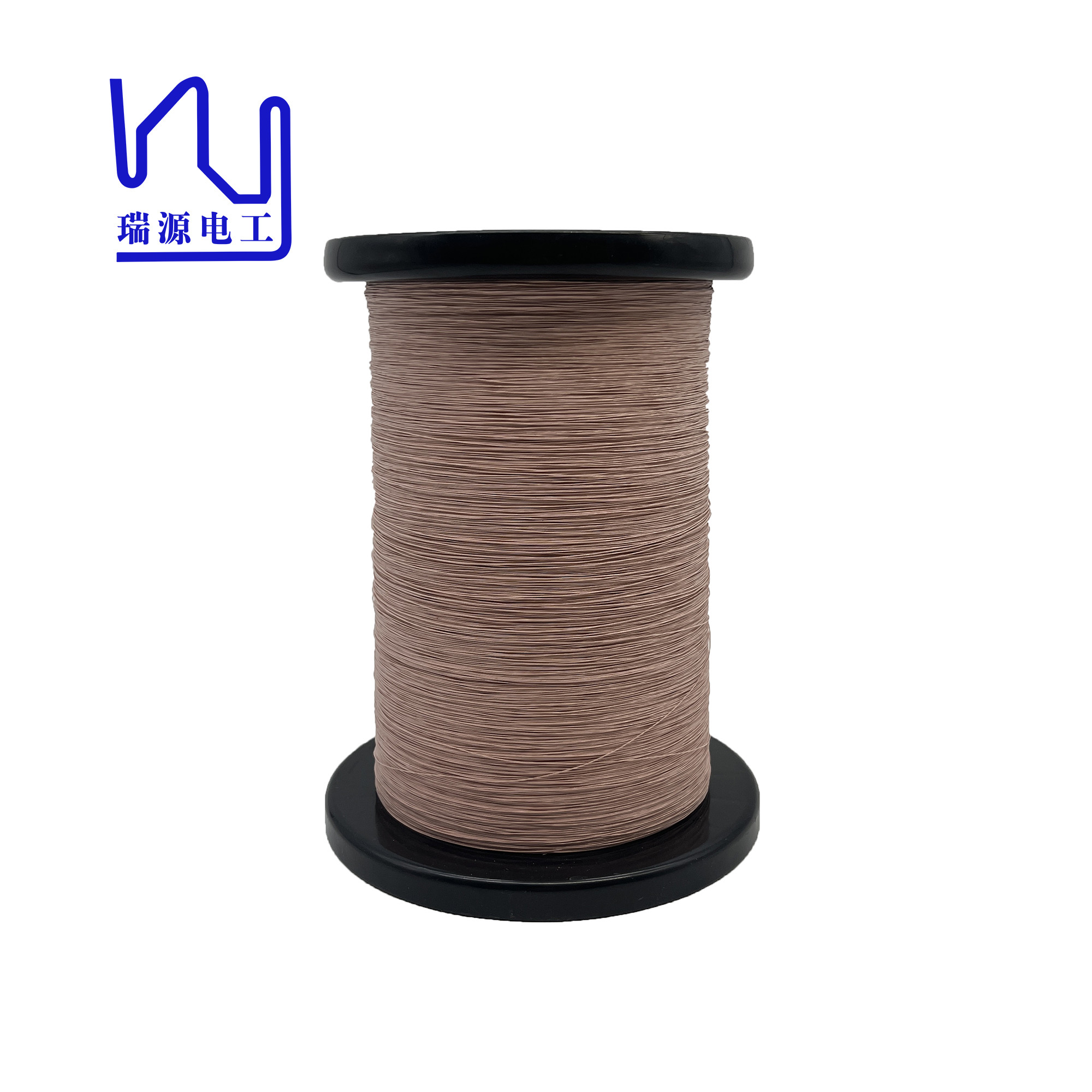

1USTC-F 40AWG/10 Nylon / Polyester Served Copper Litz Wire Silk Covered Litz Wire
Silk covered Litz wire is a high-quality, high-durability electronic wire.The wire is made of 10 enamelled copper wires with a single wire diameter of 0.08mm twisted, and the outer jacket is made of polyester yarn. The thermal grade of this wire is 155 degrees and it can withstand voltages up to 1300V, so it is suitable for most electronic equipment, especially transformers, wireless transmission, audio equipment, medical equipment and aerospace fields.
|
Product name:1USTC-F 40AWG/10 Nylon / Polyester Served Copper Litz Wire Silk Covered Litz Wire |
||
|
Key word:1USTC-F 40AWG/10 Nylon / Polyester Served Copper Litz Wire Silk Covered Litz Wire |
|
Description Conductor diameter*Strand number |
1USTC-F 0.08*10 |
|
|
Single wire |
Conductor diameter(mm) | 0.080 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.007 | |
| Maximal overall diameter (mm) | 0.120 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 10 |
| Pitch(mm) | 29±5 | |
| Stranding direction | S | |
|
Insulation layer |
Category | Polyester |
| UL | / | |
| Material specs(mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D (mm) | 0.45 |
| Max pin holes 个/6m | 20 | |
| Max resistance (Ω/Km at20℃) | 377.5 | |
| Mini breakdown voltage (V ) | 2000 | |
|
Package |
spool | PT- 10 |
| Length per kg (m) | 2140 | |
