| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 38awg 0.1mm / 155 UDTC Silk Covered Litz Wire Nylon Wrapped Stranded Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 38awg 0.1mm / 155 UDTC Silk Covered Litz Wire Nylon Wrapped Stranded Copper Wire |
| No. Of Strands: | 155 | ||
| Highlight: | 38 awg litz wire,0.1 mm litz copper wire,nylon wrapped stranded litz copper wire |
||

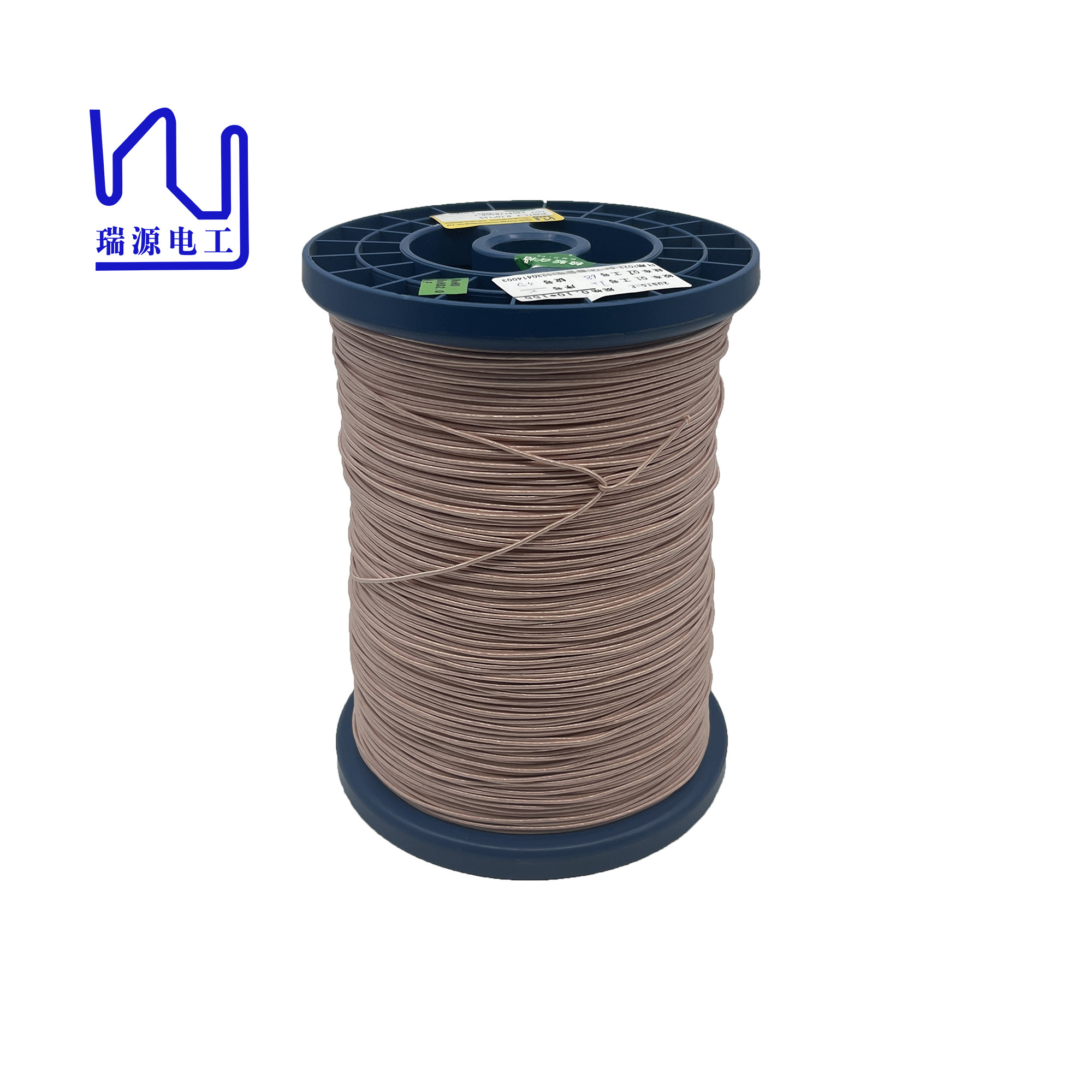

38awg 0.1mm / 155 UDTC Silk Covered Litz Wire Nylon Wrapped Stranded Copper Wire
The size range we can make is 0.03-0.8mm, and NO.of strands is 2-4000. Sometimes customer need twist the wire with multiple twisting, we can make according to you request.We look forward to providing you with the highest quality high frequency litz wire products and services.
|
Product name:38awg 0.1mm / 155 UDTC Silk Covered Litz Wire Nylon Wrapped Stranded Copper Wire |
||
|
Key word:38awg 0.1mm / 155 UDTC Silk Covered Litz Wire Nylon Wrapped Stranded Copper Wire |
||
|
Description |
2USTC- F |
|
|
Single wire
|
Conductor diameter(mm) |
0. 100 |
|
Conductor diameter tolerance (mm) |
±0.003 |
|
|
Minimal insulation thickness(mm) |
0 .005 |
|
|
Maximal overall diameter (mm) |
0 . 125 |
|
|
Thermal Class(℃) |
155 |
|
|
|
Strand number |
155 |
|
Pitch(mm) |
29± 5 |
|
|
Stranding direction |
S |
|
|
|
Category |
Nylon |
|
Material specs(mm*mm or D) |
300 |
|
|
Times of Wrapping |
1 |
|
|
Overlap(%) or thickness(mm),mini |
0.02 |
|
|
Wrapping direction |
S |
|
|
|
Max O. D (mm) |
1.74 |
|
Max pin holes 个/6m |
50 |
|
|
Max resistance (Ω/Km at20℃) |
15.36 |
|
|
Mini breakdown voltage (V ) |
1100 |
|
|
Package |
Spool |
PT- 10 |
