| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.03m-0.8mm Silk Covered Double Layer High Frequency Litz Wire Insulated Copper | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.03m-0.8mm Silk Covered Double Layer High Frequency Litz Wire Insulated Copper |
| No. Of Strands: | 155 | ||
| Highlight: | 0.03 mm high frequency litz wire,double layer high frequency litz wire,0.8 mm hf litz wire |
||

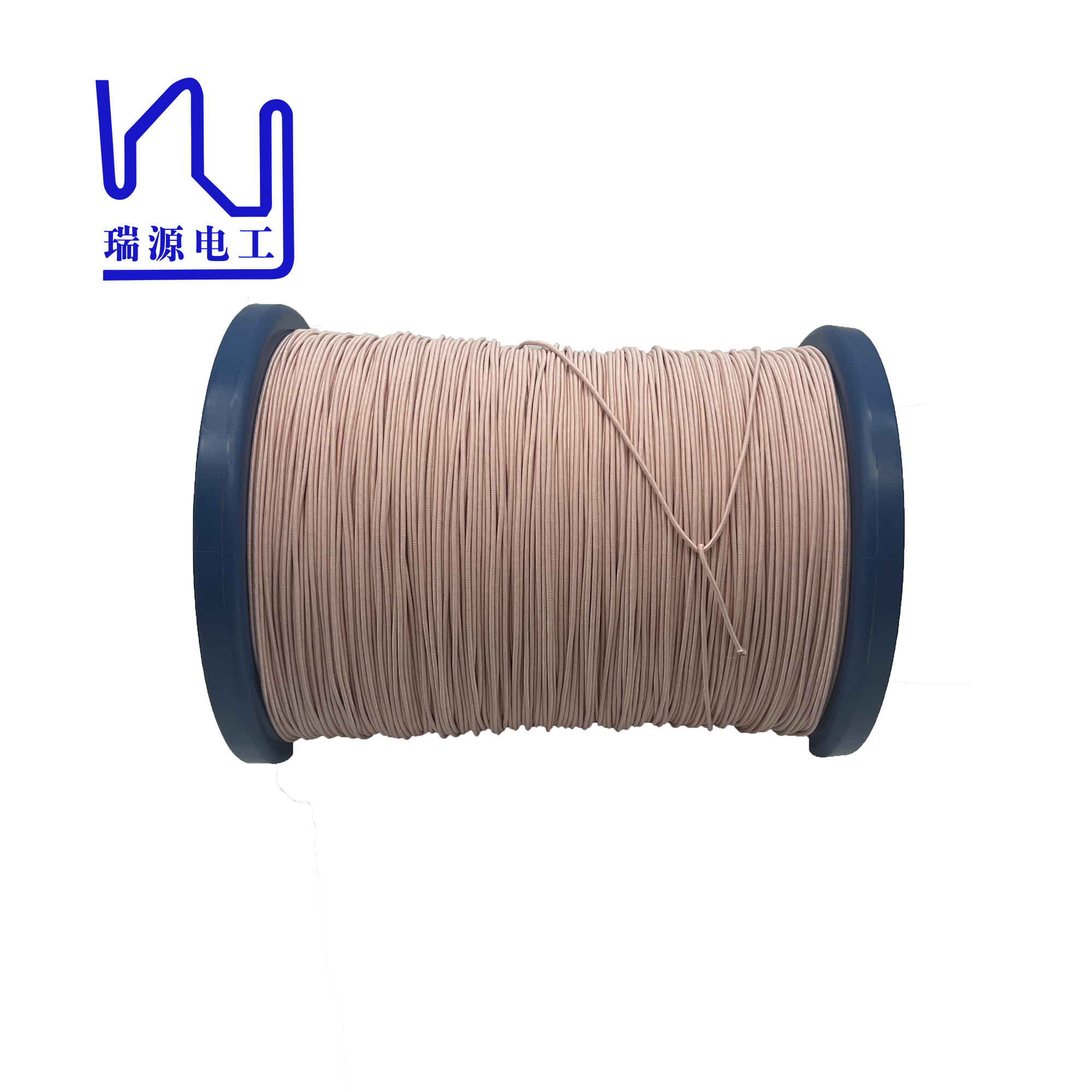

0.03m-0.8mm Silk Covered Double Layer High Frequency Litz Wire Insulated Copper
This wire is suitable for high-frequency electronic products, such as computer networks, communication equipment, automotive electronics, and medical equipment. The advantage of nylon served litz wire is that it can provide better insulation performance, making electronic products safer and more reliable. It also has better signal transmission performance than other types of cables, capable of transmitting higher frequency signals. In addition, nylon served litz wire also has strong mechanical strength and durability, and can be used for a long time in complex environments.
| Product name:0.03m-0.8mm Silk Covered Double Layer High Frequency Litz Wire Insulated Copper | ||
| Key word:0.03m-0.8mm Silk Covered Double Layer High Frequency Litz Wire Insulated Copper | ||
| Description Conductor diameter*Strand number |
2USTC- F 0. 10*155 |
|
|
Single wire
|
Conductor diameter(mm) | 0. 100 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0 .005 | |
| Maximal overall diameter (mm) | 0 . 125 | |
| Thermal Class(℃) | 155 | |
|
|
Strand number | 155 |
| Pitch(mm) | 29± 5 | |
| Stranding direction | S | |
|
|
Category | Nylon |
| Material specs(mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
|
Max O. D (mm) | 1.74 |
| Max pin holes 个/6m | 50 | |
| Max resistance (Ω/Km at20℃) | 15.36 | |
| Mini breakdown voltage (V ) | 1100 | |
| Package | Spool | PT- 10 |
