| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Silk Covered High Frequency Litz Wire 0.10mm * 155 Enamel Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Silk Covered High Frequency Litz Wire 0.10mm * 155 Enamel Copper Wire |
| No. Of Strands: | 155 | ||
| Highlight: | silk covered hf litz wire,enamel copper hf litz wire,0.10 mm high frequency litz wire |
||

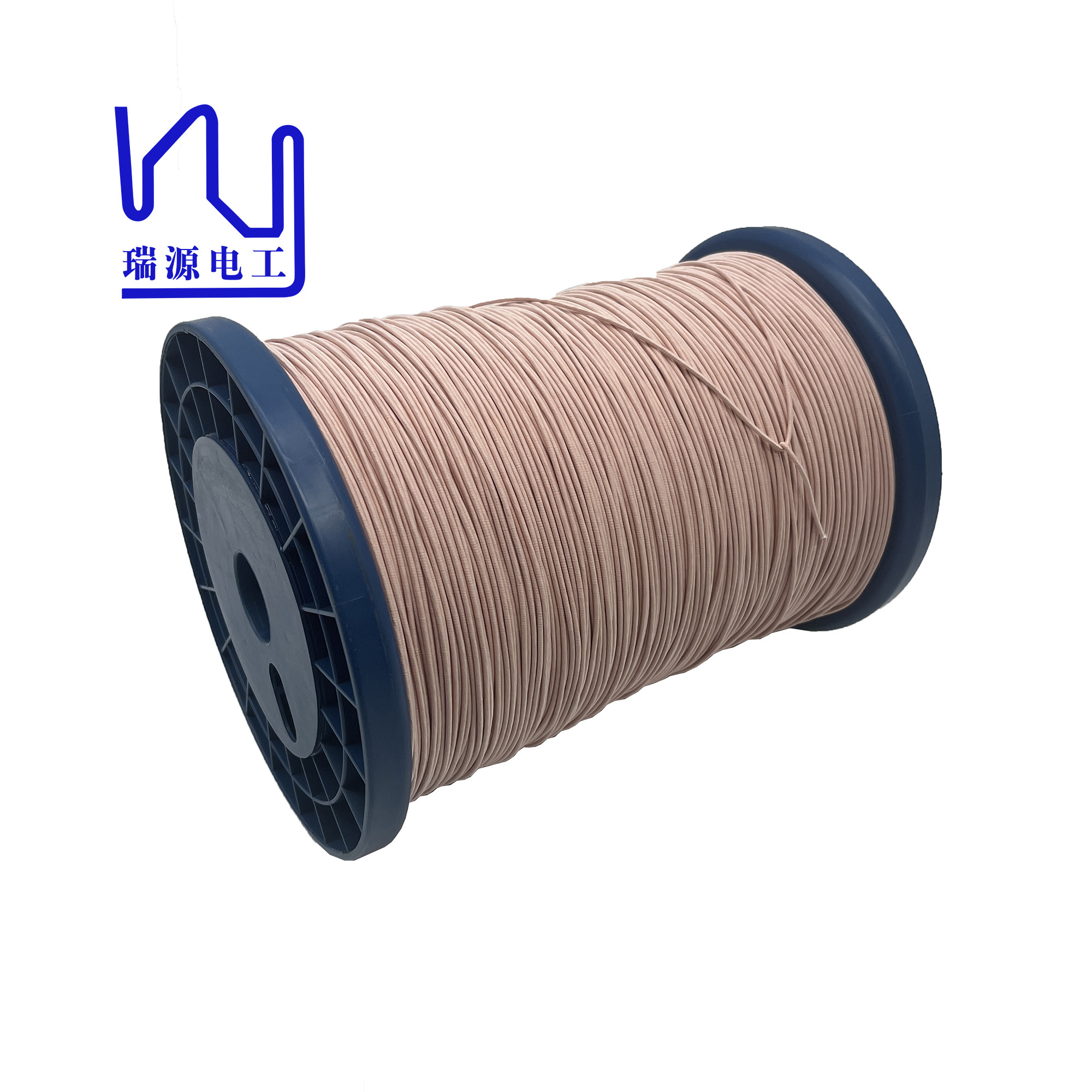

Silk Covered High Frequency Litz Wire 0.10mm * 155 Enamel Copper Wire
The diameter of the single wire is 30awg(0.1mm) the number of strands is 155, and the temperature resistance of the wire is 155 degrees.
This wire is suitable for high-frequency electronic products, such as computer networks, communication equipment, automotive electronics, and medical equipment. The advantage of nylon served litz wire is that it can provide better insulation performance, making electronic products safer and more reliable.
| Product name:Silk Covered High Frequency Litz Wire 0.10mm * 155 Enamel Copper Wire | ||
| Key word:Silk Covered High Frequency Litz Wire 0.10mm * 155 Enamel Copper Wire | ||
| Description Conductor diameter*Strand number |
2USTC- F 0. 10*155 |
|
|
Single wire
|
Conductor diameter(mm) | 0. 100 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0 .005 | |
| Maximal overall diameter (mm) | 0 . 125 | |
| Thermal Class(℃) | 155 | |
|
|
Strand number | 155 |
| Pitch(mm) | 29± 5 | |
| Stranding direction | S | |
|
|
Category | Nylon |
| Material specs(mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
|
Max O. D (mm) | 1.74 |
| Max pin holes 个/6m | 50 | |
| Max resistance (Ω/Km at20℃) | 15.36 | |
| Mini breakdown voltage (V ) | 1100 | |
| Package | Spool | PT- 10 |
