| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Litz Wire 0.1mm*155 Nylon Served Copper Litz Wire Silk Covered Solid | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Litz Wire 0.1mm*155 Nylon Served Copper Litz Wire Silk Covered Solid |
| No. Of Strands: | 155 | ||
| Highlight: | 0.1 mm ustc litz wire,solid ustc litz wire,0.1 mm copper litz wire |
||

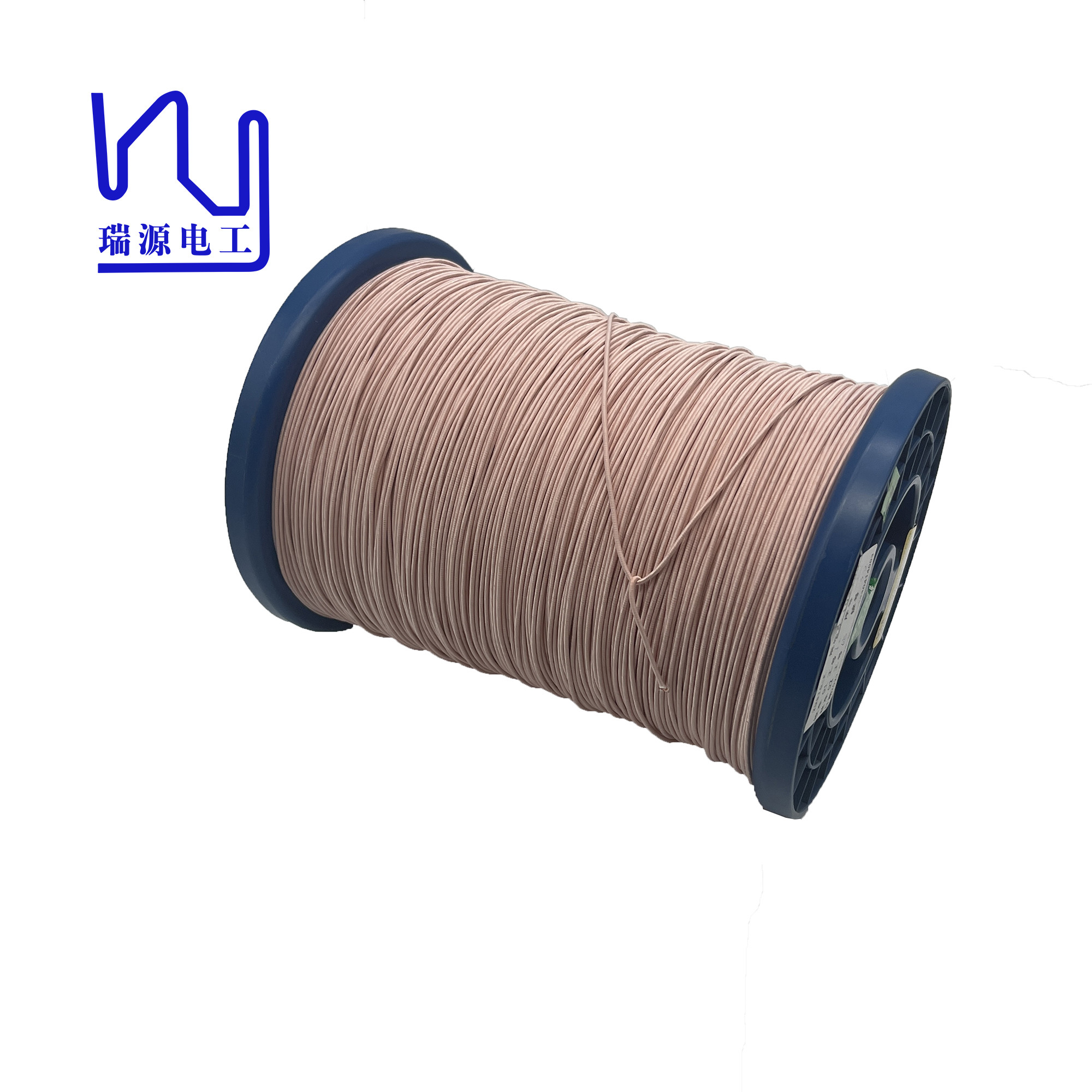

Litz Wire 0.1mm*155 Nylon Served Copper Litz Wire Silk Covered Solid
These wires are produced using the most advanced production technology and strictly follow international standards to ensure the quality and performance of the products.
The nylon silk covered wire is one of our most popular products. This litz wire is covered with a double-layer nylon yarn, which has the advantages of waterproof, abrasion resistance and high temperature resistance.
| Product name:Litz Wire 0.1mm*155 Nylon Served Copper Litz Wire Silk Covered Solid | ||
| Key word:Litz Wire 0.1mm*155 Nylon Served Copper Litz Wire Silk Covered Solid | ||
| Description Conductor diameter*Strand number |
2USTC- F 0. 10*155 |
|
|
Single wire
|
Conductor diameter(mm) | 0. 100 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0 .005 | |
| Maximal overall diameter (mm) | 0 . 125 | |
| Thermal Class(℃) | 155 | |
|
|
Strand number | 155 |
| Pitch(mm) | 29± 5 | |
| Stranding direction | S | |
|
|
Category | Nylon |
| Material specs(mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
|
Max O. D (mm) | 1.74 |
| Max pin holes 个/6m | 50 | |
| Max resistance (Ω/Km at20℃) | 15.36 | |
| Mini breakdown voltage (V ) | 1100 | |
| Package | Spool | PT- 10 |
