| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Litz Wire 155 / 38awg Nylon /Polyester Served Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Litz Wire 155 / 38awg Nylon /Polyester Served Copper Litz Wire |
| No. Of Strands: | 155 | ||
| Highlight: | polyester served copper litz wire,38 gauge copper litz wire,38 awg served litz wire |
||

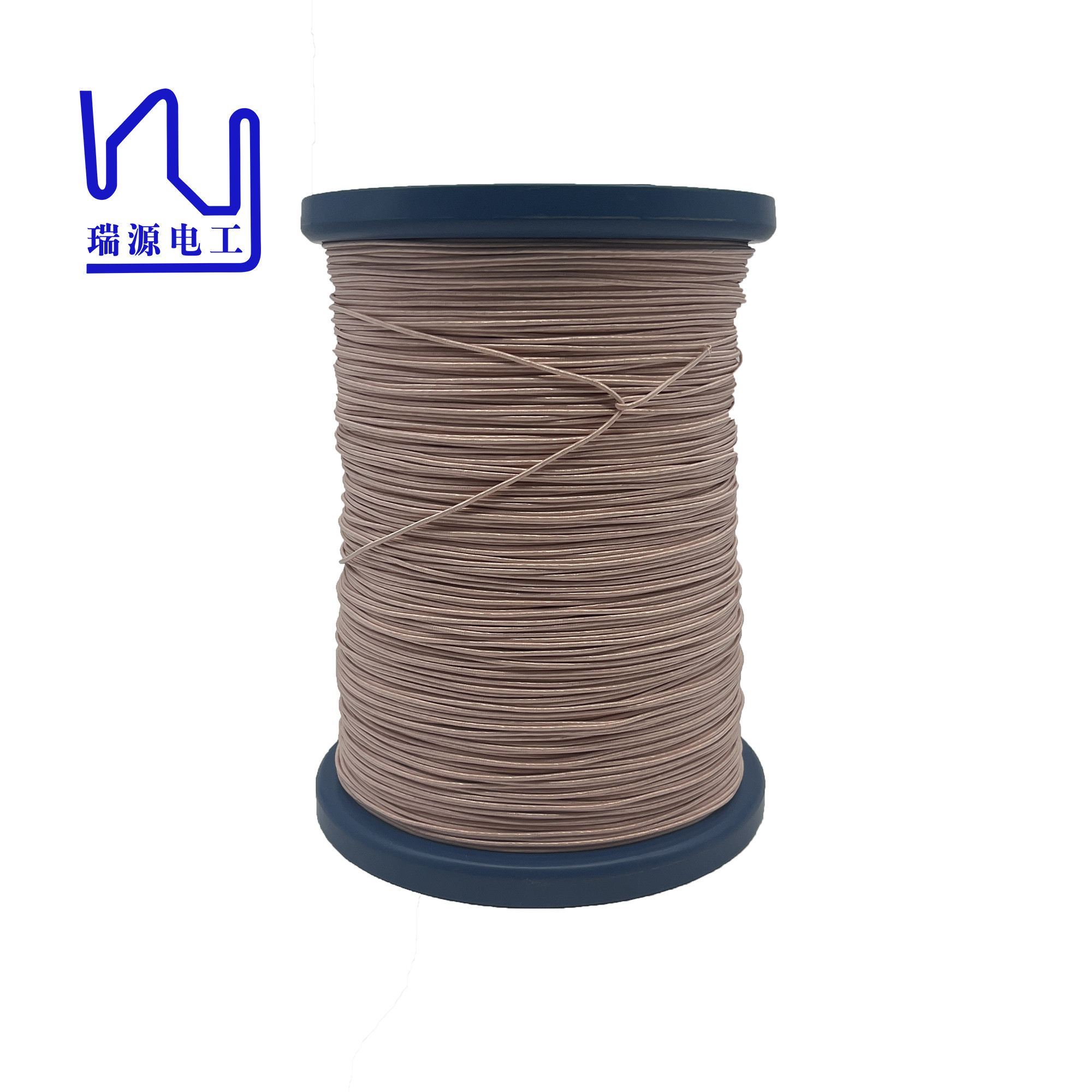

Litz Wire 155 / 38awg Nylon /Polyester Served Copper Litz Wire
As a manufacturer of high frequency litz wire, we are committed to providing our customers with the highest quality litz wire.
We can produce many types of high frequency litz wire, including enamelled copper stranded wire, silk covered litz wire, taped litz wire andprofiled litz wire.
|
Product name:Litz Wire 155 / 38awg Nylon /Polyester Served Copper Litz Wire |
||
|
Key word:Litz Wire 155 / 38awg Nylon /Polyester Served Copper Litz Wire |
||
|
Description |
2USTC- F |
|
|
Single wire
|
Conductor diameter(mm) |
0. 100 |
|
Conductor diameter tolerance (mm) |
±0.003 |
|
|
Minimal insulation thickness(mm) |
0 .005 |
|
|
Maximal overall diameter (mm) |
0 . 125 |
|
|
Thermal Class(℃) |
155 |
|
|
|
Strand number |
155 |
|
Pitch(mm) |
29± 5 |
|
|
Stranding direction |
S |
|
|
|
Category |
Nylon |
|
Material specs(mm*mm or D) |
300 |
|
|
Times of Wrapping |
1 |
|
|
Overlap(%) or thickness(mm),mini |
0.02 |
|
|
Wrapping direction |
S |
|
|
|
Max O. D (mm) |
1.74 |
|
Max pin holes 个/6m |
50 |
|
|
Max resistance (Ω/Km at20℃) |
15.36 |
|
|
Mini breakdown voltage (V ) |
1100 |
|
|
Package |
Spool |
PT- 10 |
