| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | UDTC155 70/0.1mm Nylon Served Copper Litz Wire Polyester Stranded Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | UDTC155 70/0.1mm Nylon Served Copper Litz Wire Polyester Stranded Wire |
| No. Of Strands: | 70 | ||
| Highlight: | udtc copper litz wire,70 strands copper litz wire,0.1 mm litz magnet wire |
||

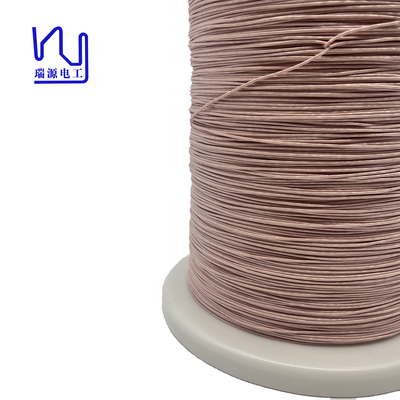

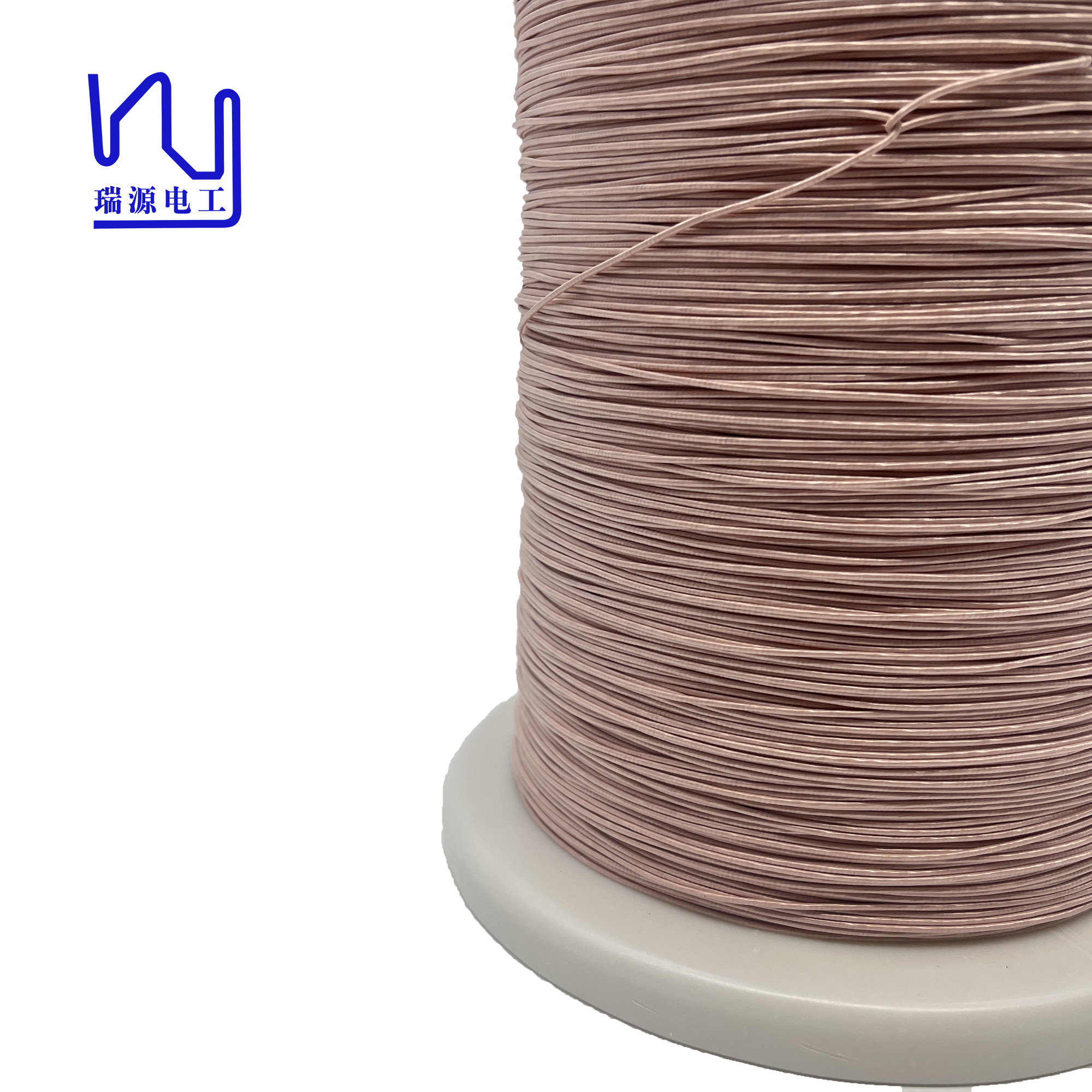

UDTC155 70/0.1mm Nylon Served Copper Litz Wire Polyester Stranded Wire
Nylon served copper Litz wire is a high-frequency Litz wire, which is widely used in transformer and motor manufacturing, information transmission, voice coil winding, aerospace, new energy vehicles and other industries.
| Product name: UDTC155 70/0.1mm Nylon Served Copper Litz Wire Polyester Stranded Wire | ||
|
Description Conductor diameter*Strand number |
2USTC- F 0. 10*70 |
|
|
Single wire
|
Conductor diameter(mm) | 0. 100 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0 .005 | |
| Maximal overall diameter (mm) | 0 . 125 | |
| Thermal Class(℃) | 155 | |
|
Strand Composition
|
Strand number | 70 |
| Pitch(mm) | 27± 3 | |
| Stranding direction | S | |
|
Insulation layer
|
Category | Nylon |
| Material specs(mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics
|
Max O. D (mm) | 1.20 |
| Max pin holes 个/6m | 40 | |
| Max resistance (Ω/Km at20℃) | 34.01 | |
| Mini breakdown voltage (V ) | 1100 | |
| Key word | UDTC155 70/0.1mm Nylon Served Copper Litz Wire Polyester Stranded Wire | |
