| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom 155/ 180 0.4mm X 120 Strands Polyesterimide Film Taped Copper Litz W | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | Custom 155/ 180 0.4mm X 120 Strands Polyesterimide Film Taped Copper Litz W |
| No. Of Strands: | 120 | ||
| Highlight: | 120 strands copper litz wire,0.4mm copper litz wire,custom 0.4 mm copper wire |
||

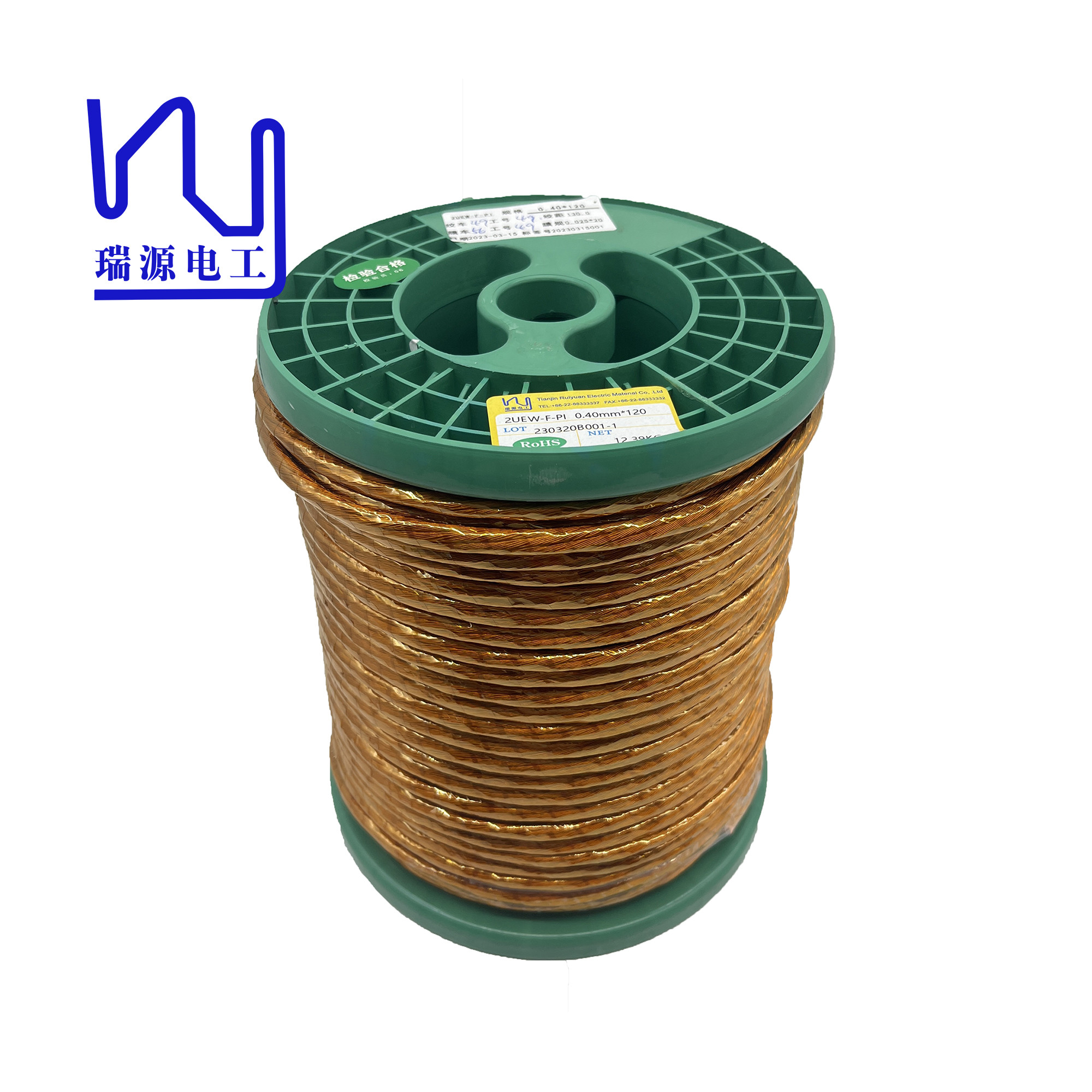

Custom 155/ 180 0.4mm x 120 Strands polyesterimide film taped copper litz wire
Taped Litz wire is also useful in the automotive field and is an important part of automotive electronic systems. The temperature resistance and electrical insulation properties of taped Litz wire make it ideal for automotive electrical safety and performance stability.
With the continuous development of automotive electronic systems, the requirements for electrical insulating materials will become higher and higher, and the taped Litz wire will also have a bright future. In the aerospace field, polyester imide film (PI fim) is also a very important material.
| Test report for litz wire served with tape Spec: 2UEW-F-PI 0.4mm*120 | ||
| Characteristics | Technical requests | Test Results |
| Outer diameter of single wire(mm) | 0.422-0.439 | 0.428-0.433 |
| Conductor diameter(mm) | 0.40±0.005 | 0.397-0.400 |
| Overall dimension(mm) | Max. 6.45 | 5.56-6.17 |
| No. Of strands | 120 | 120 |
| Pitch(mm) | 130±20 | 130 |
| Maximum Resistance(Ω/m 20℃) | 0.001181 | 0.001110 |
| Dielectric strength(V) | Min.6000 | 12000 |
| Tape(overlap %) | Min.50 | 54 |
|
Name |
Custom 155/ 180 0.4mm x 120 Strands polyesterimide film taped copper litz wire |
|
Key word |
Mylar litz wire |
|
Insulation |
Enamel |
|
Thermal rating |
155 degree |
|
Diameter of the enameled copper wire |
0.4mm |
|
Number of strands |
120 |
|
Type |
Custom 155/ 180 0.4mm x 120 Strands polyesterimide film taped copper litz wire |
