| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom Class 155/180 Taped Litz Wire 0.2mm 0.3mm 0.4mm PI Film Taped Litz Wire For Motor | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | Custom Class 155/180 Taped Litz Wire 0.2mm 0.3mm 0.4mm PI Film Taped Litz Wire For Motor |
| No. Of Strands: | 120 | ||
| Highlight: | pi film taped litz magnet wire,0.3mm litz magnet wire,motor 0.2 mm enamelled copper wire |
||

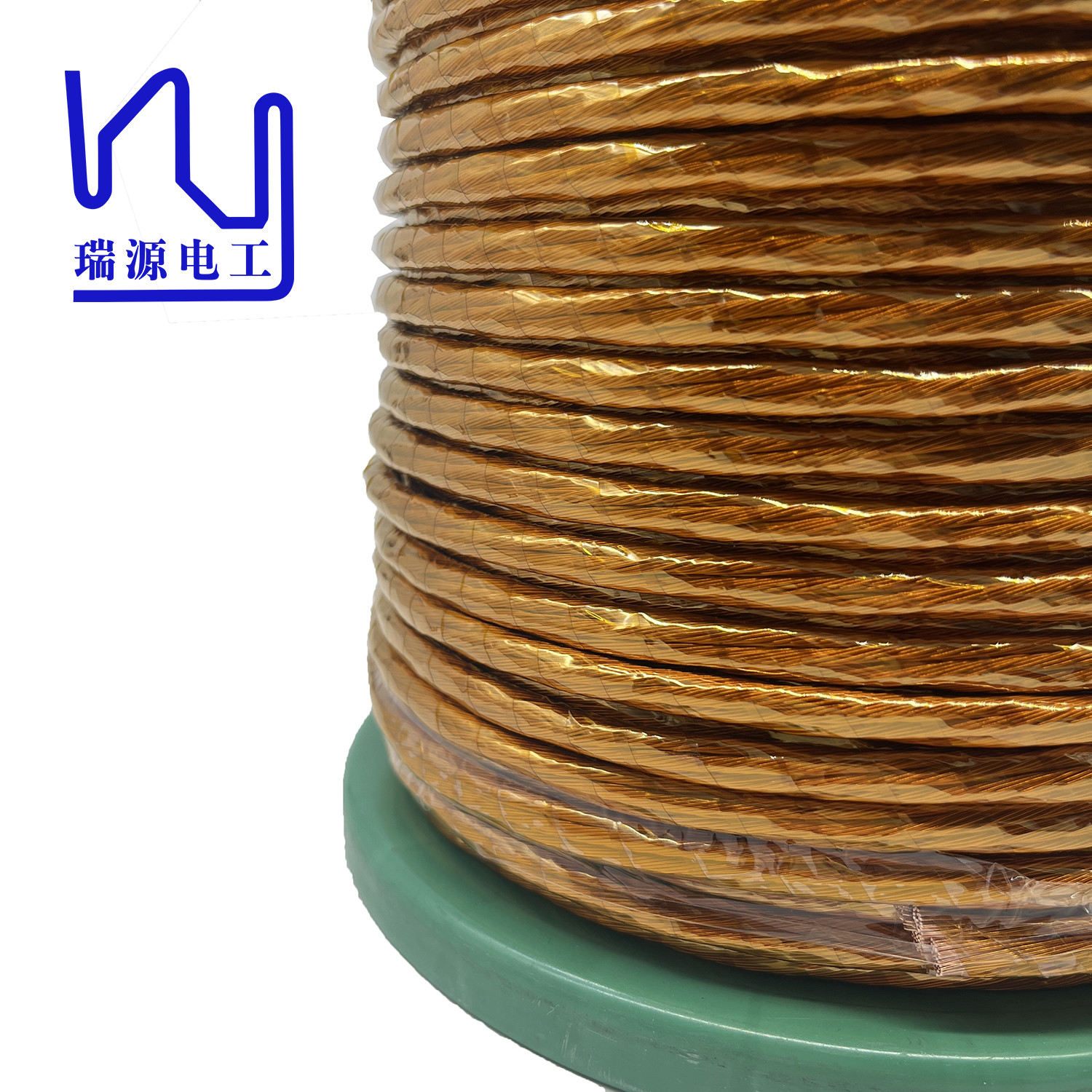

Custom class 155/180 taped litz wire 0.2mm 0.3mm 0.4mm PI film taped litz wire for motor
Applying the Taped Litz wire to the manufacture of transformers can significantly improve the energy efficiency of the transformer, reduce power loss and prolong the service life of the equipment. Taped Litz wire is used as the insulation material of motors and motors, which can improve the output power and efficiency of the system, help electrical equipment avoid losses caused by problems such as arcing, and ensure safe and efficient operation of equipment.
| Test report for litz wire served with tape Spec: 2UEW-F-PI 0.4mm*120 | ||
| Characteristics | Technical requests | Test Results |
| Outer diameter of single wire(mm) | 0.422-0.439 | 0.428-0.433 |
| Conductor diameter(mm) | 0.40±0.005 | 0.397-0.400 |
| Overall dimension(mm) | Max. 6.45 | 5.56-6.17 |
| No. Of strands | 120 | 120 |
| Pitch(mm) | 130±20 | 130 |
| Maximum Resistance(Ω/m 20℃) | 0.001181 | 0.001110 |
| Dielectric strength(V) | Min.6000 | 12000 |
| Tape(overlap %) | Min.50 | 54 |
|
Name |
Custom class 155/180 taped litz wire 0.2mm 0.3mm 0.4mm PI film taped litz wire for motor |
|
Key word |
Mylar litz wire |
|
Insulation |
Enamel |
|
Thermal rating |
155 degree |
|
Diameter of the enameled copper wire |
0.4mm |
|
Number of strands |
120 |
|
Type |
Custom class 155/180 taped litz wire 0.2mm 0.3mm 0.4mm PI film taped litz wire for motor |
