| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.40m*60 Strands Temperature 155 PI Mylar Film Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | 0.40m*60 Strands Temperature 155 PI Mylar Film Copper Litz Wire |
| No. Of Strands: | 60 | ||
| Highlight: | 60 strands enamel covered wire,0.4 mm enamel covered wire,pi 0.4 mm copper wire |
||

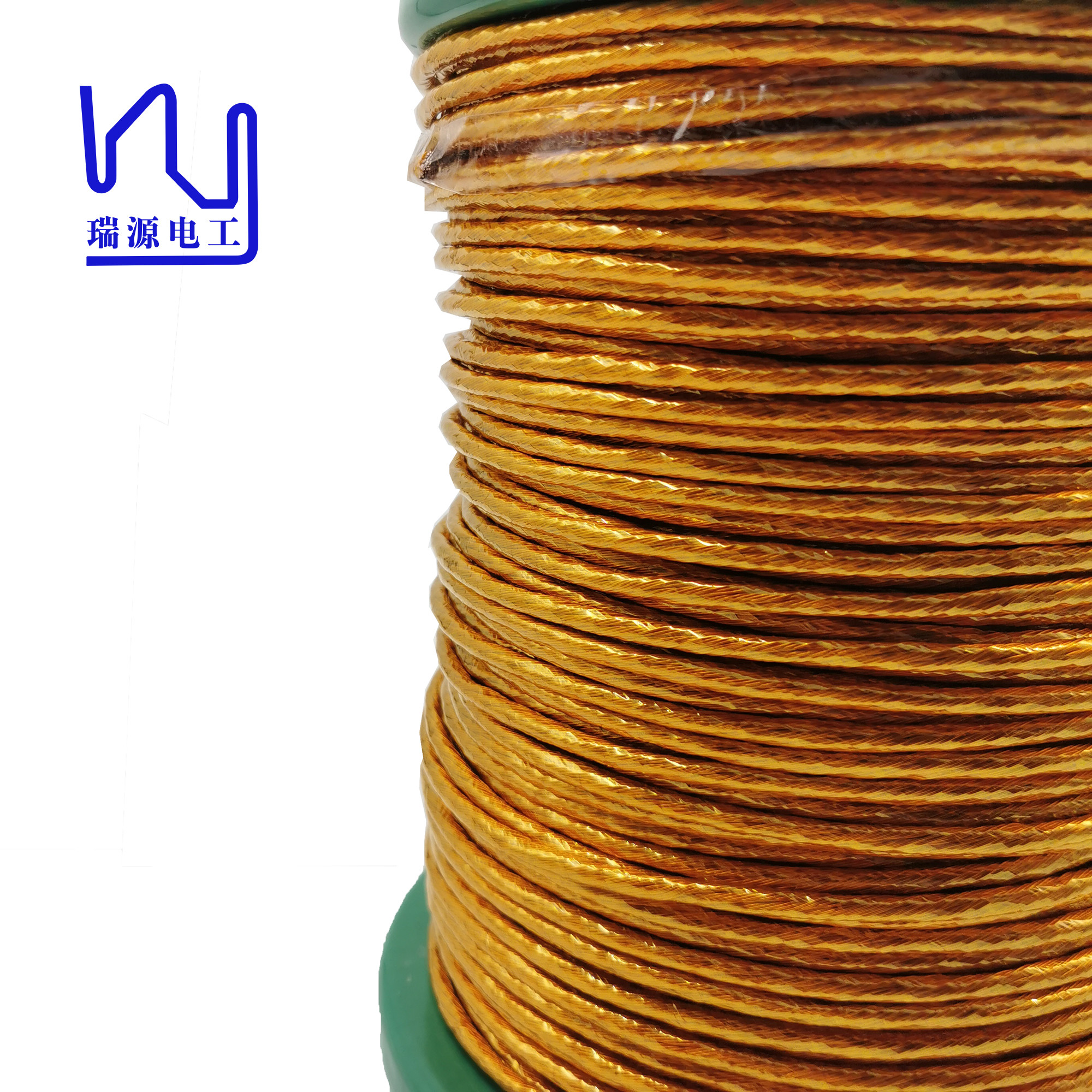

0.40m*60 Strands Temperature 155 PI Mylar Film Copper Litz Wire
In aerospace, automobile manufacturing, oil and gas exploration and other fields, PI film covered wire is very useful.
In addition, it can also be used in the connection between components and equipment to reduce noise and improve signal quality.
|
Test report for litz wire served with tape Spec: 2UEW-F-PI 0.4mm*60 |
||
|
Characteristics |
Technical requests |
Test Results |
|
Outer diameter of single wire(mm) |
0.422-0.439 |
0.428-0.438 |
|
Conductor diameter(mm) |
0.40±0.005 |
0.397-0.399 |
|
Overall dimension(mm) |
Min.4.74 |
4.21-4.51 |
|
No. Of strands |
60 |
60 |
|
Pitch(mm) |
47±3 |
√ |
|
Maximum Resistance(Ω/m 20℃) |
0.002415 |
0.00227 |
|
Dielectric strength(V) |
Min.6000 |
13500 |
|
Tape(overlap %) |
Min.50 |
53 |
|
Name |
0.40m*60 Strands Temperature 155 PI Mylar Film Copper Litz Wire |
|
Key word |
Mylar litz wire |
|
Insulation |
Enamel |
|
Thermal rating |
155 degree |
|
Diameter of the enameled copper wire |
0.4mm |
|
Number of strands |
60 |
|
Type |
0.40m*60 Strands Temperature 155 PI Mylar Film Copper Litz Wire |
