| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom 0.04mm-1mm PI/PET Film Mylar High Frequency Litz Wire For Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | Custom 0.04mm-1mm PI/PET Film Mylar High Frequency Litz Wire For Transformer |
| No. Of Strands: | 60 | ||
| Highlight: | 1 mm copper litz wire,0.04 mm high frequency litz wire,transformer high frequency litz wire |
||

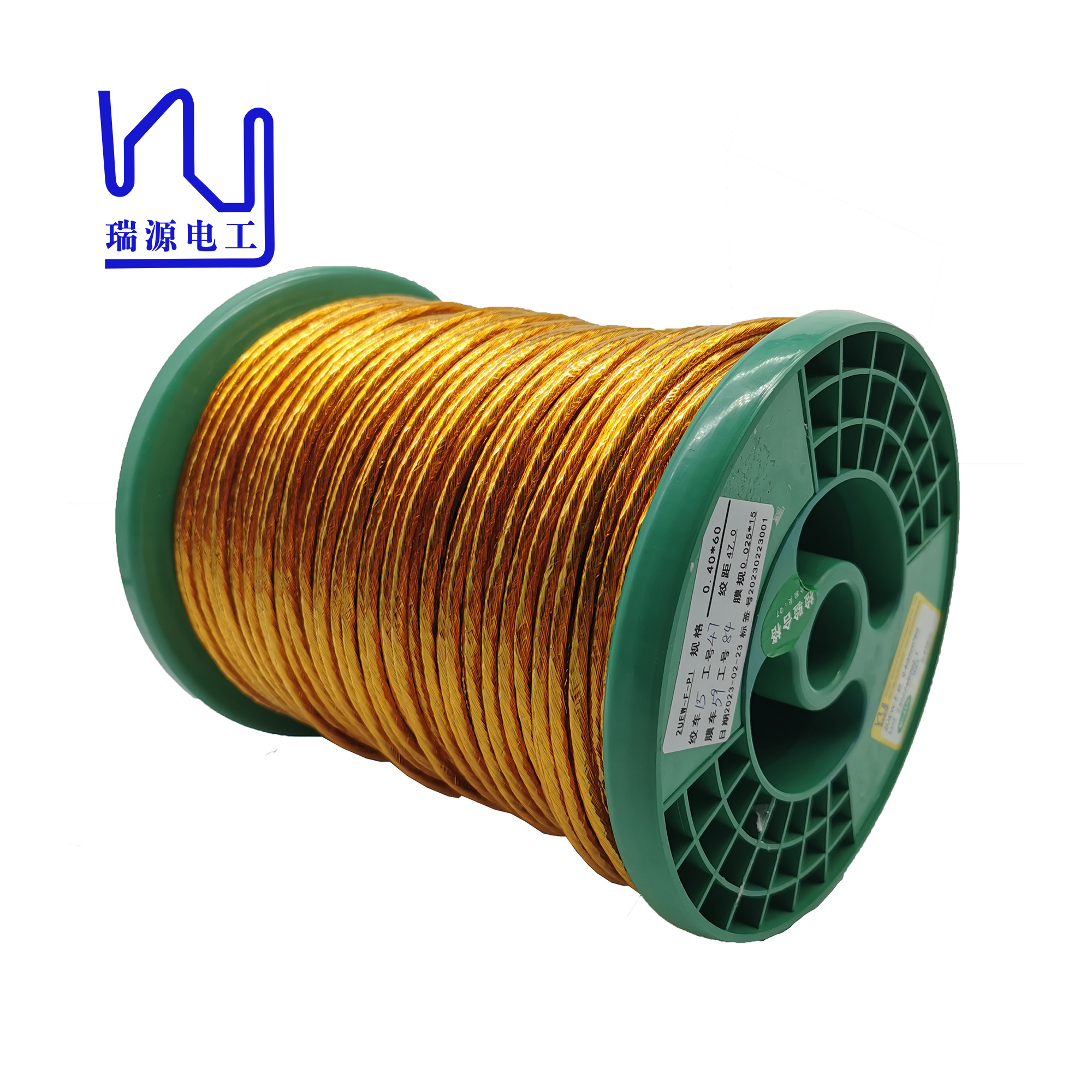

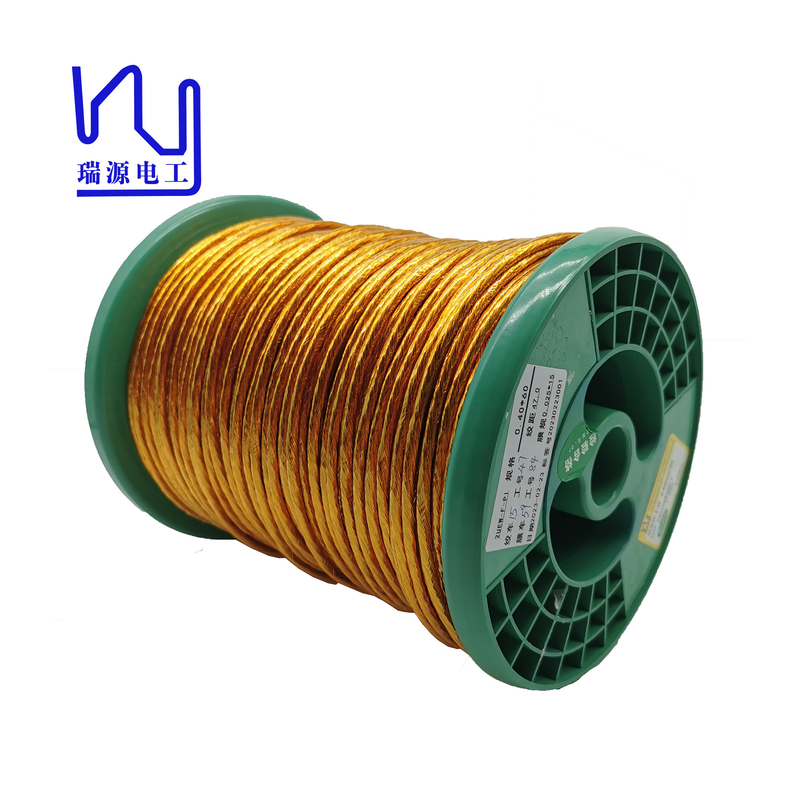

Custom 0.04mm-1mm PI/PET Film Mylar High Frequency Litz Wire for Transformer
Taped litz Litz wire has a wide range of uses and is especially suitable for use in electronic equipment operating in high temperature, high pressure and chemical environments.
In aerospace, automobile manufacturing, oil and gas exploration and other fields, PI film covered wire is very useful.
|
Test report for litz wire served with tape Spec: 2UEW-F-PI 0.4mm*60 |
||
|
Characteristics |
Technical requests |
Test Results |
|
Outer diameter of single wire(mm) |
0.422-0.439 |
0.428-0.438 |
|
Conductor diameter(mm) |
0.40±0.005 |
0.397-0.399 |
|
Overall dimension(mm) |
Min.4.74 |
4.21-4.51 |
|
No. Of strands |
60 |
60 |
|
Pitch(mm) |
47±3 |
√ |
|
Maximum Resistance(Ω/m 20℃) |
0.002415 |
0.00227 |
|
Dielectric strength(V) |
Min.6000 |
13500 |
|
Tape(overlap %) |
Min.50 |
53 |
|
Name |
Custom 0.04mm-1mm PI/PET Film Mylar High Frequency Litz Wire for Transformer |
|
Key word |
Mylar litz wire |
|
Insulation |
Enamel |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.4mm |
|
Number of strands |
60 |
|
Type |
Custom 0.04mm-1mm PI/PET Film Mylar High Frequency Litz Wire for Transformer |
