| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Electrical Vehicle Use 2UEW-F-PI 0.40*60 High Breakdown Voltage Taped Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | Electrical Vehicle Use 2UEW-F-PI 0.40*60 High Breakdown Voltage Taped Litz Wire |
| No. Of Strands: | 60 | ||
| Highlight: | electric vehicle use copper litz wire,2uew copper litz wire,electric vehicle 0.4 mm copper wire |
||

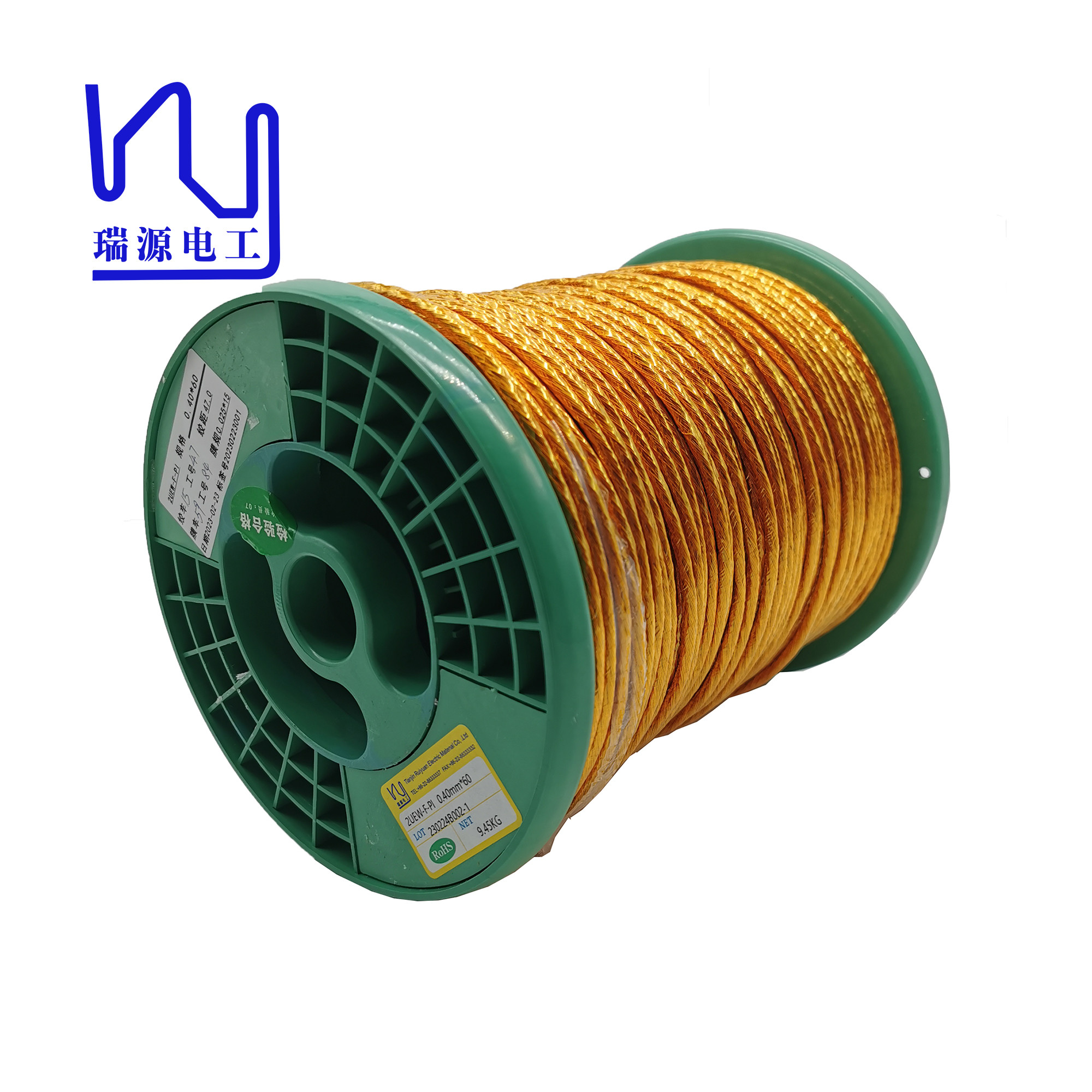

Electrical Vehicle Use 2UEW-F-PI 0.40*60 High Breakdown Voltage Taped Litz Wire
The advantage of PI film is high stability. In high temperature and chemically corrosive environments, the signal transmission is reliable and not easily affected by external interference.
In addition, PI film makes the circuit have better flexibility. Even if bent or rotated, it will not be damaged or affected. In terms of manufacturing process, PI film is highly viscous and can effectively bond the materials of wires and cables, thereby improving the efficiency of industrial manufacturing.
Test report for litz wire served with tape Spec: 2UEW-F-PI 0.4mm*60 | ||
Characteristics | Technical requests | Test Results |
Outer diameter of single wire(mm) | 0.422-0.439 | 0.428-0.438 |
Conductor diameter(mm) | 0.40±0.005 | 0.397-0.399 |
Overall dimension(mm) | Min.4.74 | 4.21-4.51 |
No. Of strands | 60 | 60 |
Pitch(mm) | 47±3 | √ |
Maximum Resistance(Ω/m 20℃) | 0.002415 | 0.00227 |
Dielectric strength(V) | Min.6000 | 13500 |
Tape(overlap %) | Min.50 | 53 |
Name | Electrical Vehicle Use 2UEW-F-PI 0.40*60 High Breakdown Voltage Taped Litz Wire |
Key word | Mylar litz wire |
Insulationh | Enamel, polyster cover |
Thermal rating | 155degree |
Diameter of the enameled copper wire | 0.4mm |
Number of strands | 60 |
Type | Electrical Vehicle Use 2UEW-F-PI 0.40*60 High Breakdown Voltage Taped Litz Wire |
