| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom Super Thin 0.05mm High Voltage PI Film Taped Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 180 | Key Word: | Custom Super Thin 0.05mm High Voltage PI Film Taped Copper Litz Wire |
| No. Of Strands: | 1740 | ||
| Highlight: | super thin copper litz wire,copper litz wire 0.05 mm,super thin 0.05 mm copper wire |
||

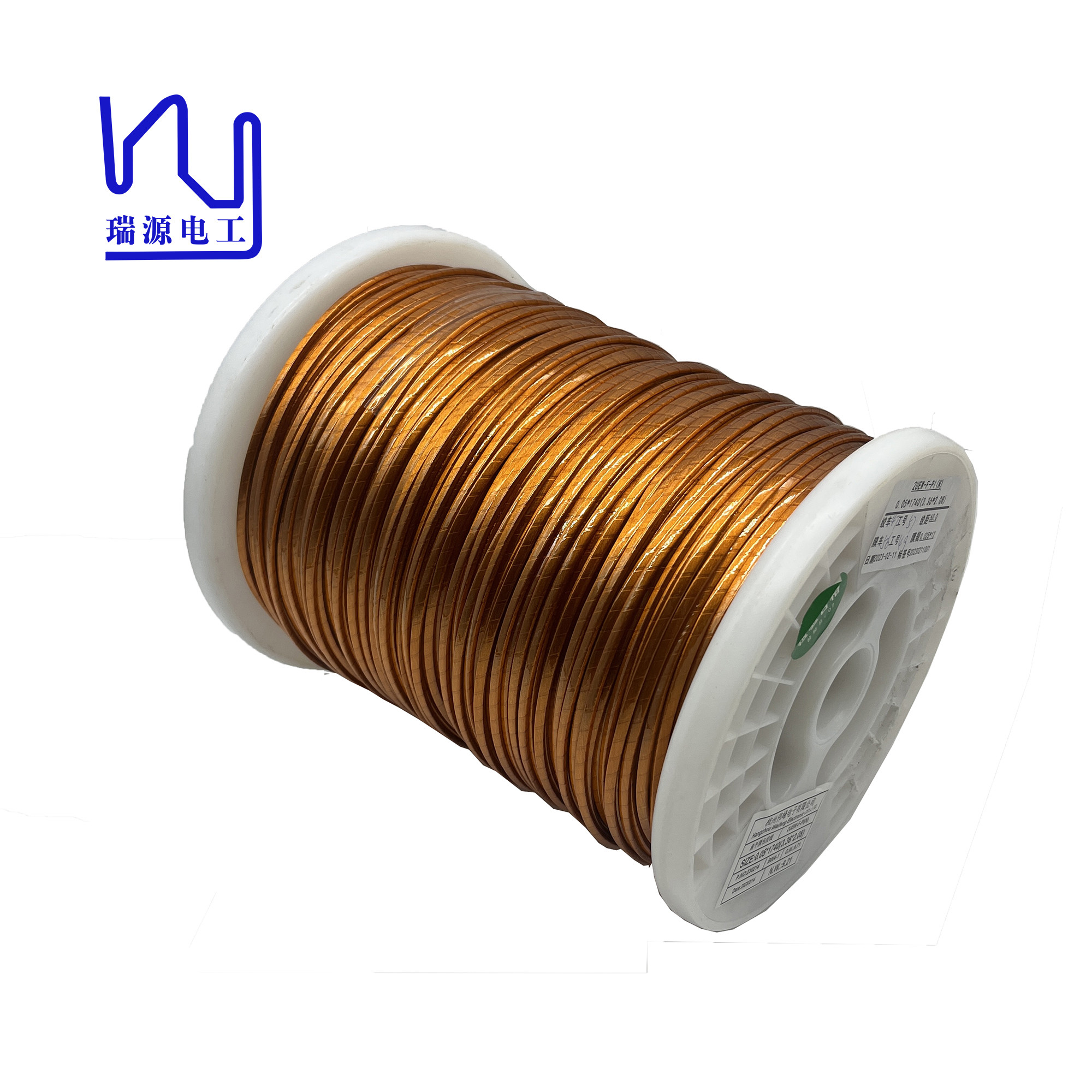

Custom super thin 0.05mm high voltage PI film taped copper litz wire
Film-covered wire is a wire material commonly used in electronic products. Its interior is enamelled copper stranded wire, and the outer layer is wrapped with PI film or PET film.
This wire is mainly designed to meet the requirements of modern electronic products for miniaturization, high performance, and high reliability. It is widely used in communications, computers, mobile phones, tablet computers, digital products and other fields.
The biggest feature of film-covered wire is "high precision, stable quality, and long service life", and these advantages are exactly what electronic products need. At the same time, in high-frequency applications, the anti-interference performance of film-covered wires is also superior to other ordinary wires.
|
Characteristics |
Technical requests |
Test Results |
|
Outer diameter of single wire(mm) |
0.056-0.069 |
0.058-0.062 |
|
Conductor diameter(mm) |
0.05±0.003 |
0.048-0.050 |
|
Width(mm) |
3.3-3.48 |
|
|
Thickness(mm) |
2.14-2.26 |
|
|
No. Of strands |
1740 |
1740 |
|
Pitch(mm) |
60±3 |
√ |
|
Maximum Resistance(Ω/m 20℃) |
0.005885 |
0.005335 |
|
Dielectric strength(V) |
6000 |
13500 |
|
Solderability |
390±5℃, 12s |
√ |
|
Tape(overlap %) |
Min.50 |
54 |
|
Name |
Custom super thin 0.05mm high voltage PI film taped copper litz wire |
|
Key word |
Mylar litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.05mm |
|
Number of strands |
1740 |
|
Type |
Custom super thin 0.05mm high voltage PI film taped copper litz wire |
