| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom 960 Strands USTC Silk Covered Copper Litz Wire For Motor Winding | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom 960 Strands USTC Silk Covered Copper Litz Wire For Motor Winding |
| No. Of Strands: | 980 | ||
| Highlight: | 960 strands litz wire,litz wire for motor winding,custom ustc wire |
||

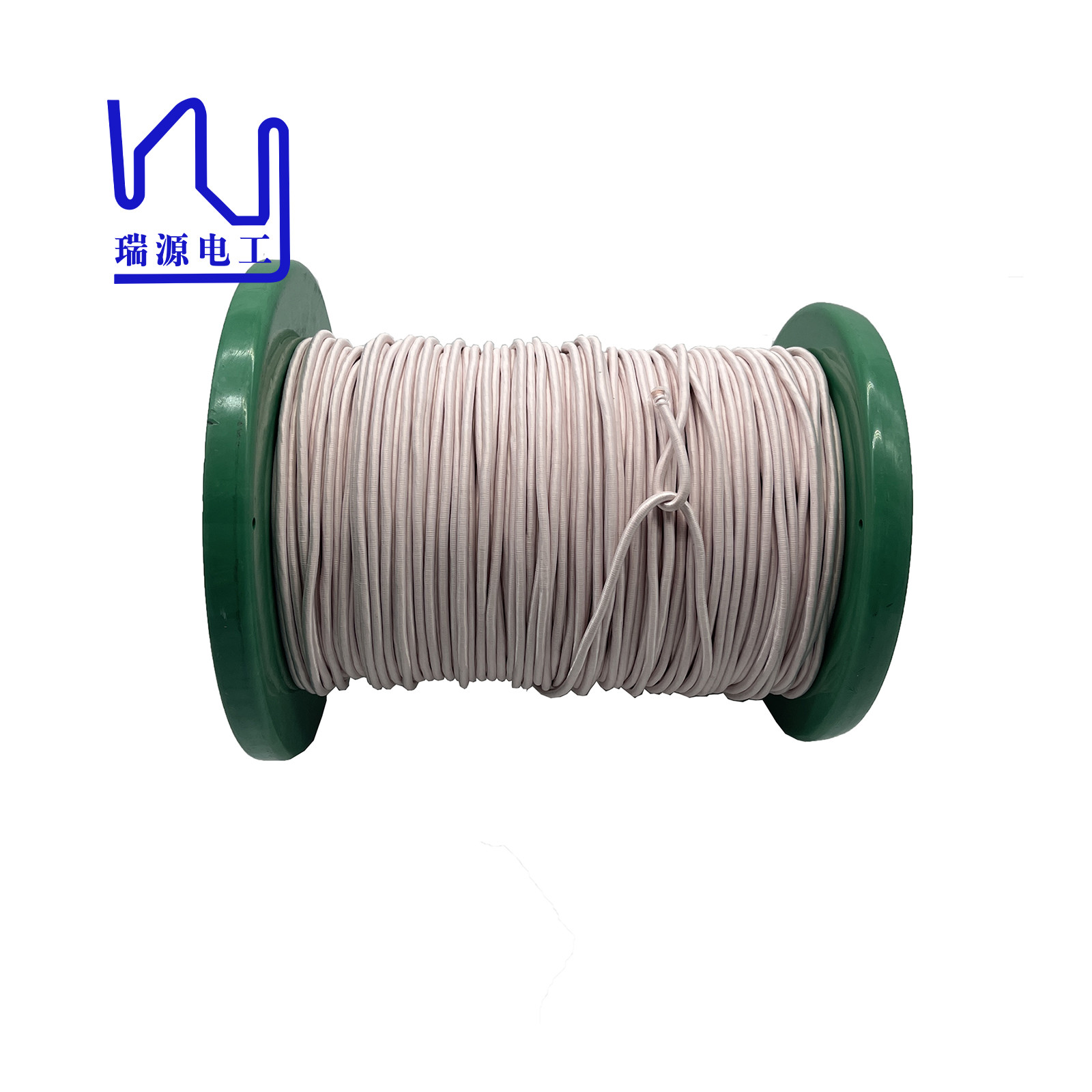

Custom 960 Strands USTC Silk Covered Copper Litz Wire for Motor Winding
In the field of automobile manufacturing: silk covered litz wires can be used as connecting wires for electronic equipment, and can also be used for signal transmission of various mechanical components;
In the field of medical equipment: The silk covered litz wire has good insulation performance and is suitable for the connection of various medical equipment.
|
Custom 960 Strands USTC Silk Covered Copper Litz Wire for Motor Winding |
||
|
Item |
Standard |
Test Result |
|
Outer diameter of single wire(mm) |
0.087-0.103 |
0.090-0.093 |
|
Conductor diameter(mm) |
0.08±0.003 |
0.078-0.08 |
|
Overall dimension(mm) |
Max.4.36 |
3.35-.3.57 |
|
Pitch(mm) |
40±3 |
√ |
|
Conductor Resistance (Ω/km at 20℃) |
Max.0.003932 |
0.00368 |
|
Breakdown Voltage(V) |
Min. 1100 |
2700 |
|
Pinhole(6m) |
Max. 124 |
45 |
|
Key word |
Custom 960 Strands USTC Silk Covered Copper Litz Wire for Motor Winding |
|
