| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom UDTC USTC H 0.08mm*960 Nylon Silk Served Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom UDTC USTC H 0.08mm*960 Nylon Silk Served Copper Litz Wire |
| No. Of Strands: | 980 | ||
| Highlight: | 960 strands ustc litz wire,ustc litz wire 0.08 mm,udtc litz wire winding |
||

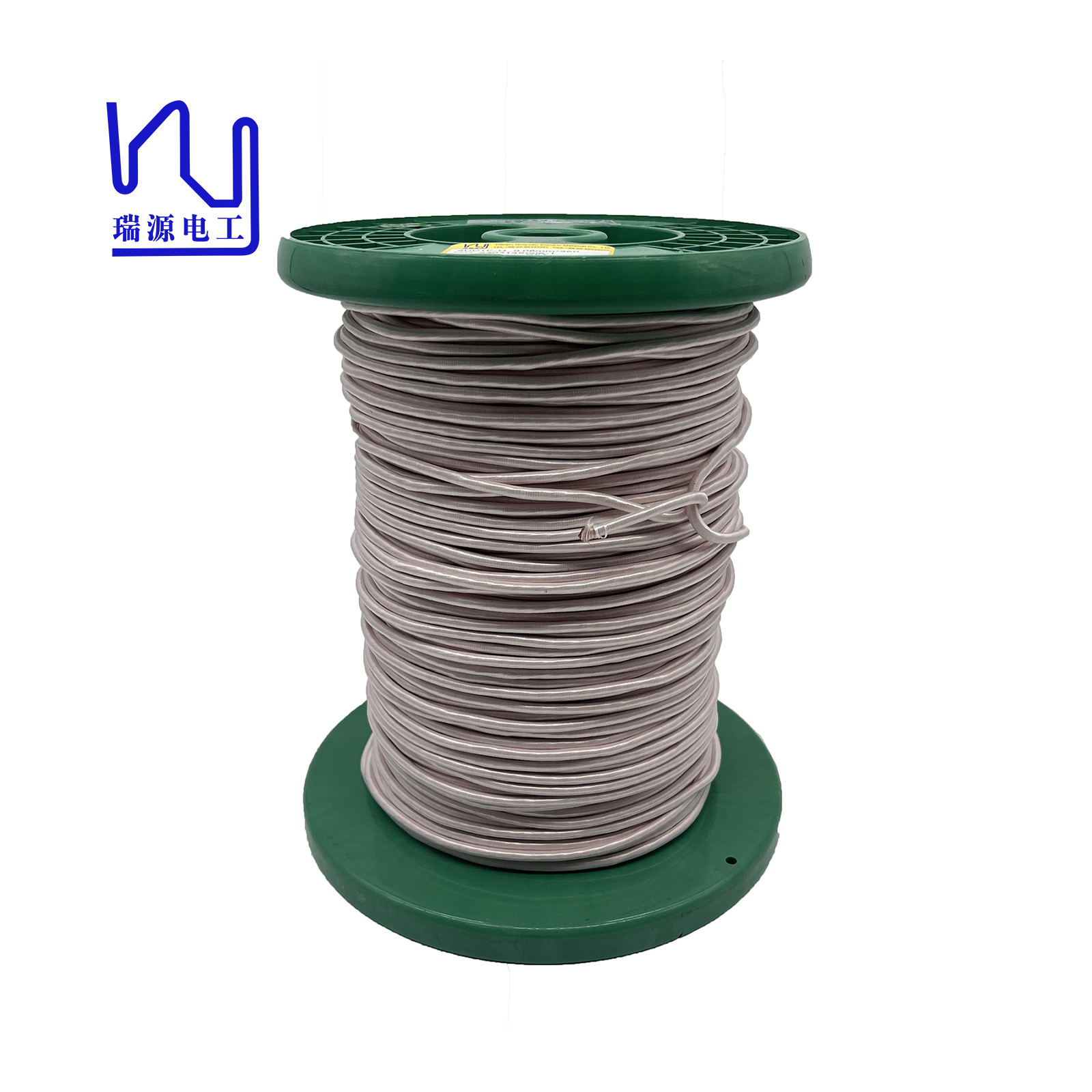

Custom UDTC USTC H 0.08mm*960 nylon silk served copper litz wire
We produce high quality silk covered litz wires, which are widely used in a wide range of fields and are deeply loved by customers. The single wire diameter of the silk covered litz wire is 0.08mm, and it’s wrapped with nylon yarn. At the same time, polyester or natural silk also can be used, but the price of natural silk is higher. Silk covered litz wire is very suitable for high temperature, high strength, wear resistance and other environments, and has excellent insulation performance and mechanical strength.
|
Custom UDTC USTC H 0.08mm*960 nylon silk served copper litz wire |
||
|
Item |
Standard |
Test Result |
|
Outer diameter of single wire(mm) |
0.087-0.103 |
0.090-0.093 |
|
Conductor diameter(mm) |
0.08±0.003 |
0.078-0.08 |
|
Overall dimension(mm) |
Max.4.36 |
3.35-.3.57 |
|
Pitch(mm) |
40±3 |
√ |
|
Conductor Resistance (Ω/km at 20℃) |
Max.0.003932 |
0.00368 |
|
Breakdown Voltage(V) |
Min. 1100 |
2700 |
|
Pinhole(6m) |
Max. 124 |
45 |
|
Key word |
Custom UDTC USTC H 0.08mm*960 nylon silk served copper litz wire |
|
